R01UH0823EJ0100 Rev.1.00 Page 1297 of 1823

Jul 31, 2019

RX23W Group 36. CAN Module (RSCAN)

36.11.3 Transmit History Buffer Reading Procedure

Transmit history data can be read from the THLACC0 register. The next data can be accessed by writing FFh to the

corresponding THLPCTR0 register after reading a set of data.

Figure 36.32 shows the transmit history buffer reading

procedure.

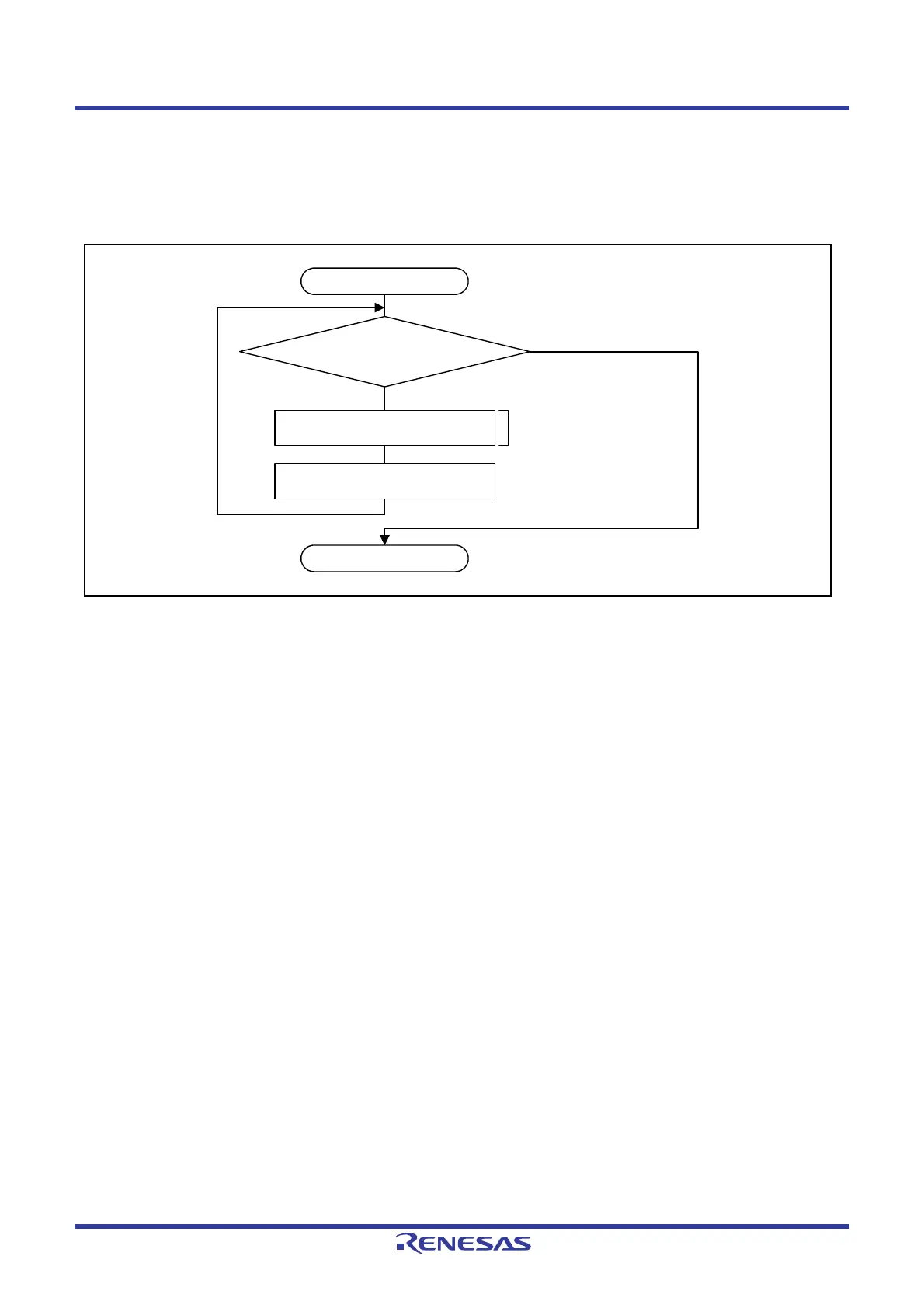

Figure 36.32 Transmit History Buffer Reading Procedure

Yes

Start

End

Is transmit history buffer empty?

(Is the THLSTS0.THLEMP flag 1?)

Read transmit history data form

the THLACC0 register.

Set the THLPCTR0 register to FFh.

Read data when the

GRWCR.RPAGE bit is 1.
