RX23W Group 42. Trusted Secure IP (TSIP-Lite)

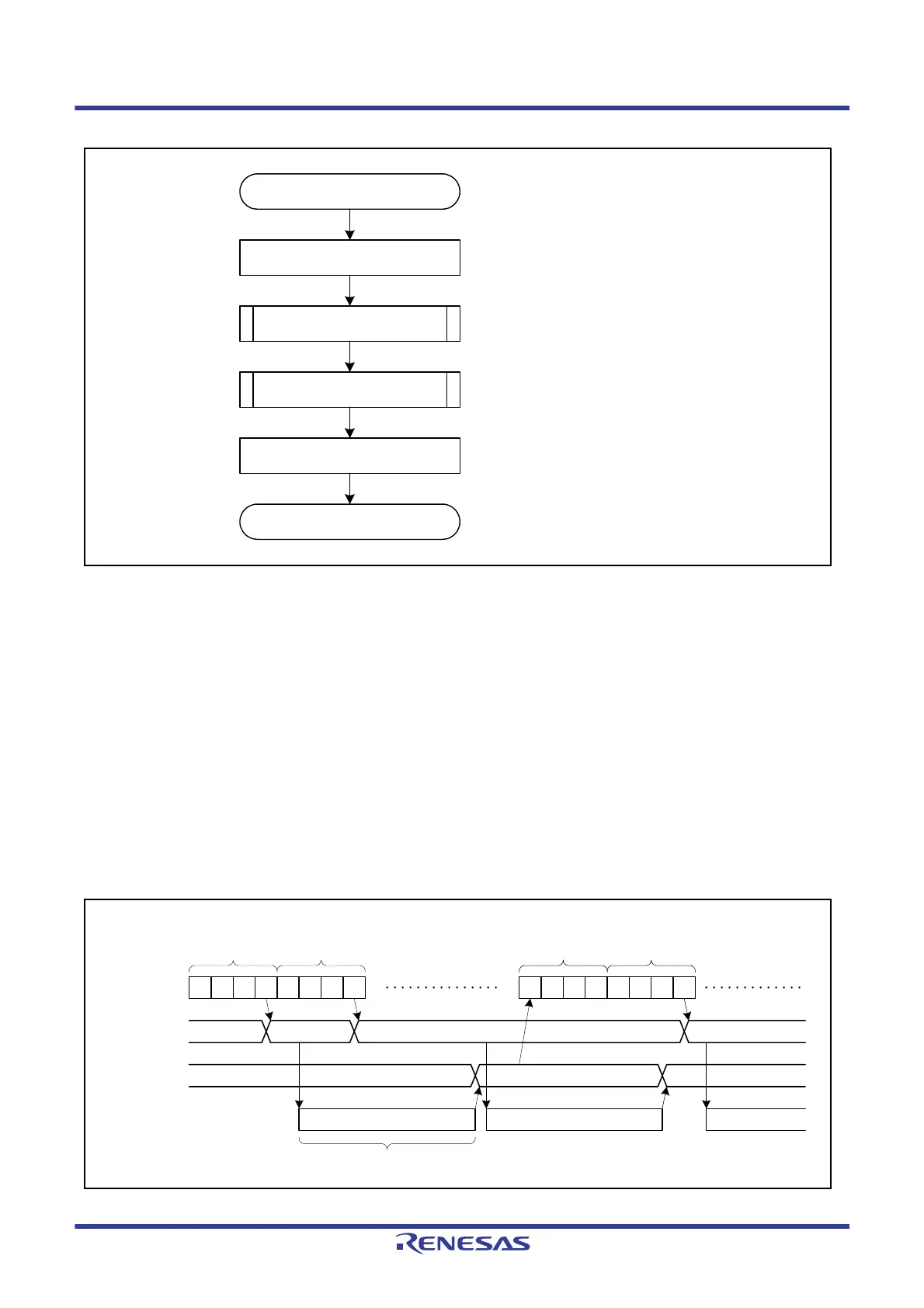

Figure 42.5 Key Installation Flow Chart
42.2.4 Encryption and Decryption
The procedures for encrypting and decrypting data are given below.
(1) Input the key generation information into the TSIP-Lite, and recover the key data.
(2) Input the data to encrypt or decrypt into the TSIP-Lite. This converts plaintext into ciphertext, and ciphertext into
plaintext.
(3) Read the converted data.
The encryption engine has an input buffer and an output buffer, enabling encryption/decryption to proceed in parallel
with data input/output.
Figure 42.6, Figure 42.7, and Figure 42.8 show the timing diagram, encryption flow, and decryption flow,
respectively.
Figure 42.6 Encryption and Decryption Timing Diagram
START
in encryption engine active mode
Decrypt the user key
Convert to user key generation
information
Output user key generation
information
Input the encrypted user key
TSIP-Lite library uses the unique ID and
a random number
END
in TSIP-Lite enabled mode
State of the
encryption engine
W1 W1 W1 W2 W2 W2 W2W1
Internal
peripheral bus
Input buffer
Encryption Encryption
R1 R1 R1 R1 W3 W3 W3 W3
Output buffer
Block-1
(32 bits × 4)
Block-2
(32 bits × 4)
Block-1
(32 bits × 4)
Block-3
(32 bits × 4)
W1 W2
R1
W3
R2
Encryption
To Next Page
