R01UH0823EJ0100 Rev.1.00 Page 1696 of 1823

Jul 31, 2019

RX23W Group 50. Flash Memory (FLASH)

50.7.4.4 Blank Check

Figure 50.18 and Figure 50.19 show the procedure to issue the blank check command.

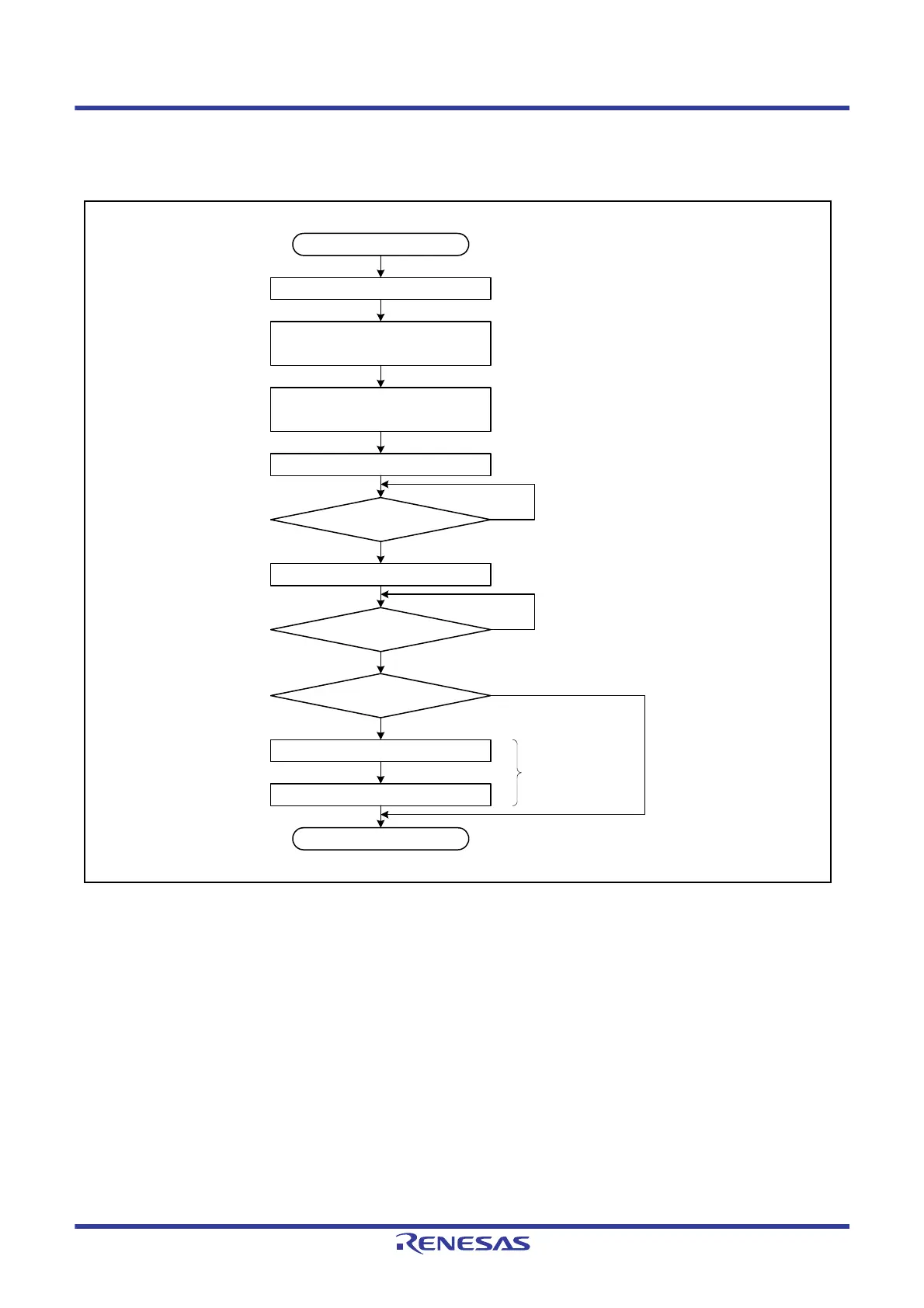

Figure 50.18 Procedure to Issue the Blank Check Command for the ROM

Set the blank check start address

in registers FSARH and FSARL

Set the blank check end address

in registers FEARH and FEARL

FCR register = 83h

FSTATR1.FRDY flag = 1?

Yes

FCR register = 00h

FSTATR1.FRDY flag = 0?

Yes

FSTATR0.ILGLERR flag = 1 or

FSTATR0.BCERR flag = 1?

Yes

FRESETR.FRESET bit = 1

FRESETR.FRESET bit = 0

End in ROM P/E mode

Sequencer

initialization

FASR.EXS bit = 0

Start in ROM P/E mode
