RX23W Group 39. CRC Calculator (CRC)
39. CRC Calculator (CRC)
The CRC (Cyclic Redundancy Check) calculator generates CRC codes.
39.1 Overview
Table 39.1 lists the specifications of the CRC calculator, and Figure 39.1 shows a block diagram of the CRC calculator.
Note 1. The circuit does not have a function to divide data for calculation into CRC calculation units. Write data in 8-bit units.

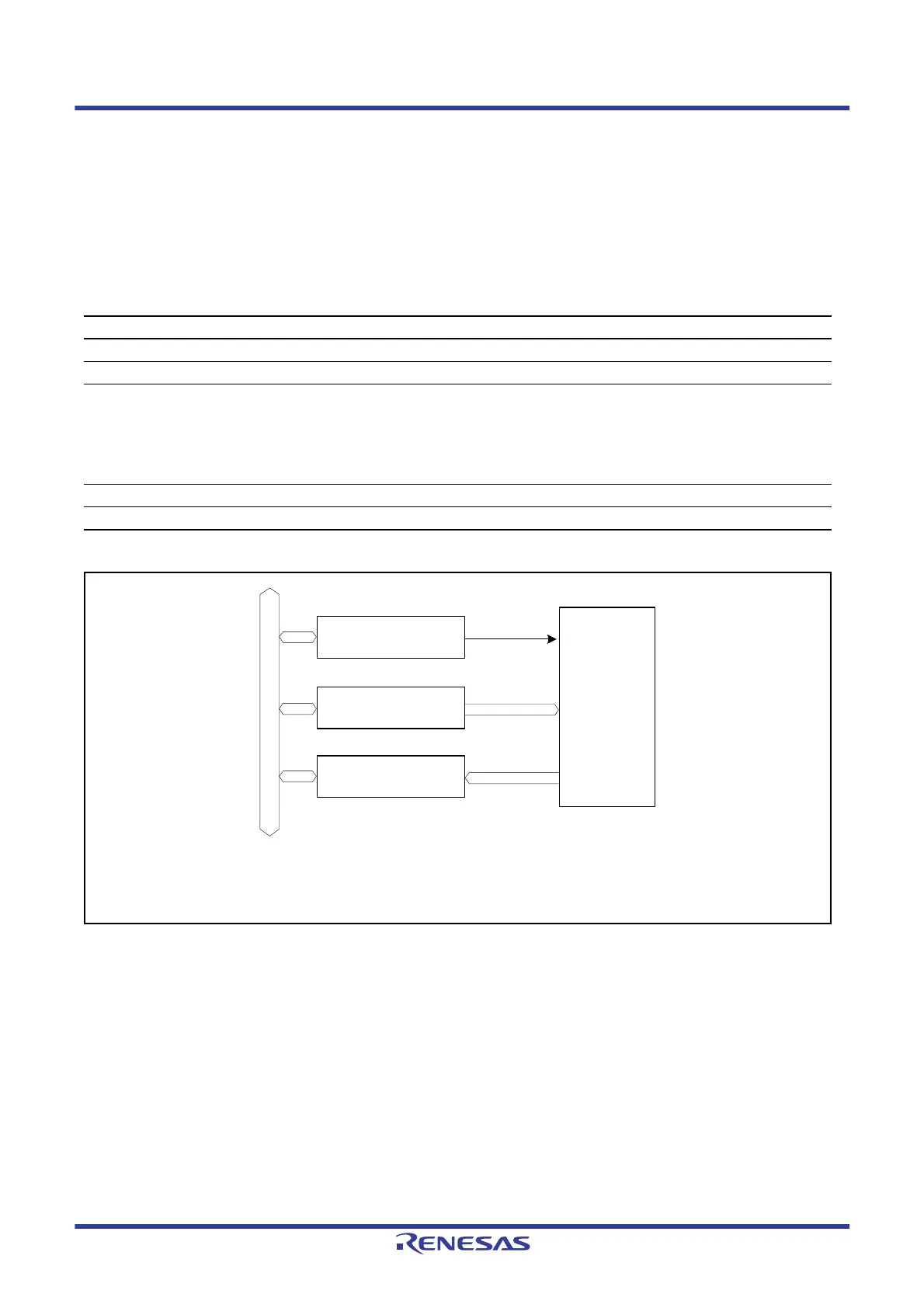

Figure 39.1 CRC Block Diagram
Table 39.1 CRC Specifications
Item Description
Data for CRC calculation*
1
CRC codes are generated for any desired data in 8n-bit units (where n is a whole number)
CRC processor unit 8-bit parallel processing
CRC generating polynomial One of three generating polynomials is selectable
 8-bit CRC
X
8
+ X
2
+ X + 1
 16-bit CRC
X
16
+ X
15
+ X
2
+ 1
X
16
+ X
12
+ X
5
+ 1
CRC calculation switching The bit order of CRC calculation results can be switched for LSB first or MSB first communication
Low power consumption function Module stop state can be set.
CRCCR
CRCDIR
CRCDOR
CRC code
generation
circuit
Control signal
CRCCR: CRC control register
CRCDIR: CRC data input register
CRCDOR: CRC data output register
Internal peripheral bus
