Renesas RX Series User Manual

R01UH0823EJ0100 Rev.1.00 Page 594 of 1823
Jul 31, 2019
RX23W Group 23. Multi-Function Timer Pulse Unit 2 (MTU2a)
23.5.2 Interrupt Signal Timing
(1) Timing for TGI Interrupt by Compare Match

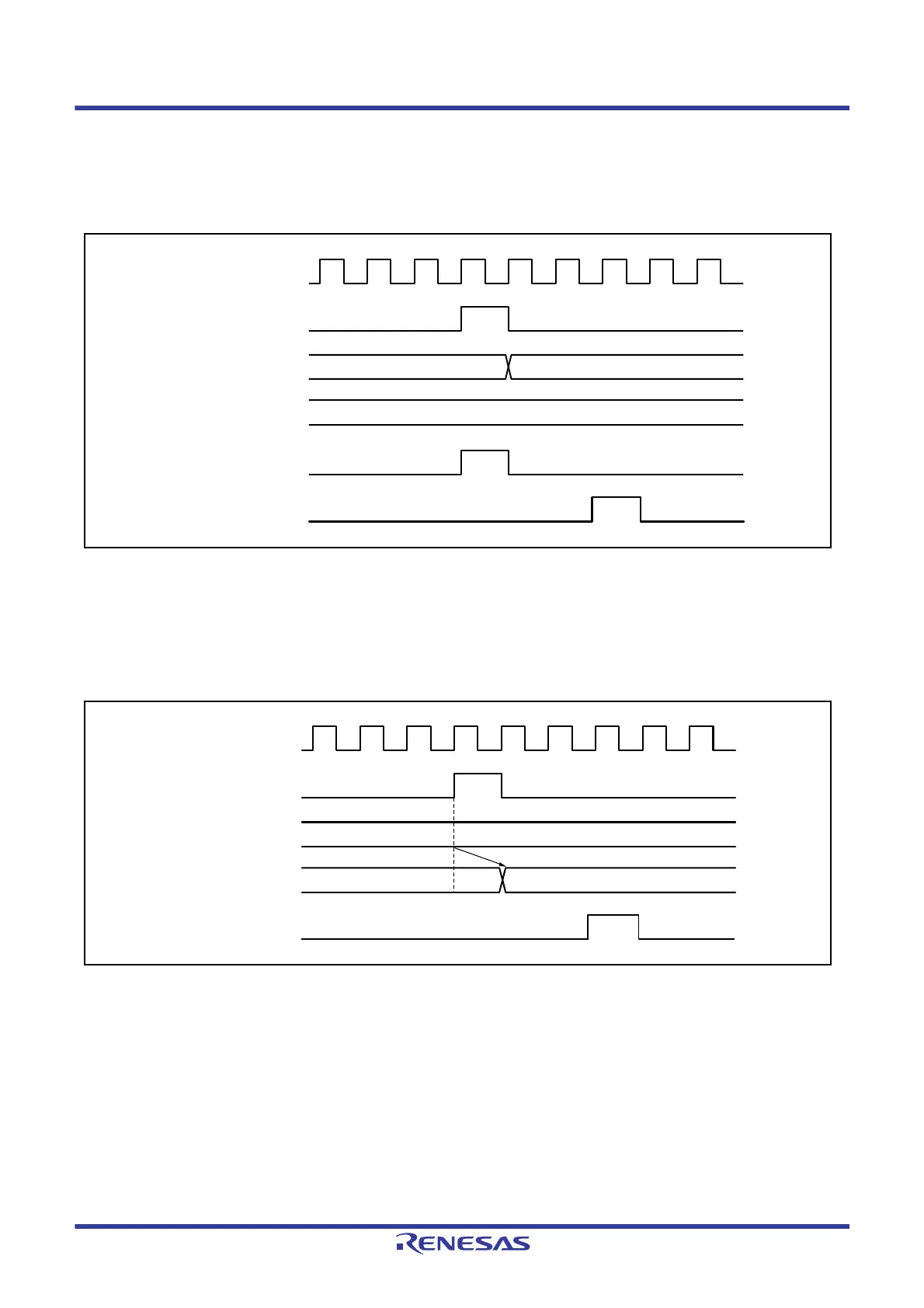

Figure 23.92 show the TGI interrupt request signal timing on compare match.
Figure 23.92 TGI Interrupt Timing (Compare Match) (MTU0 to MTU4)
(2) Timing for TGI Interrupt by Input Capture
Figure 23.93 show TGI interrupt request signal timing on input capture.
Figure 23.93 TGI Interrupt Timing (Input Capture) (MTU0 to MTU4)
TCNT
TGR
TCNT count clock
Compare match signal
PCLK
Interrupt signal
N
NN + 1
TCNT
TGR
Input capture signal
Interrupt signal
PCLK
N
N
n
