R01UH0823EJ0100 Rev.1.00 Page 1736 of 1823

Jul 31, 2019

RX23W Group 50. Flash Memory (FLASH)

50.11.6 Procedure to Erase the User Area and Data Area

Procedure to erase blocks that are programmed in the user area and data area to program a user program and data is as

follows.

(1) Send an erase preparation command (48h).

(2) Send a block erase command (59h).

(3) To place the MCU in the program/erase host command wait state, send a block erase command for ending the

erasure (59h 04h FFh FFh FFh FFh A7h).

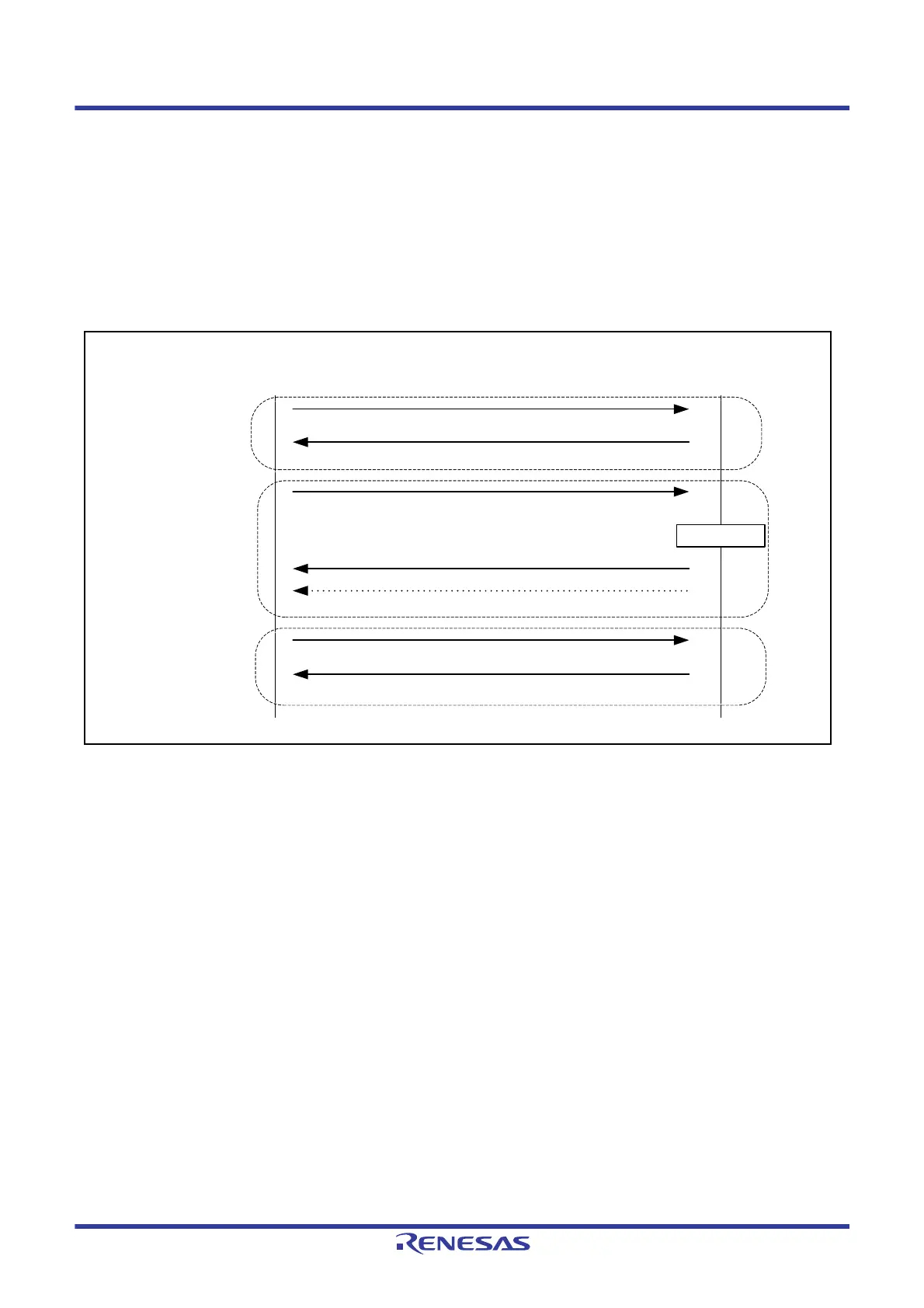

Figure 50.38 Procedure to Erase the User Area and Data Area

48h (erase preparation command)

06h (ACK)

D9h, XXh (error code)

06h (ACK)

Repeat until all blocks for

programming the user

program are erased.

59h (block erase command for end of erase)

06h (ACK)

59h (block erase command)

Serial

programmer

MCU

Erase

(2)

(1)

(3)
