RX23W Group 3. Operating Modes

3.4 Transitions of Operating Modes

3.4.1 Operating Mode Transitions Determined by the Mode-Setting Pins

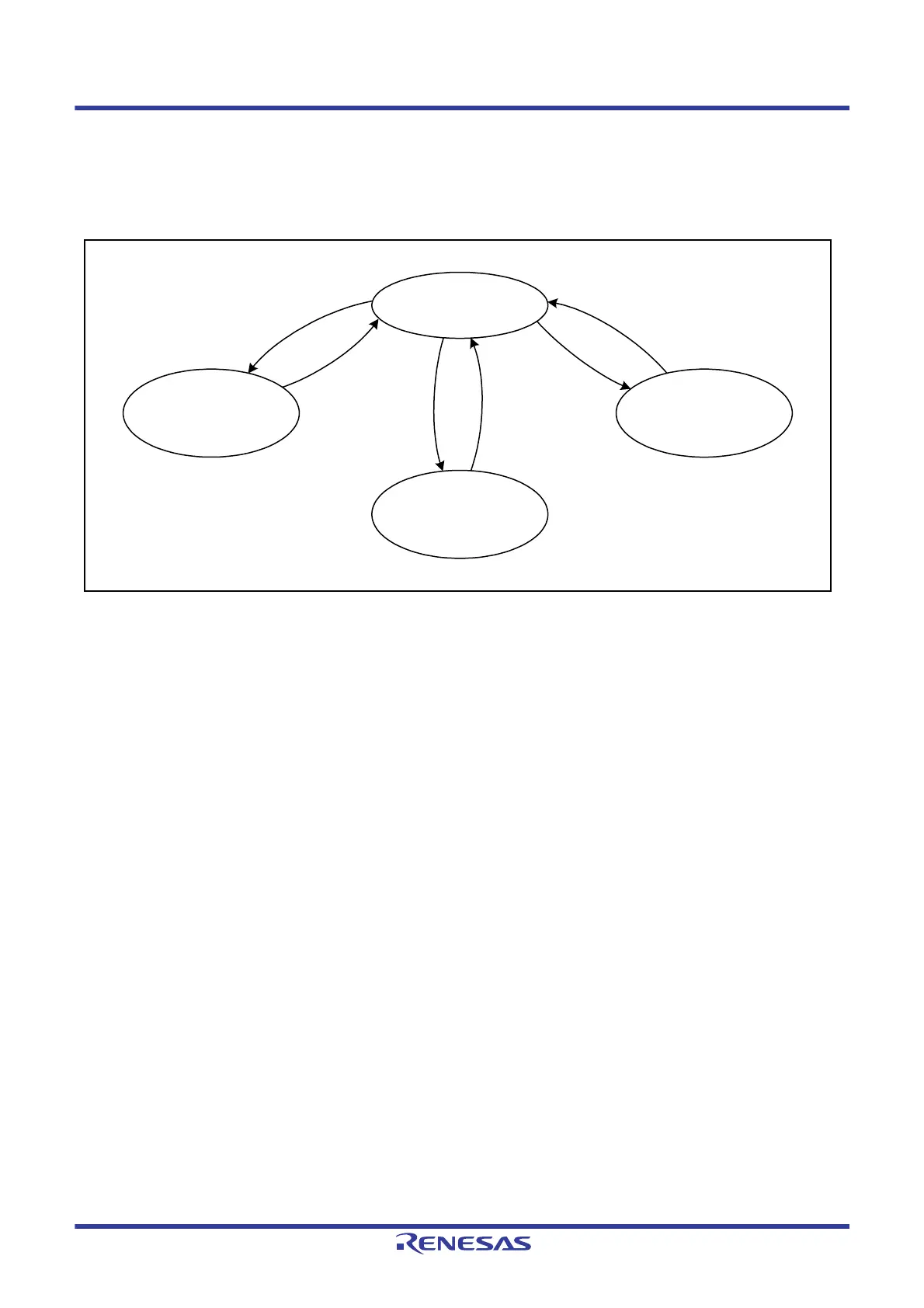

Figure 3.1 shows operating mode transitions determined by the settings of the MD pin and the UB pin.

Figure 3.1 Mode-Setting Pin Levels and Operating Modes

Boot mode

(USB interface)

MD = High

RES# = High

RES# = Low

MD = Low

UB = High

RES# = High

MD = Low

UB = Low

RES# = High

Single-chip mode

Reset

Boot mode

(SCI)
