R01UH0823EJ0100 Rev.1.00 Page 1661 of 1823

Jul 31, 2019

RX23W Group 50. Flash Memory (FLASH)

50.3 E2 DataFlash Area and Block Configuration

The E2 DataFlash is 8 Kbytes in the MCU. The E2 DataFlash is divided into blocks and erased in block units. Figure

50.2

shows the E2 DataFlash Area and Block Configuration.

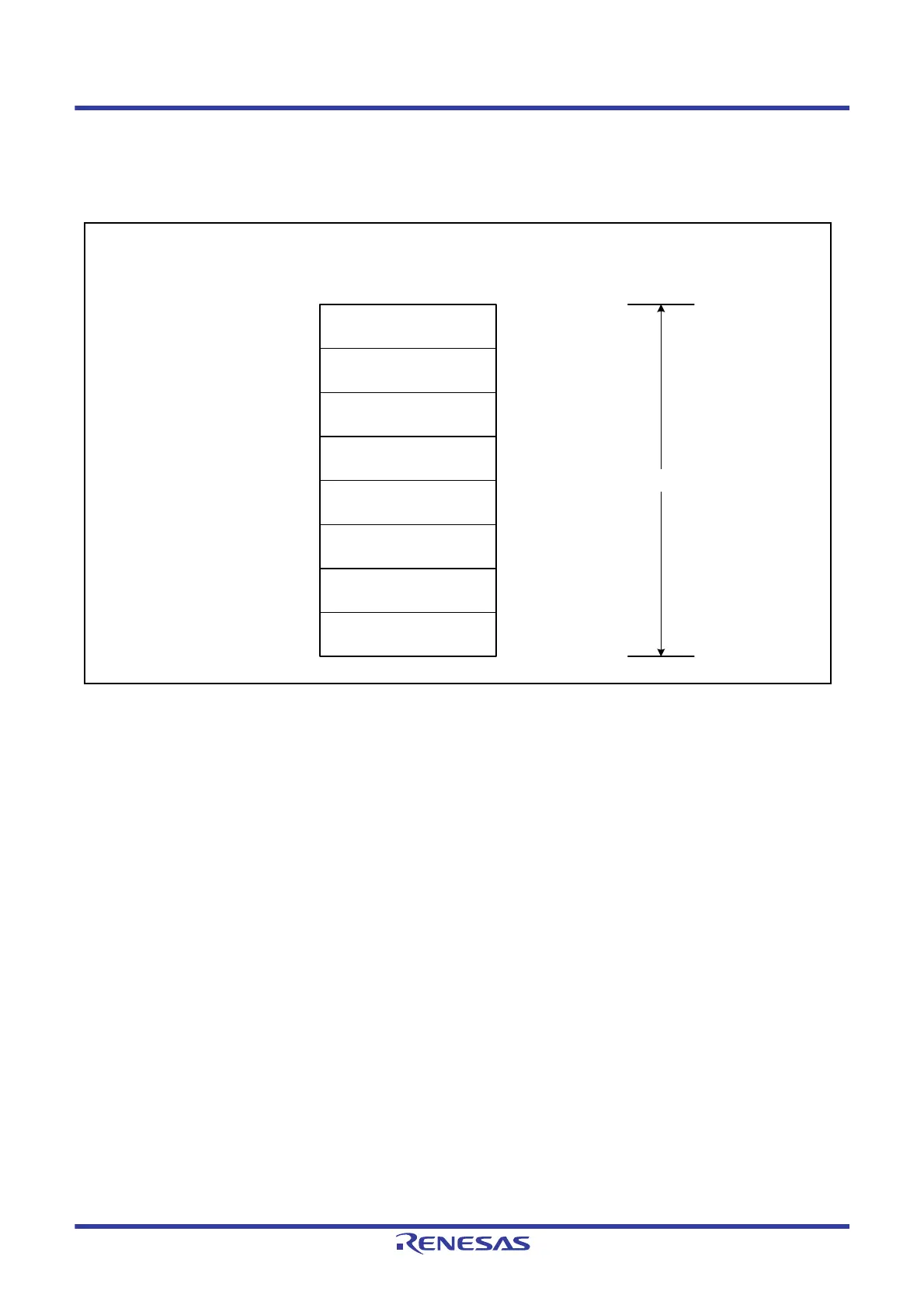

Figure 50.2 E2 DataFlash Area and Block Configuration

0010 0000h

DB0001

Data area

1 block = 1 Kbyte

DB0002

DB0005

DB0006

DB0007

0010 1FFFh

8 Kbytes

Address for reading

DB0000

DB0003

DB0004

Address for E2 DataFlash

programming/erasure

FE00 0000h

FE00 0400h

FE00 0800h

FE00 0C00h

FE00 1000h

FE00 1400h

FE00 1800h

FE00 1C00h

FE00 1FFFh
