RX23W Group 51. Electrical Characteristics
51.2.1 Normal I/O Pin Output Characteristics (1)
Figure 51.8 to Figure 51.11 show the characteristics when normal output is selected by the drive capacity control
register.

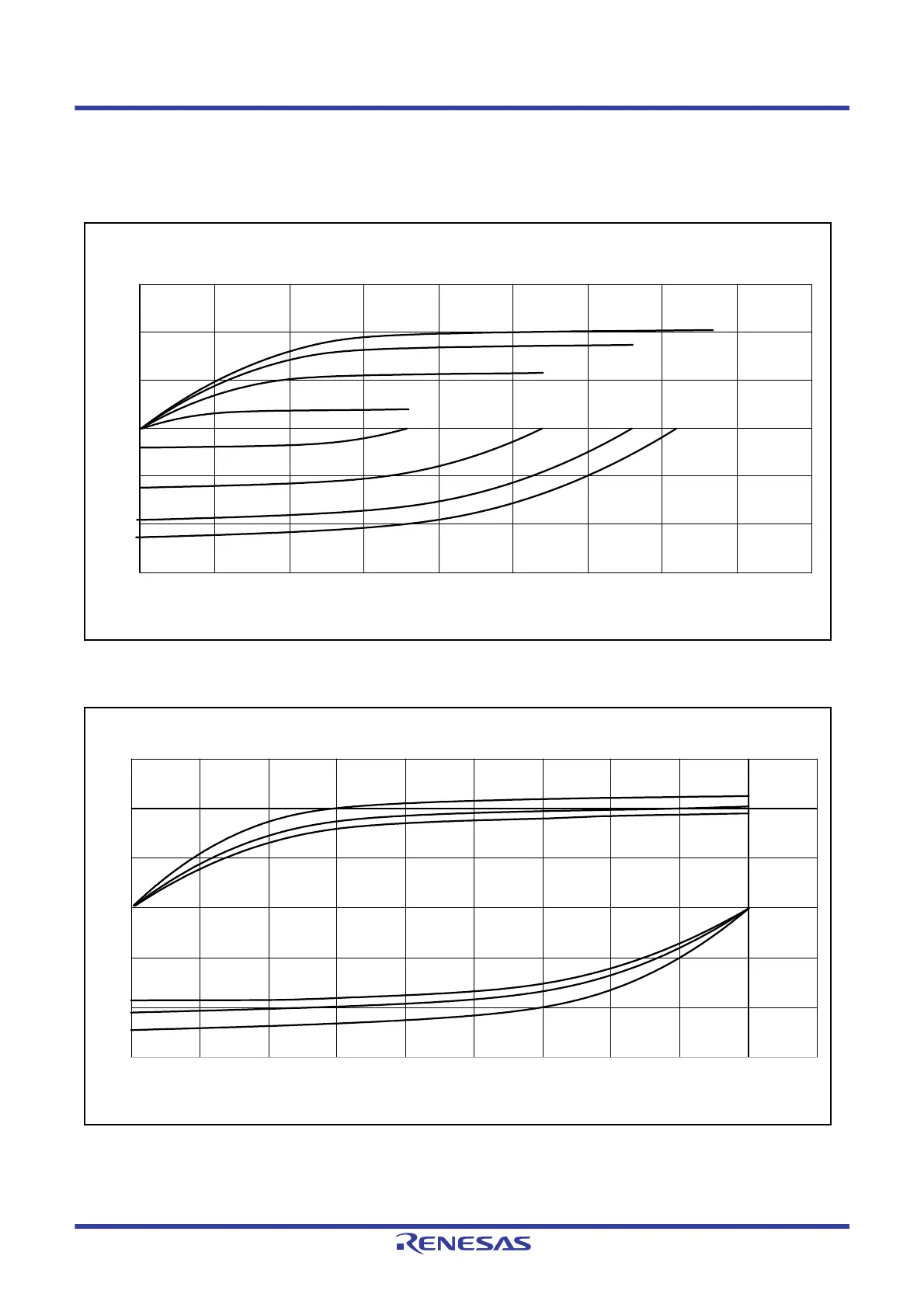

Figure 51.8 V
OH
/V
OL
and I
OH
/I
OL
Voltage Characteristics at T
a
= 25°C When Normal Output is Selected
(Reference Data)
Figure 51.9 V
OH
/V
OL
and I
OH
/I
OL
Temperature Characteristics at VCC = 1.8 V When Normal Output is Selected
(Reference Data)
–30
–20
–10
0
10
20
30
00.511.522.533.544.5
I
OH
/I
OL
[mA]
V
OH
/V
OL
[V]
I
OH
/I
OL
vs V
OH
/V
OL
VCC = 3.6V
VCC = 3.6V
VCC = 3.3V
VCC = 3.3V
VCC = 2.7V
VCC = 2.7V
VCC = 1.8V
VCC = 1.8V
–6
–4
–2
0
2
4
6
0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2
I
OH
/I
OL
[mA]
V
OH
/V
OL
[V]
I
OH
/I
OL
vs V
OH
/V
OL
Ta = –40°C
Ta = 25°C
Ta = 85°C
Ta = 85°C
Ta = 25°C
Ta = –40°C
