R01UH0823EJ0100 Rev.1.00 Page 1740 of 1823

Jul 31, 2019

RX23W Group 50. Flash Memory (FLASH)

50.11.10 Procedure to Set the Access Window in the User Area

Procedure to set the access window to avoid unintentionally rewriting the user area during the self-programming is as

follows.

(1) Send the access window program command (74h) to set the access window settings.

(2) Send the access window read command (73h) to confirm the access window settings.

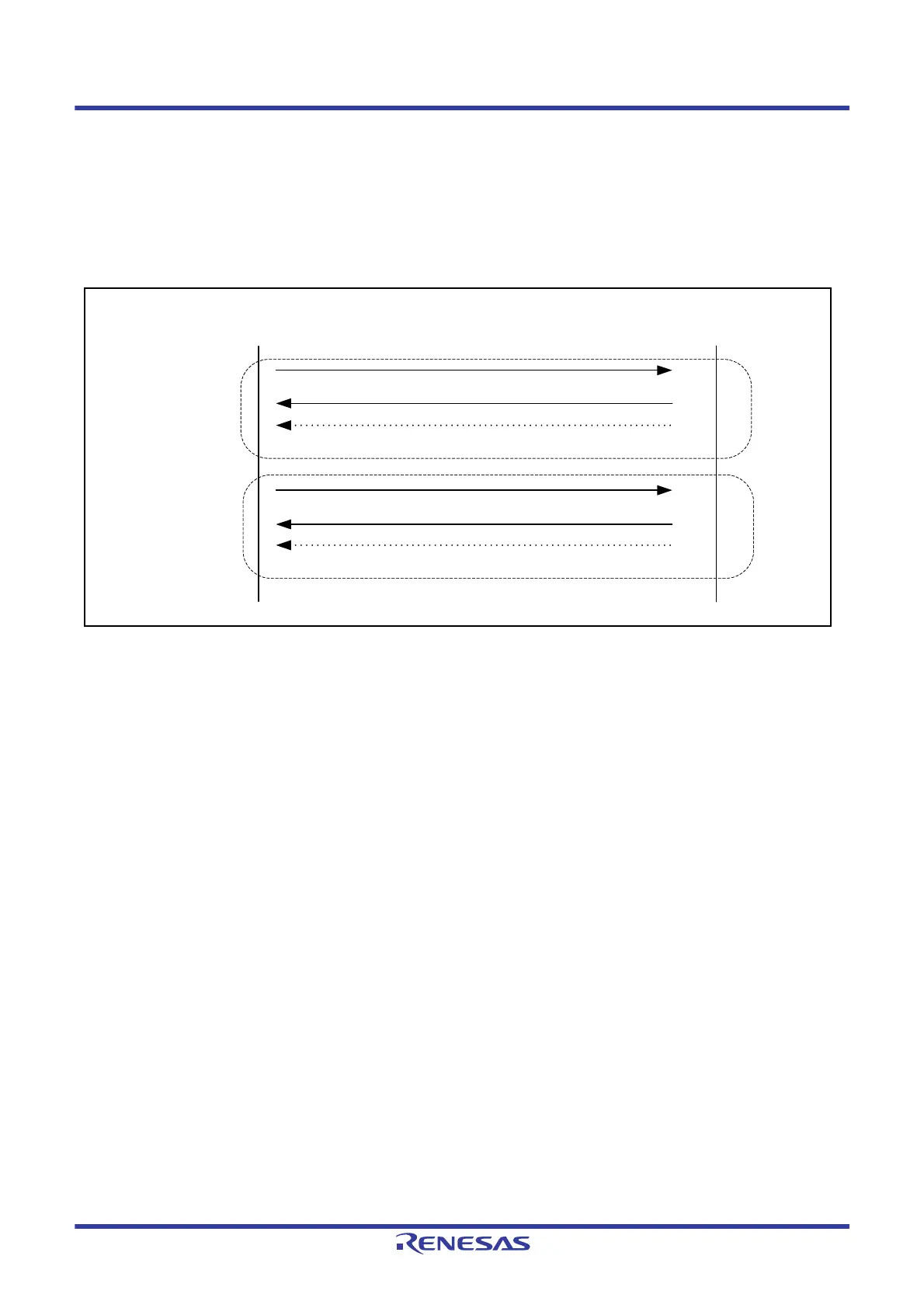

Figure 50.42 Procedure to Set the Access Window in the User Area

F4h, XXh (error code)

06h (ACK)

73h (access window read command)

73h, setting values of the access window

74h (access window information program command)

Serial

programmer

Settings used for

self-programming

Confirm the settings

F3h, XXh (error code)

(2)

(1)

MCU
