R01UH0823EJ0100 Rev.1.00 Page 199 of 1823

Jul 31, 2019

RX23W Group 9. Clock Generation Circuit

9.4.2 Handling of Pins When Sub-Clock is Not Used

If the sub-clock is not in use, connect the XCIN pin to VSS via a resistor (to pull VSS down) and leave the XCOUT pin

open-circuit as shown in

Figure 9.9.

In addition, if an oscillator is not connected, set the sub-clock oscillator stop bit (SOSCCR.SOSTP) to 1 (stopping the

oscillator) and the sub-clock oscillator control bit in RTC control register 3 (RCR3.RTCEN) to 0 (stopping the sub-clock

oscillator). The value of some RTC registers related to the sub-clock will be undefined after a cold start. Accordingly, be

sure to set these bits after a cold start.

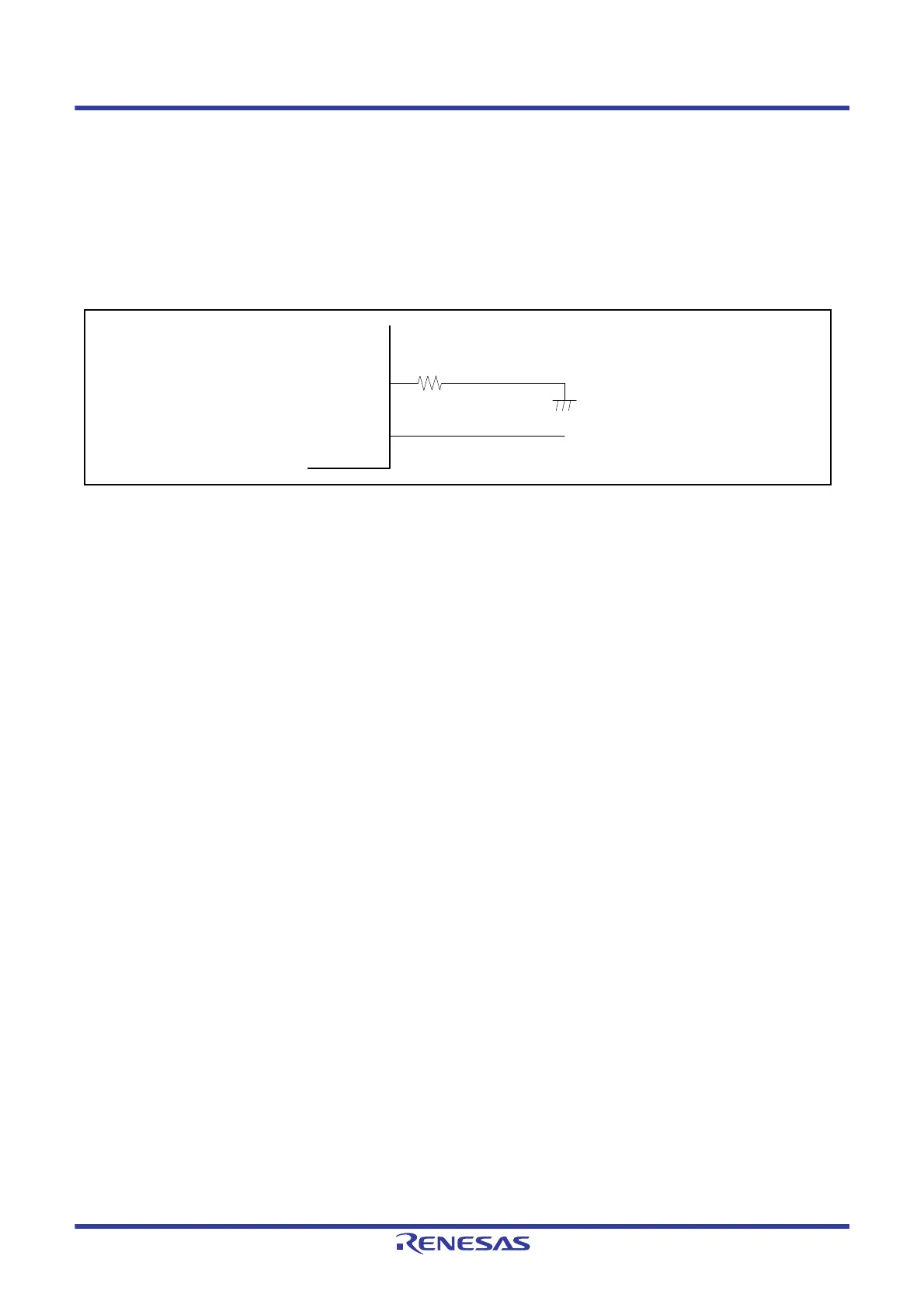

Figure 9.9 Pin Handling when Sub-Clock is Not Used

Open

XCOUT

XCIN
