RX23W Group 48. Data Operation Circuit (DOC)
48. Data Operation Circuit (DOC)
48.1 Overview
The data operation circuit (DOC) is used to compare, add, and subtract 16-bit data.
Table 48.1 lists the data operation circuit specifications and Figure 48.1 shows a block diagram of the data operation
circuit.
16-bit data is compared and an interrupt can be generated when a selected condition applies.

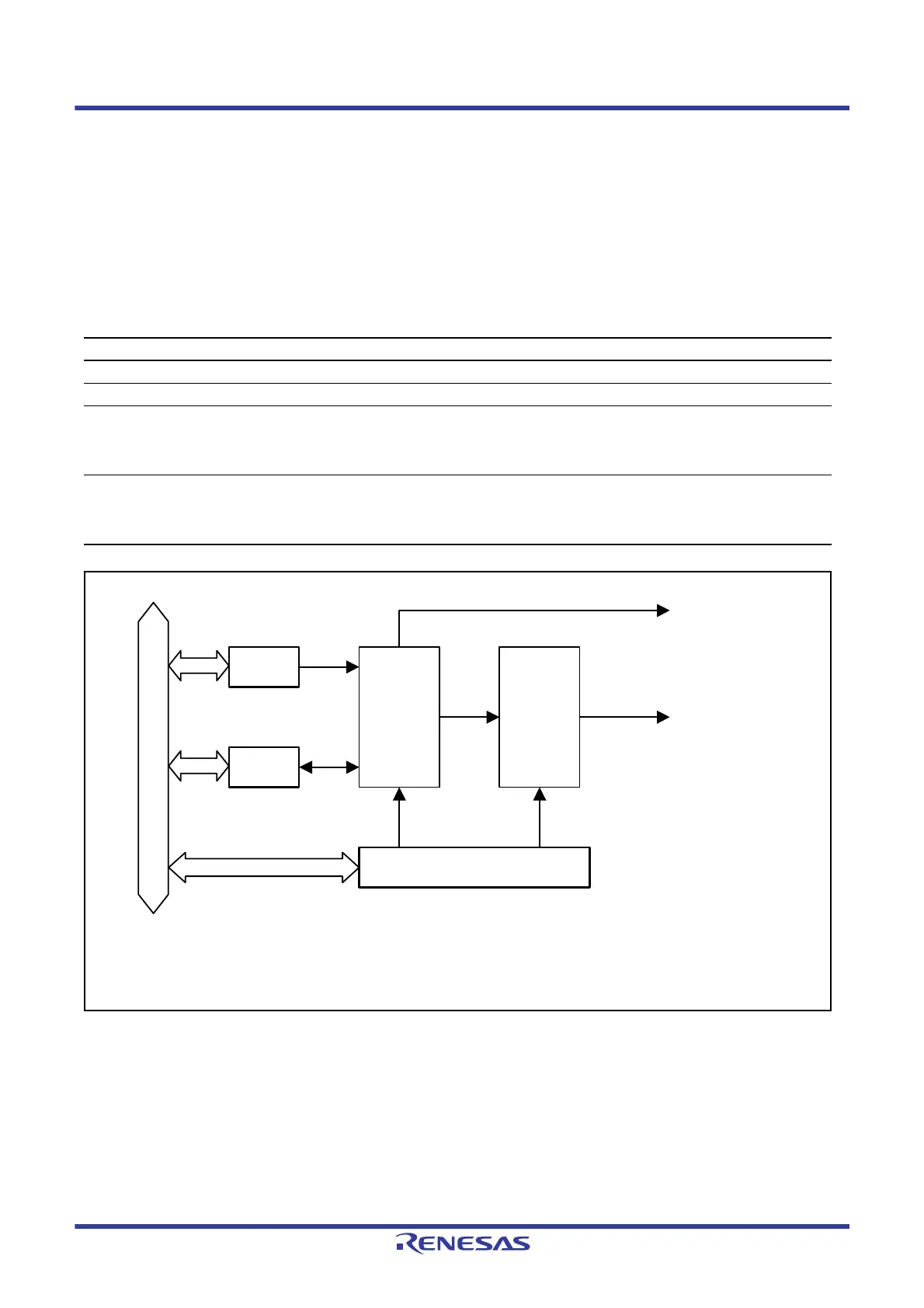

Figure 48.1 DOC Block Diagram
Table 48.1 DOC Specifications
Item Description
Data operation function 16-bit data comparison, addition, and subtraction
Lower power consumption function Module stop state can be set.
Interrupts An interrupt occurs at the following timings:
 The compared values either match or mismatch
 The result of data addition is greater than FFFFh
 The result of data subtraction is less than 0000h
Event link function (output) An interrupt occurs at the following timings:
 The compared values either match or mismatch
 The result of data addition is greater than FFFFh
 The result of data subtraction is less than 0000h
OMS[1:0]
DODIR
DOPCIE
Interrupt
control circuit
DODSR
DOCR
Interrupt signal
from data operation circuit
Internal peripheral bus
Operation
circuit
Event signal output
DOCR: DOC control register
DODIR: DOC data input register
DODSR: DOC data setting register
