R01UH0823EJ0100 Rev.1.00 Page 1818 of 1823

Jul 31, 2019

RX23W Group Appendix 2. Package Dimensions

Appendix 2. Package Dimensions

Information on the latest version of the package dimensions or mountings has been displayed in “Packages” on Renesas

Electronics Corporation website.

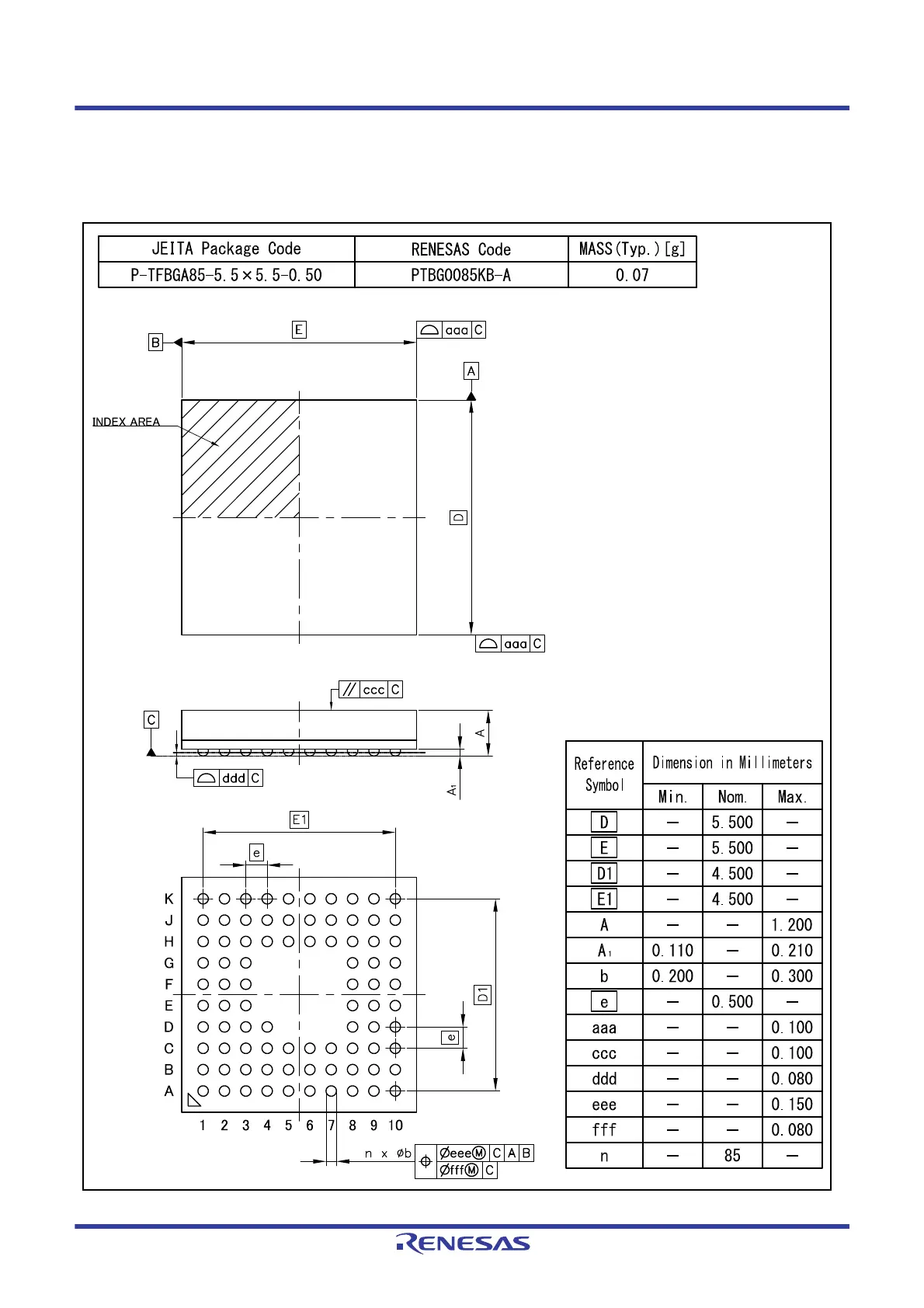

Figure A 85-Pin BGA (PTBG0085KB-A)
