R01UH0823EJ0100 Rev.1.00 Page 1693 of 1823

Jul 31, 2019

RX23W Group 50. Flash Memory (FLASH)

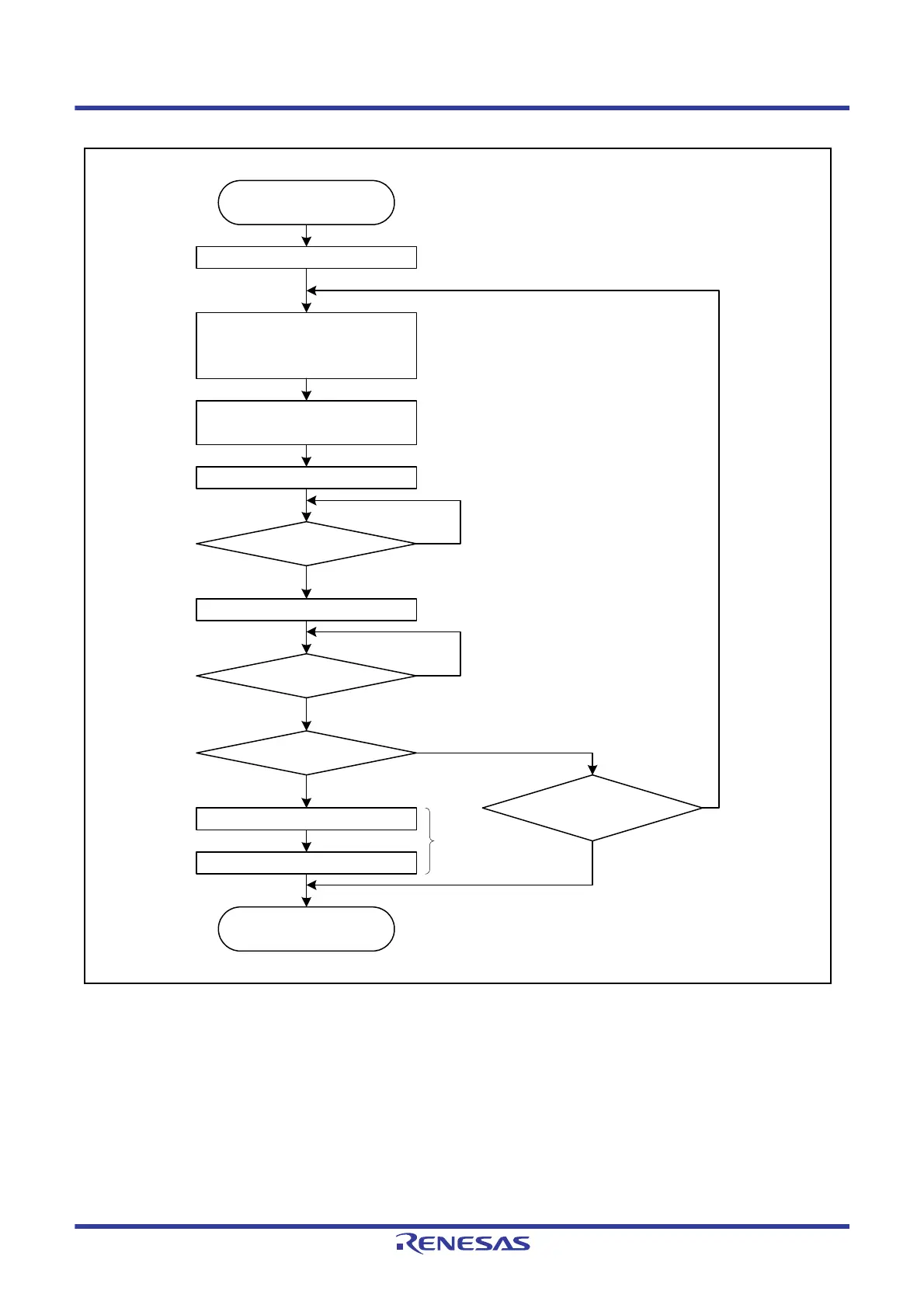

Figure 50.15 Procedure to Issue the Block Erase Command for the E2 DataFlash

Set the beginning address

of the erasure block

in registers FSARH and FSARL

Yes

FCR register = 84h

FCR register = 00h

FSTATR1.FRDY flag = 1?

End in E2 DataFlash

P/E mode

FSTATR1.FRDY flag = 0?

Yes

Continue E2 DataFlash

erasure?

Yes

Set the last address of the erasure

block in registers FEARH and FEARL

FSTATR0.ILGLERR flag = 1 or

FSTATR0.ERERR flag = 1?

FRESETR.FRESET bit = 1

FRESETR.FRESET bit = 0

Sequencer

initialization

FASR.EXS bit = 0

Start in E2 DataFlash

P/E mode
