RX23W Group 51. Electrical Characteristics

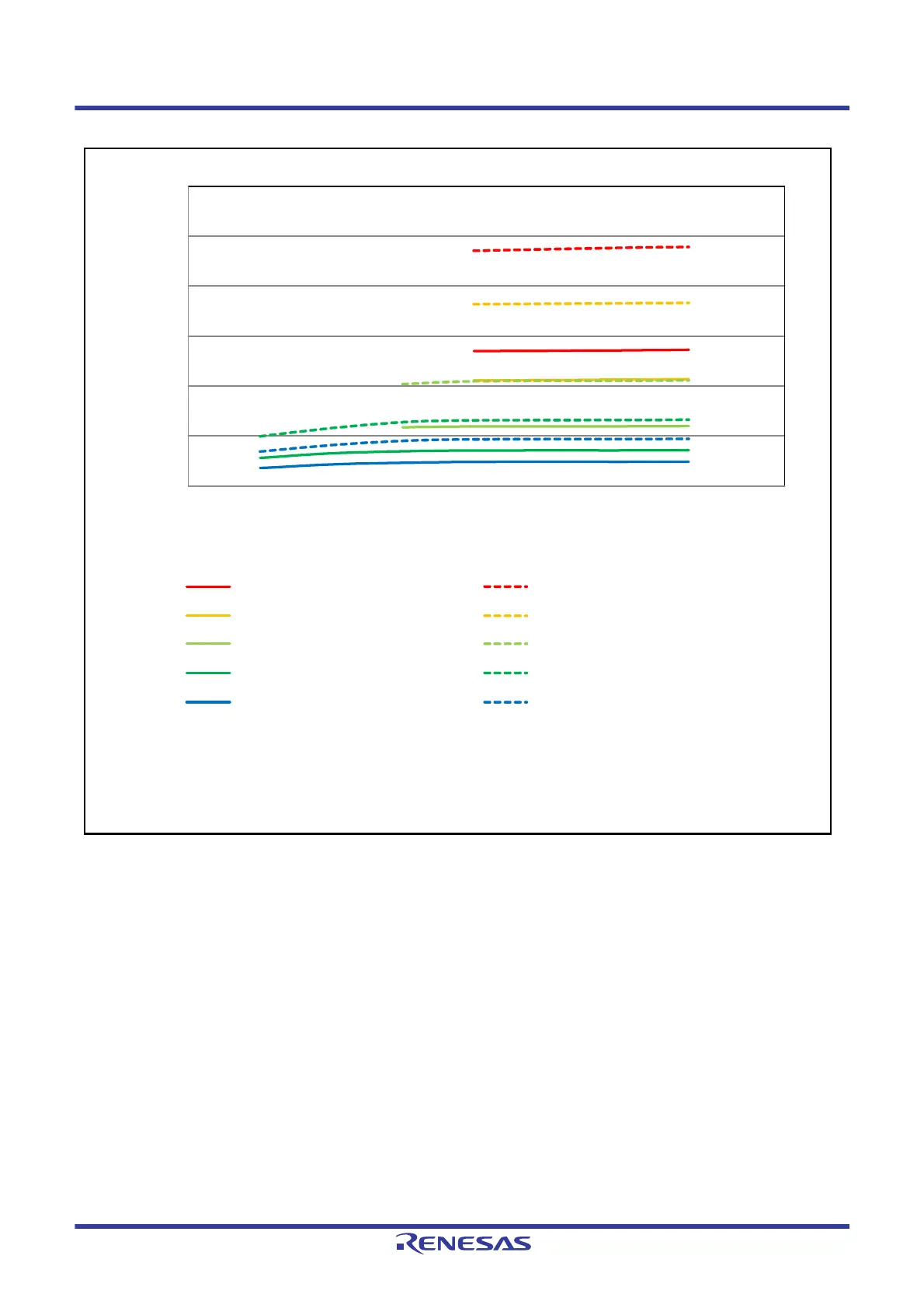

Figure 51.1 Voltage Dependency in High-Speed Operating Mode (Reference Data)
Note 1. All peripheral operations except any BGO operation are operating normally. Indicates the average of the
typical samples through actual measurement during product evaluation.
Note 2. All peripheral operations except any BGO operation are operating at maximum. Indicates the average of the
upper-limit samples through actual measurement during product evaluation.
0
10
20
30
40
50
60
1.5 2.0 2.5 3.0 3.5 4.0
ICC (mA)
VCC (V)
Ta = 25°C, ICLK = 54 MHz
*1
Ta = 25°C, ICLK = 32 MHz
*1
Ta = 25°C, ICLK = 16 MHz
*1
Ta = 25°C, ICLK = 8 MHz
*1
Ta = 25°C, ICLK = 4 MHz
*1
Ta = 85°C, ICLK = 54 MHz
*2
Ta = 85°C, ICLK = 32 MHz
*2
Ta = 85°C, ICLK = 16 MHz
*2
Ta = 85°C, ICLK = 8 MHz
*2
Ta = 85°C, ICLK = 4 MHz
*2
