RX23W Group 23. Multi-Function Timer Pulse Unit 2 (MTU2a)

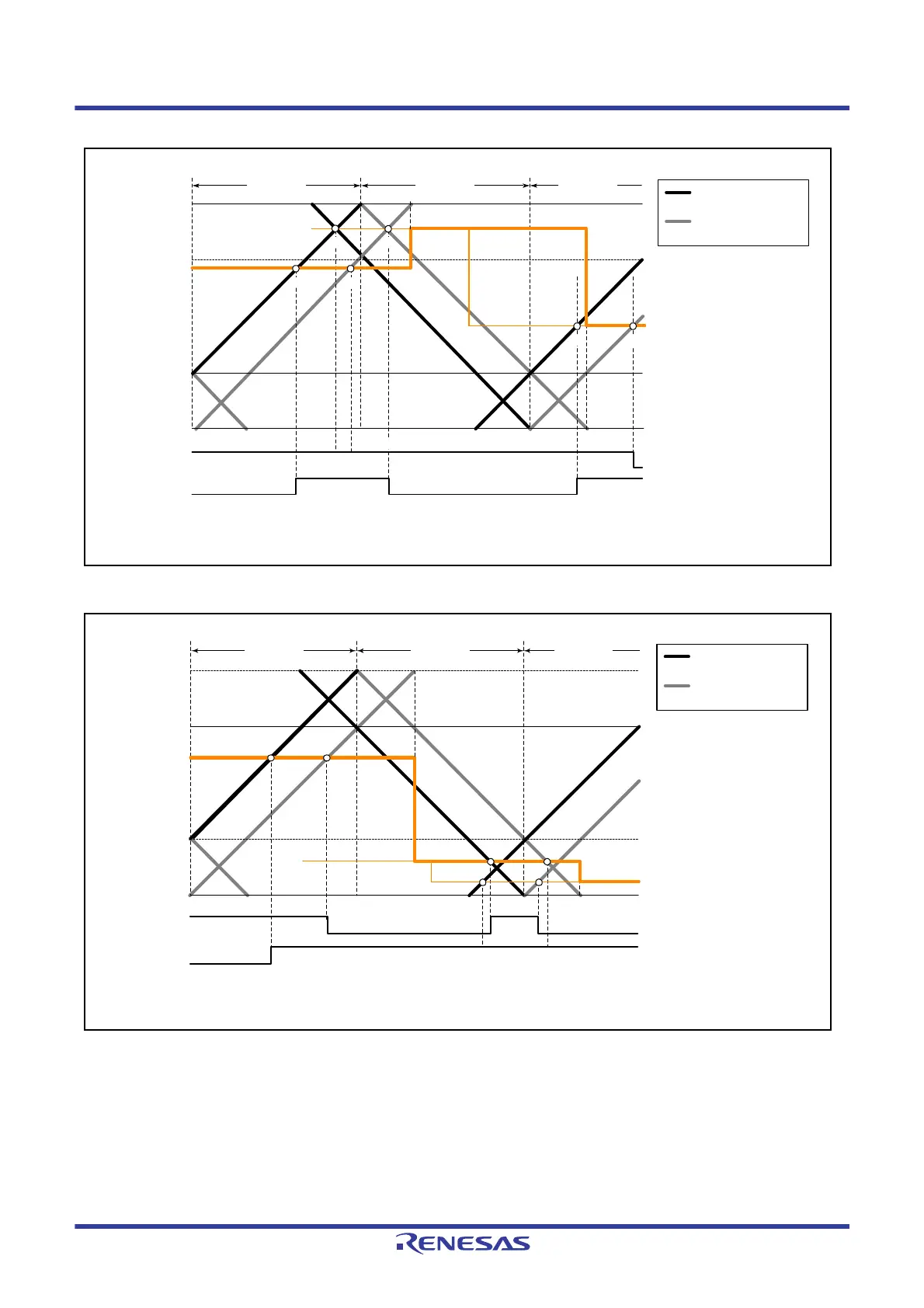

Figure 23.47 Example of Waveform Output in Complementary PWM Mode (2)

Figure 23.48 Example of Waveform Output in Complementary PWM Mode (3)

MTU3.TGRA

TCDRA

TDDRA

0000h

Positive-phase

output

Negative-phase

output

Output waveform is active-low.

Buffer operation is set for transfer at the crest and trough.

MTU4.TGRA

TEMP2

OFF

ON OFF

Don't care

T1 interval T2 interval T1 interval

Counter for generating

a turn-off timing

Counter for generating

a turn-on timing

MTU3.TGRA

TCDRA

TDDRA

0000h

Positive-phase

output

Negative-phase

output

Output waveform is active-low.

Buffer operation is set for transfer at the crest and trough.

MTU4.TGRA

TEMP2

OFF

OFF ON

Don't care

T1 interval T2 interval T1 interval

Counter for generating

a turn-off timing

Counter for generating

a turn-on timing
