RX23W Group 23. Multi-Function Timer Pulse Unit 2 (MTU2a)

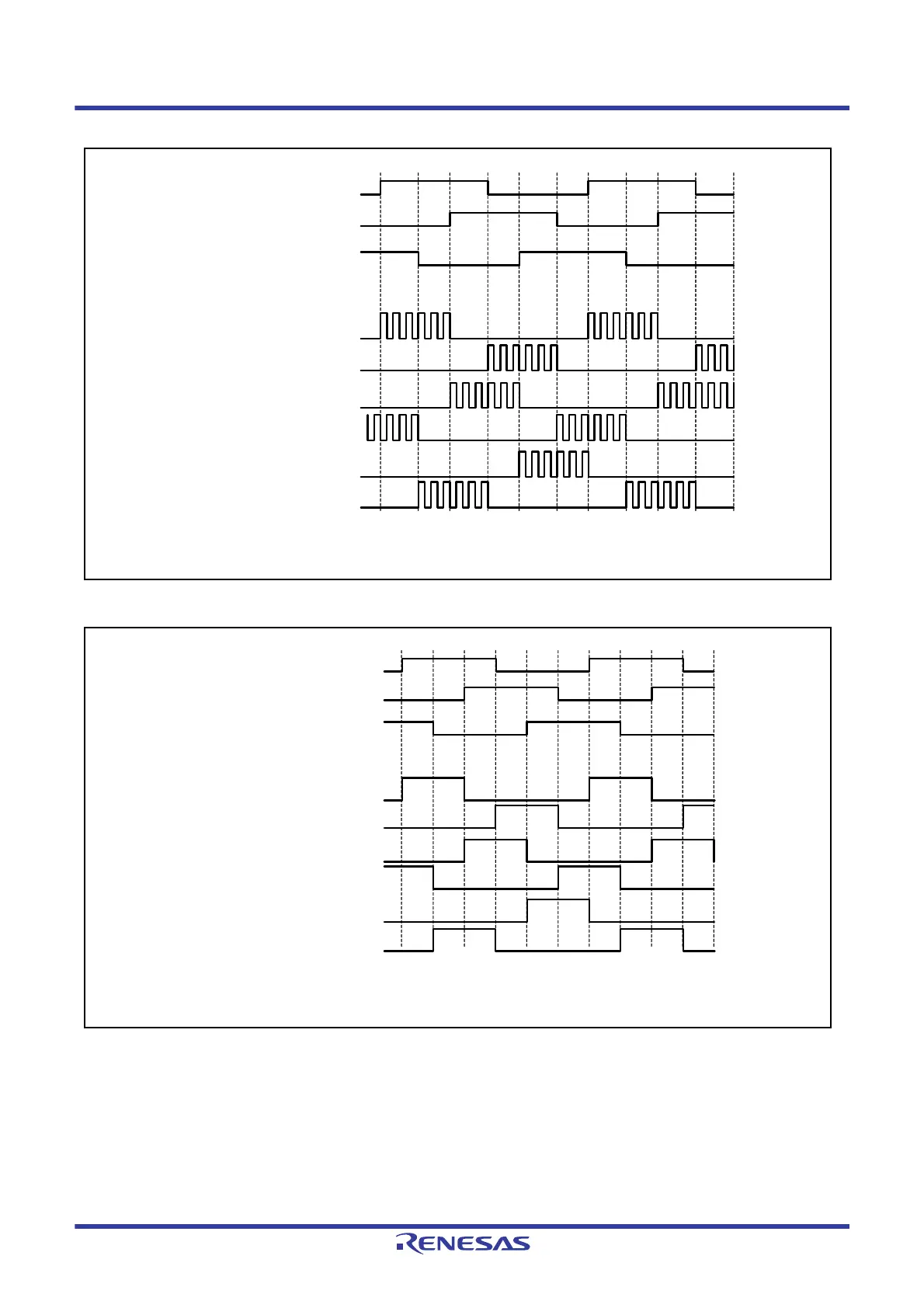

Figure 23.64 Example of Output Phase Switching by External Input (2)

Figure 23.65 Example of Output Phase Switching through UF, VF, and WF Bit Settings (1)

MTIOC0A pin

MTIOC0B pin

MTIOC0C pin

MTIOC3B pin

MTIOC3D pin

MTIOC4A pin

MTIOC4C pin

MTIOC4B pin

MTIOC4D pin

6-phase output

When TGCR.BDC = 1, TGCR.N = 1, TGCR.P = 1, and TGCR.FB = 0,

the high level is the active level for output.

External input

UF bit

VF bit

WF bit

MTIOC3B pin

MTIOC3D pin

MTIOC4A pin

MTIOC4C pin

MTIOC4B pin

MTIOC4D pin

6-phase output

TGCR

When TGCR.BDC = 1, TGCR.N = 0, TGCR.P = 0, and TGCR.FB = 1,

the high level is the active level for output.
