Xerox WorkCentre 7132 Service Documentation

May 2006
4-64
WorkCentre 7132
REP 9.2.1
Launch Version 3.0
Repairs/Adjustments

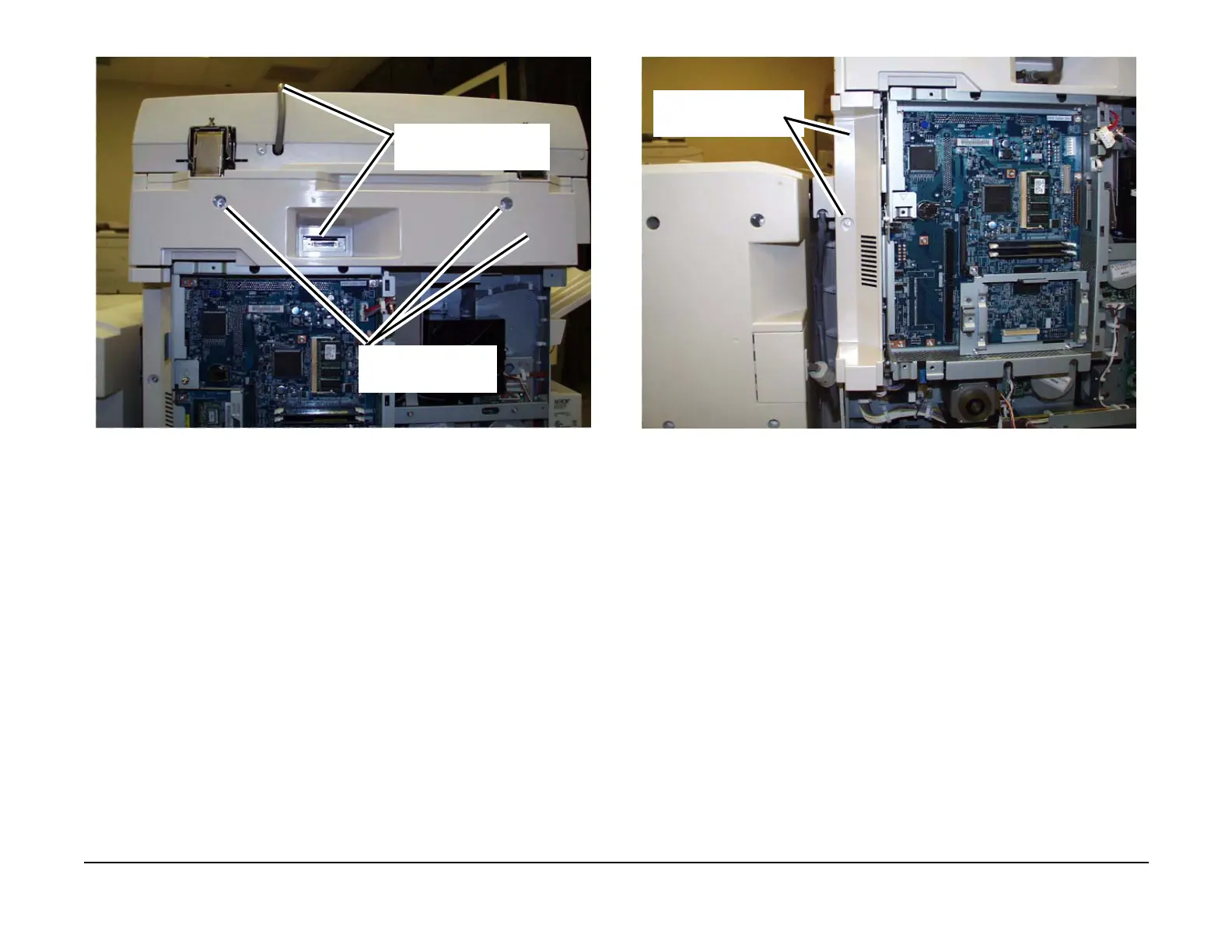

Figure 5 Remove the Rear Top Cover
8. Remove the Right Rear Side Panel. (Figure 6)
Figure 6 Removing the Right Rear Side Panel
9. Loosen the upper screws (2) from the ESS PWB Chassis. (Figure 7)
2
Remove the screws (2)
and remove the cover
1
Disconnect the connector
Remove the screw (1)
then remove the panel.
