Xerox WorkCentre 7132 Service Documentation

January 2007
4-83
WorkCentre 7132
REP 11.3.2
Repairs/Adjustments
Reversion 4.0

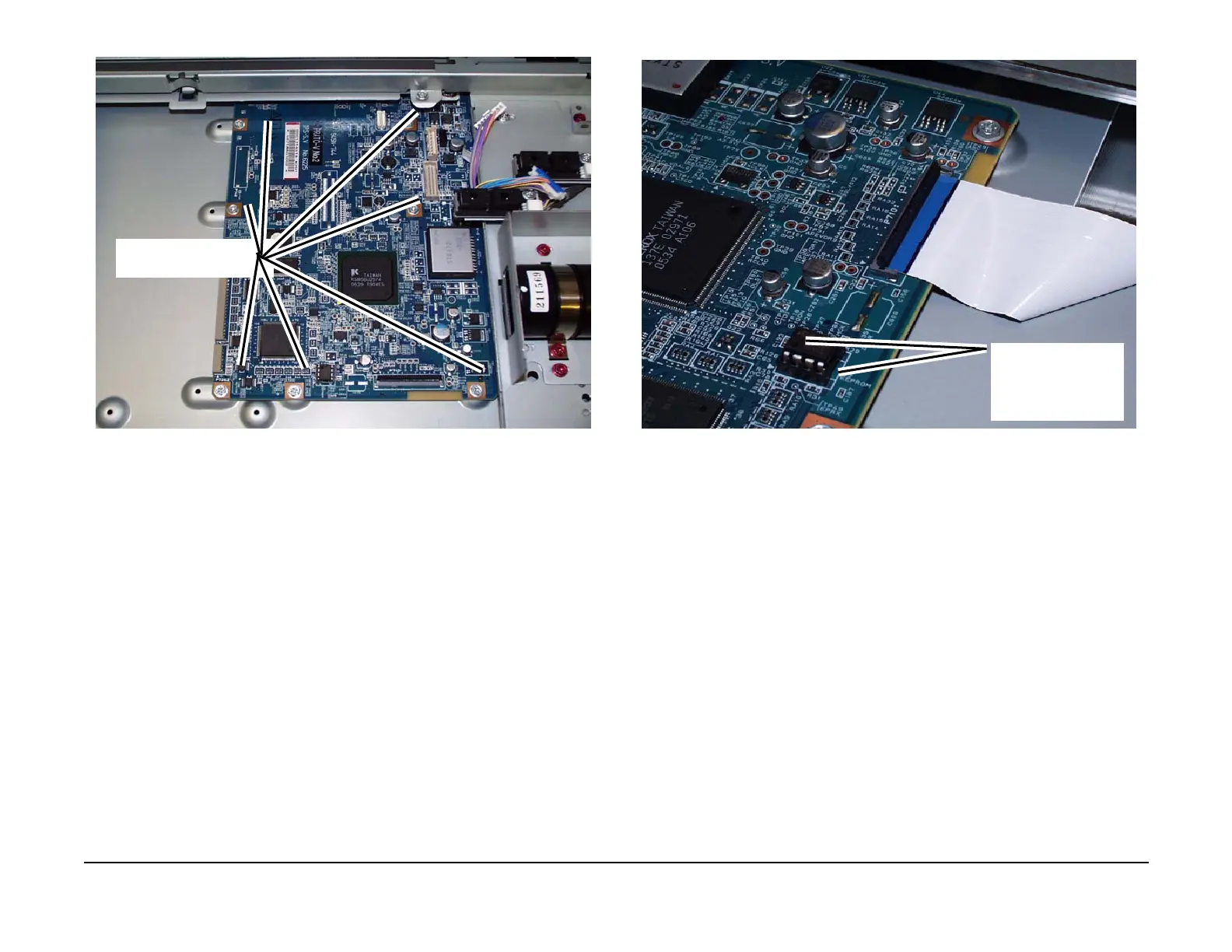

Figure 8 Removing the screws (7)
11. Remove the IIT/IPS PWB.
12. When replacing the IIT/IPS PWB, remove the EPROM from the old IIT/IPS PWB to install
it on the new IIT/IPS PWB. (Figure 9)
Figure 9 Removal and replacing the IIT EPROM
Replacement
1. When replacing the IIT/IPS PWB, install the EPROM from the old IIT/IPS PWB onto the
new IIT/IPS PWB. (Figure 10)
Remove the screws (7)
NOTE: Notice that the
cut out on the EPROM
Case should be aligned
with the white printed
cut out on the board.
