Xerox WorkCentre 7132 Service Documentation

January 2007
4-87
WorkCentre 7132
REP 11.5.1
Repairs/Adjustments
Reversion 4.0
2. Remove the following parts:
• Platen Glass (REP 11.3.1)
• Control Panel (REP 11.1.2)
• DADF Assembly (REP 15.1.1)

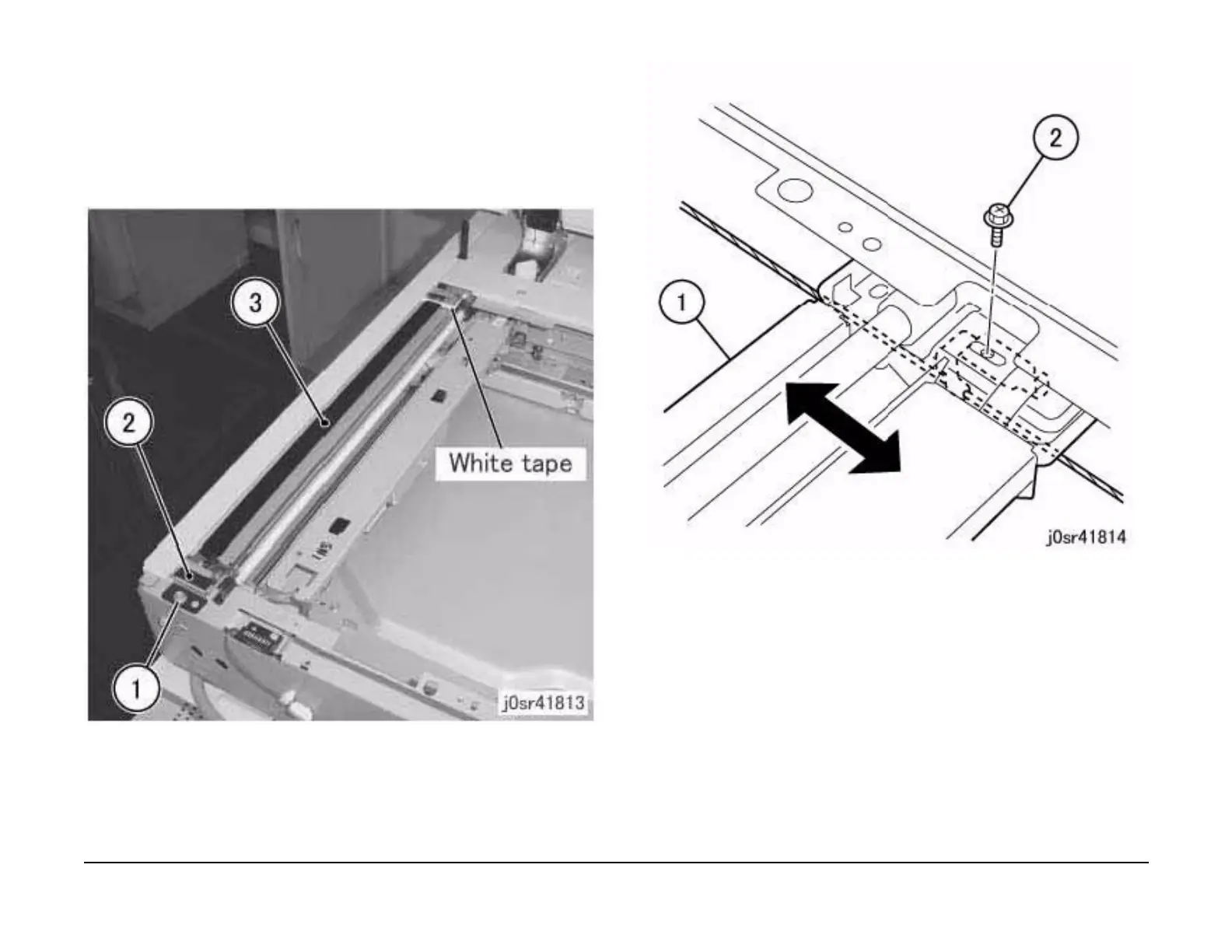

3. Remove the DADF Platen Glass. (Figure 2)
1. Remove the screw (1).
2. Remove the Front Support Bracket.
3. Remove the DADF Platen Glass.
Figure 2 Removing the Left Side Platen
4. Unfasten the Full Rate Carriage from the Carriage Cable. (Figure 3)
1. Move the Full Rate Carriage to the frame cutouts.
2. Remove the screws (1).
Figure 3 Unfastening the Full Rate Carriage
3. Remove the Carriage Cable. (Figure 4)
1. Remove the spring from the frame.
2. Detach the cable from the spring.
