Xerox WorkCentre 7132 Service Documentation

January 2007
4-88
WorkCentre 7132
REP 11.5.1
Reversion 4.0
Repairs/Adjustments

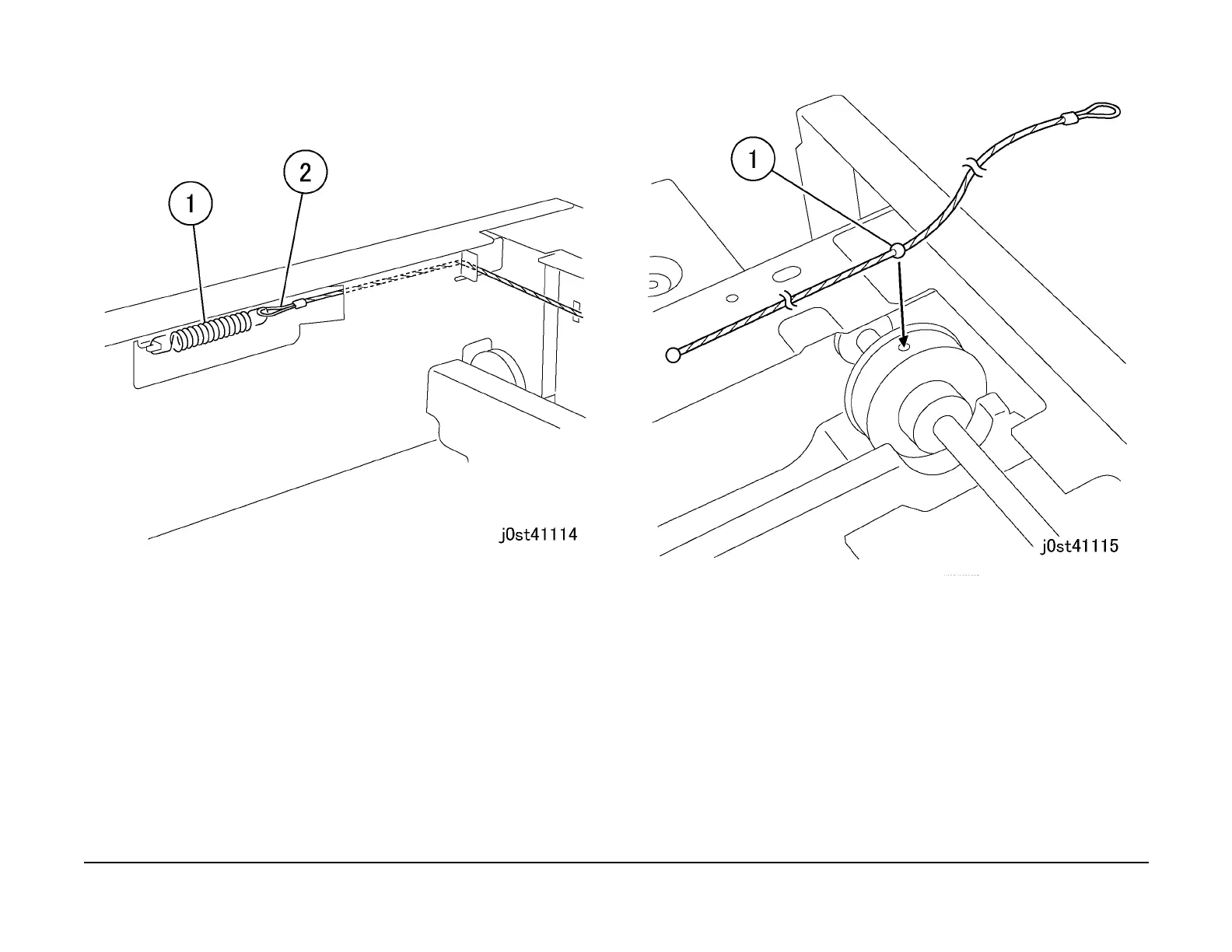

Figure 4 Removing the spring
Replacement
1. Wind the Carriage Cable around the pulley. (Figure 5, Figure 6, Figure 7)
1. Insert the Carriage Cable ball into the ditch of the pulley.
2. Wind the spring end of the cable around the pulley for 1.5 rounds.
3. Fix the cable at the spring end on the frame with tape.
4. Wind the cable at the ball end around the pulley for 2 rounds.
5. Fix the cable on the pulley with tape to prevent it from moving.
Figure 5 Winding the Carriage Cable around the pulley. 1/3
