Xerox WorkCentre 7132

January 2007
4-138
WorkCentre 7132
REP 15.4.2
Reversion 4.0
Repairs/Adjustments

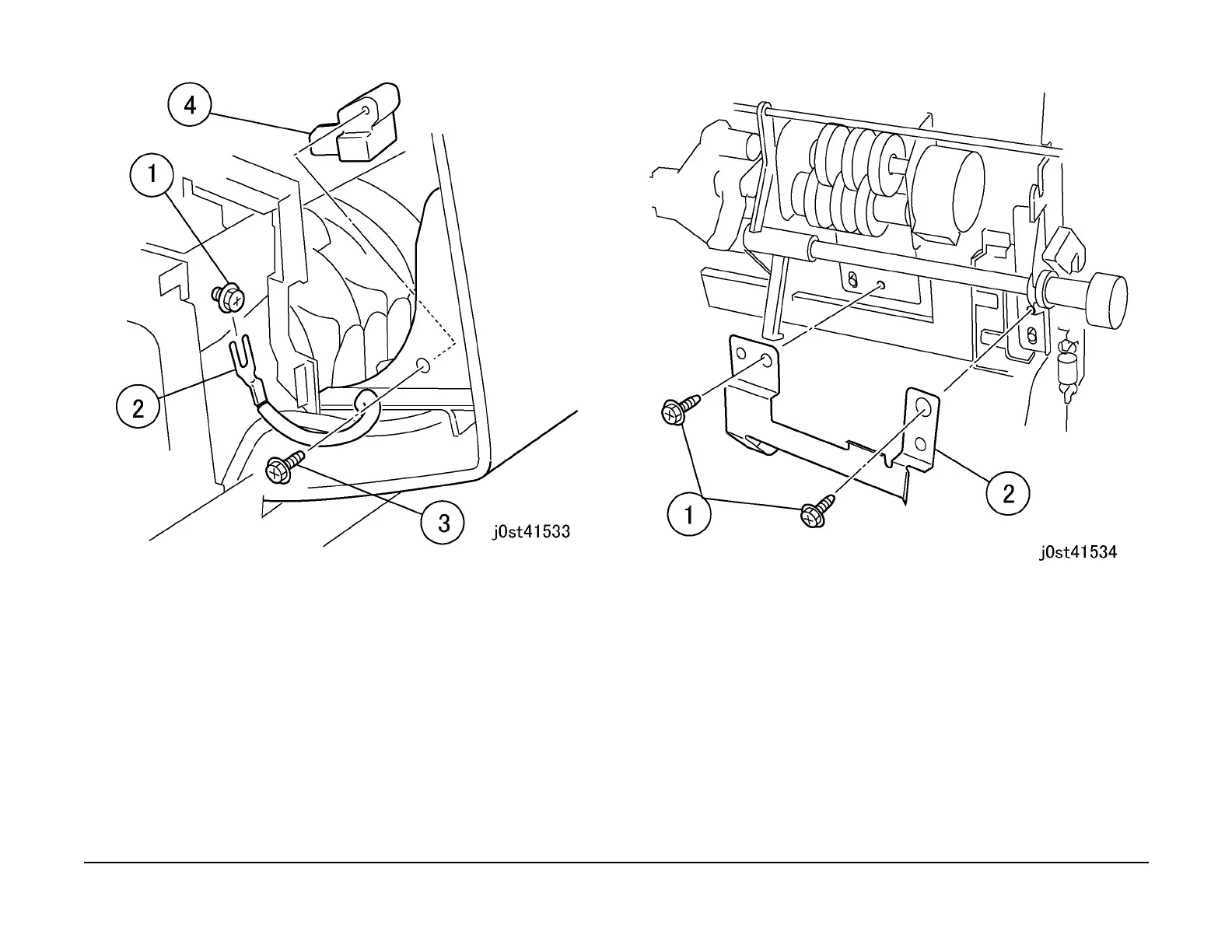

Figure 2 Removing the Harness Guide
5. Remove the Plate Spring. (Figure 3)
1. Remove the Tapping Screw (2).
2. Remove the Plate Spring.
Figure 3 Removing the Plate Spring
6. Remove the Top Cover with the Wire Harness connected. (Figure 4)
1. Remove the E-clip.
2. Remove the screw (1).
3. Remove the Stud Bracket.
4. Remove the stud.
5. Remove the Top Cover Assembly.
