January 2007
4-140
WorkCentre 7132
REP 15.4.2
Reversion 4.0
Repairs/Adjustments

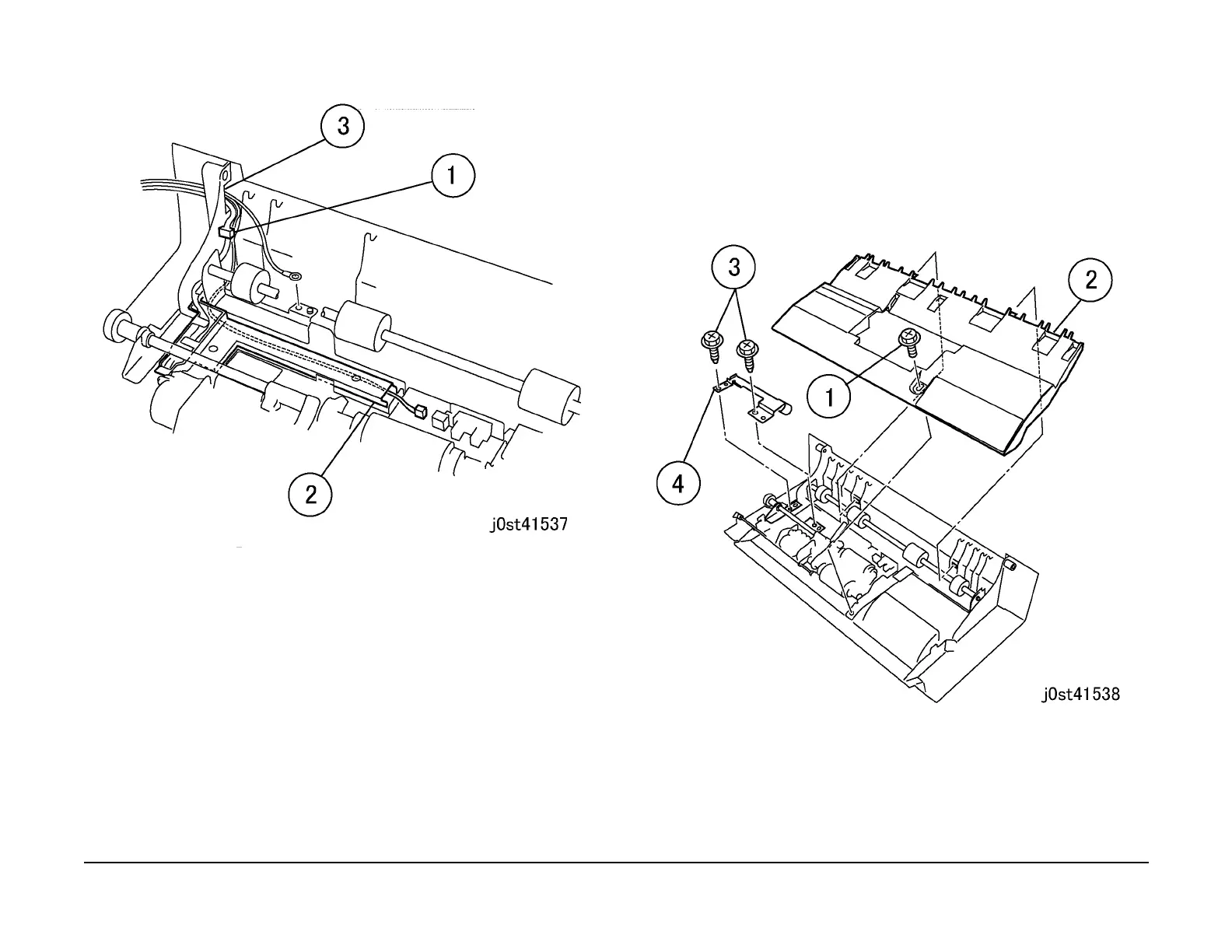

Figure 6 Removing the Wire Harness
Replacement
1. Remove the Wire Harness from the new Top Cover Assembly when installing the cover.
2. Remove the Feed Upper Chute and Plate Spring from the new Top Cover Assembly. (Fig-
ure 7)
1. Remove the screw (1).
2. Remove the Feed Upper Chute.
3. Remove the Tapping Screw (2).
4. Remove the Plate Spring.
Figure 7 Removing the Feed Upper Chute and Plate Spring
3. Remove the Wire Harness from the new Top Cover. (Figure 8)
1. Disconnect the connectors (2).
2. Removing the Tapping Screw (3).
3. Removing the Wire Harness (x3) from the square hole.
To Next Page
