Xerox WorkCentre 7132 Service Documentation

January 2007
4-169
WorkCentre 7132
REP 16.7.1
Repairs/Adjustments
Reversion 4.0
1. Disconnect the connectors (x4).
2. Release the Edge Saddle to remove the wire.

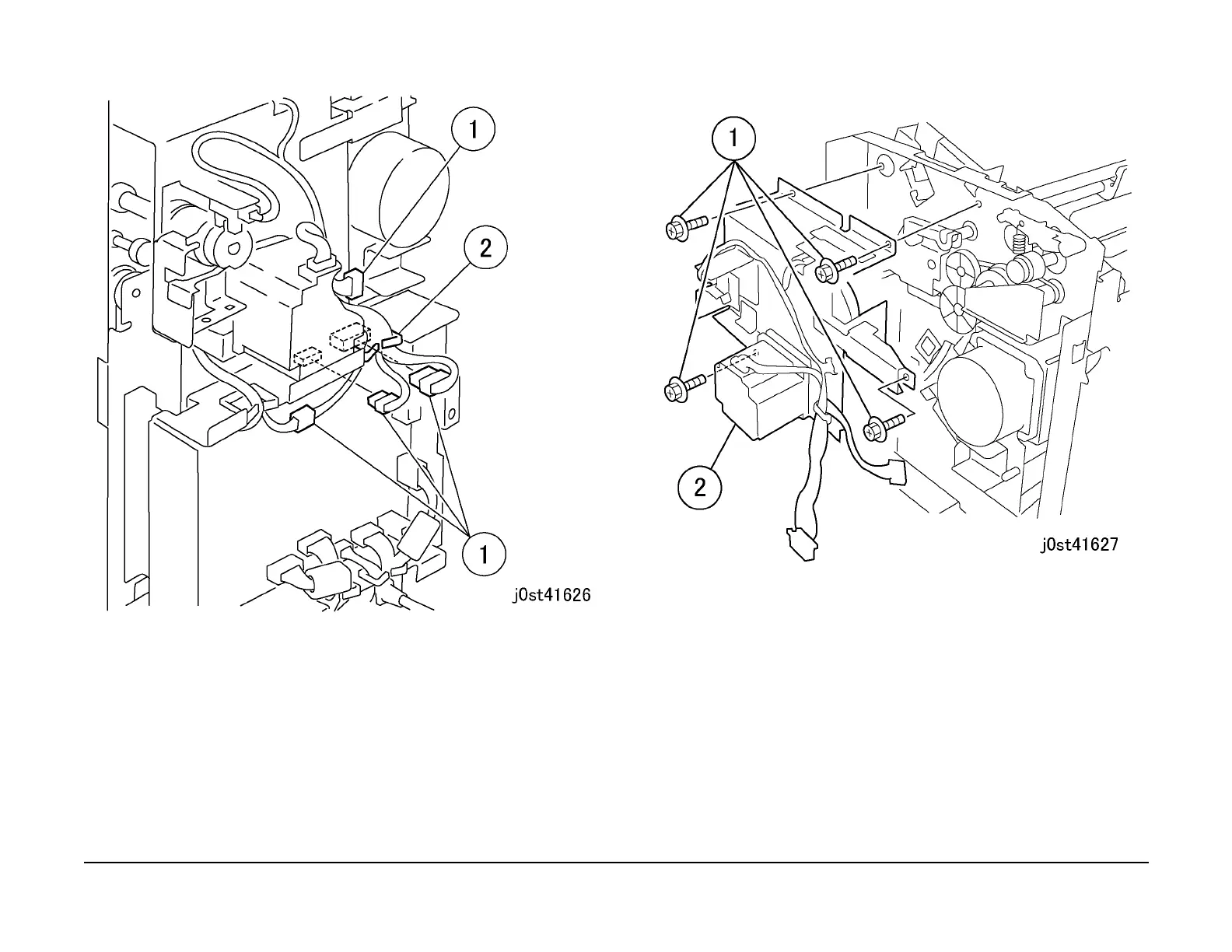

Figure 2 Disconnecting the connectors
4. Remove the Cam Bracket Assembly. (Figure 3)
1. Remove the screws (x4).
2. Remove the Cam Bracket Assembly.
Figure 3 Removing the Cam Bracket Assembly
5. Remove the belt. (Figure 4)
1. Remove the E-Clip to remove the gear.
2. Remove the E-Clip to remove the pulley.
3. Remove the Paper Eject Belt.
