Xerox WorkCentre 7132 Service Documentation

January 2007
4-172
WorkCentre 7132
REP 16.8.1
Reversion 4.0
Repairs/Adjustments

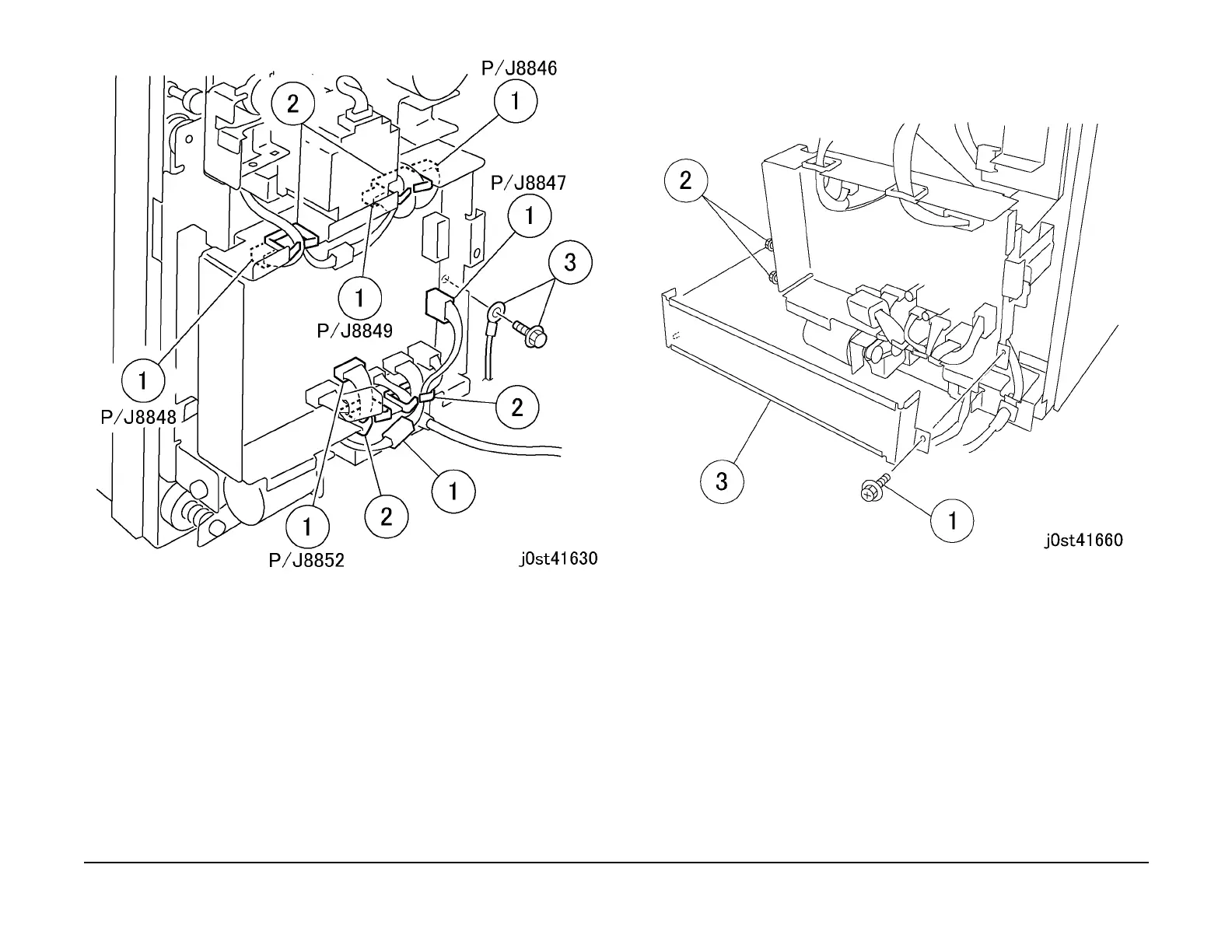

Figure 1 Disconnecting the connectors
3. Remove the bracket. (Figure 2)
1. Remove the screw.
2. Loosen the screws (x2).
3. Remove the bracket.
Figure 2 Removing the bracket
4. Move the PWB Bracket in the direction of the arrow. (Figure 3)
1. Loosen the screw.
2. Remove the screws (x2).
3. Remove the PWB Bracket with the connector still connected.
