January 2007
4-173
WorkCentre 7132
REP 16.8.1
Repairs/Adjustments
Reversion 4.0

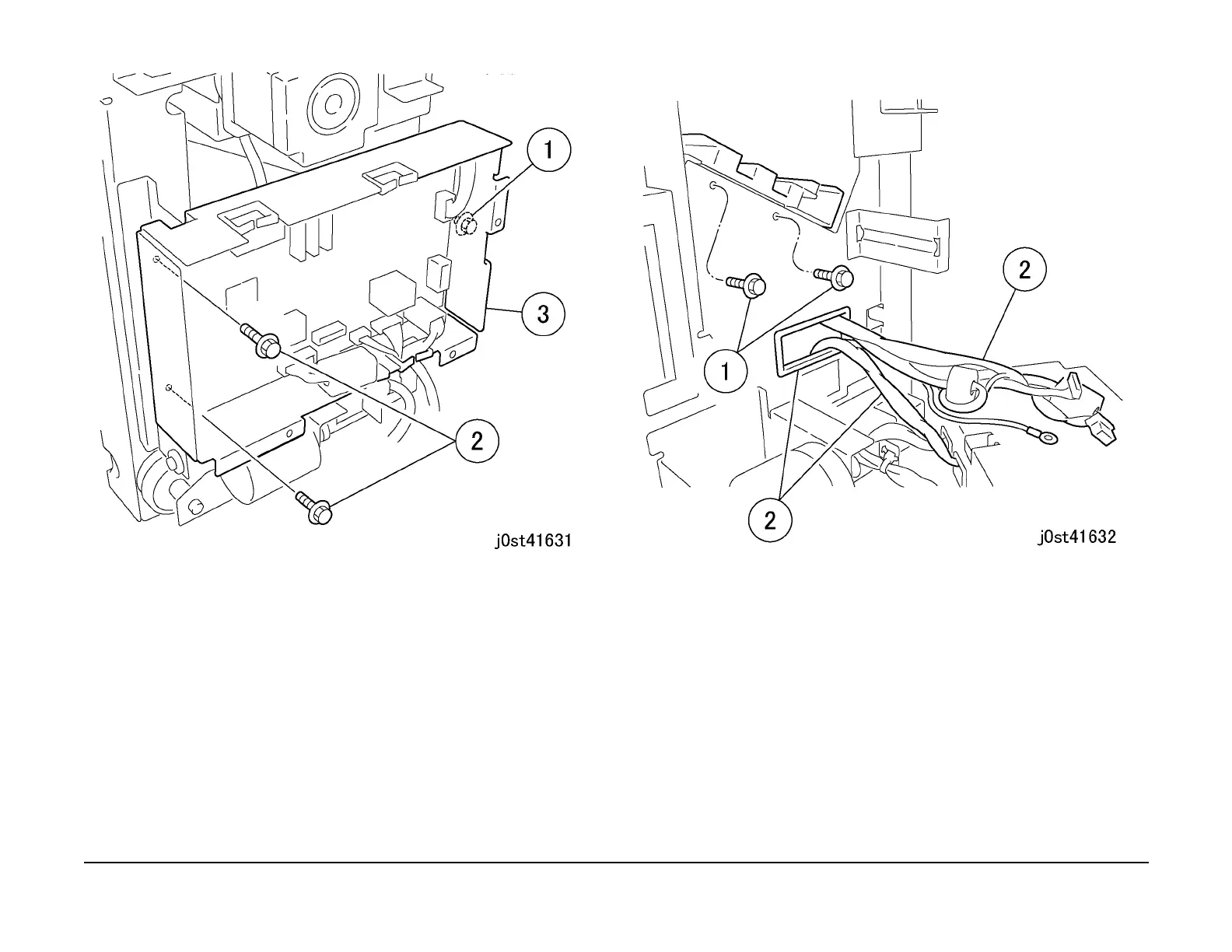

Figure 3 Moving the PWB Bracket
5. Pull out the Wire Harness. (Figure 4)
1. Remove the screws (x2).
2. Pull out the Wire Harness.
Figure 4 Pulling out the Wire Harness
6. Remove the screws. (Figure 5)
1. Disconnect the connector.
2. Remove the screws (x2).
To Next Page
