Xerox WorkCentre 7132 Service Documentation

January 2007
4-174
WorkCentre 7132
REP 16.8.1
Reversion 4.0
Repairs/Adjustments

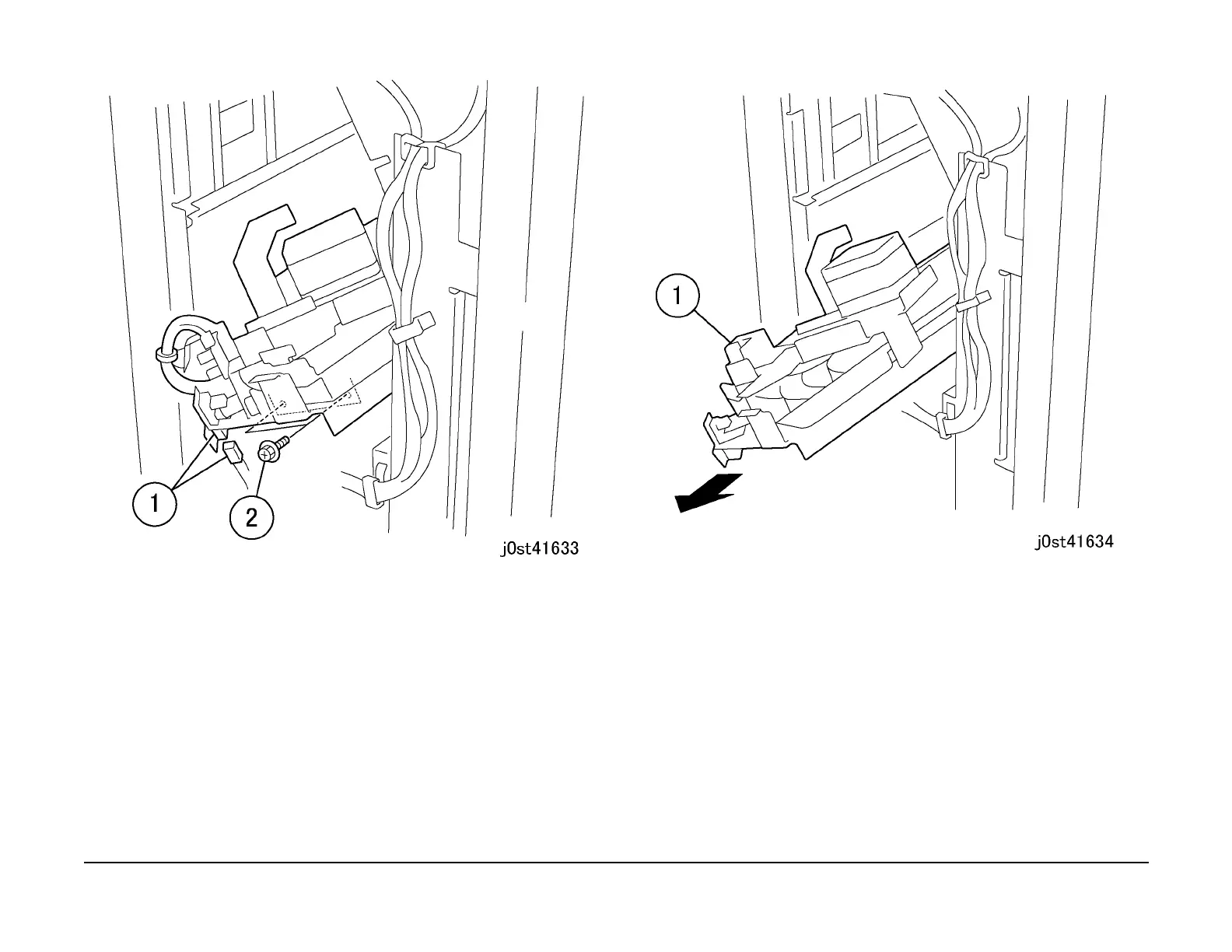

Figure 5 Removing the screws
7. Remove the Rail Assembly. (Figure 6)
1. Remove the Rail Assembly.
Figure 6 Removing the Rail Assembly
8. To remove the Carriage Assembly, move it in the direction of the arrow. (Figure 7)
1. Remove the Carriage Assembly.
