REP 16.8.1
Repairs/Adjustments
Reversion 4.0

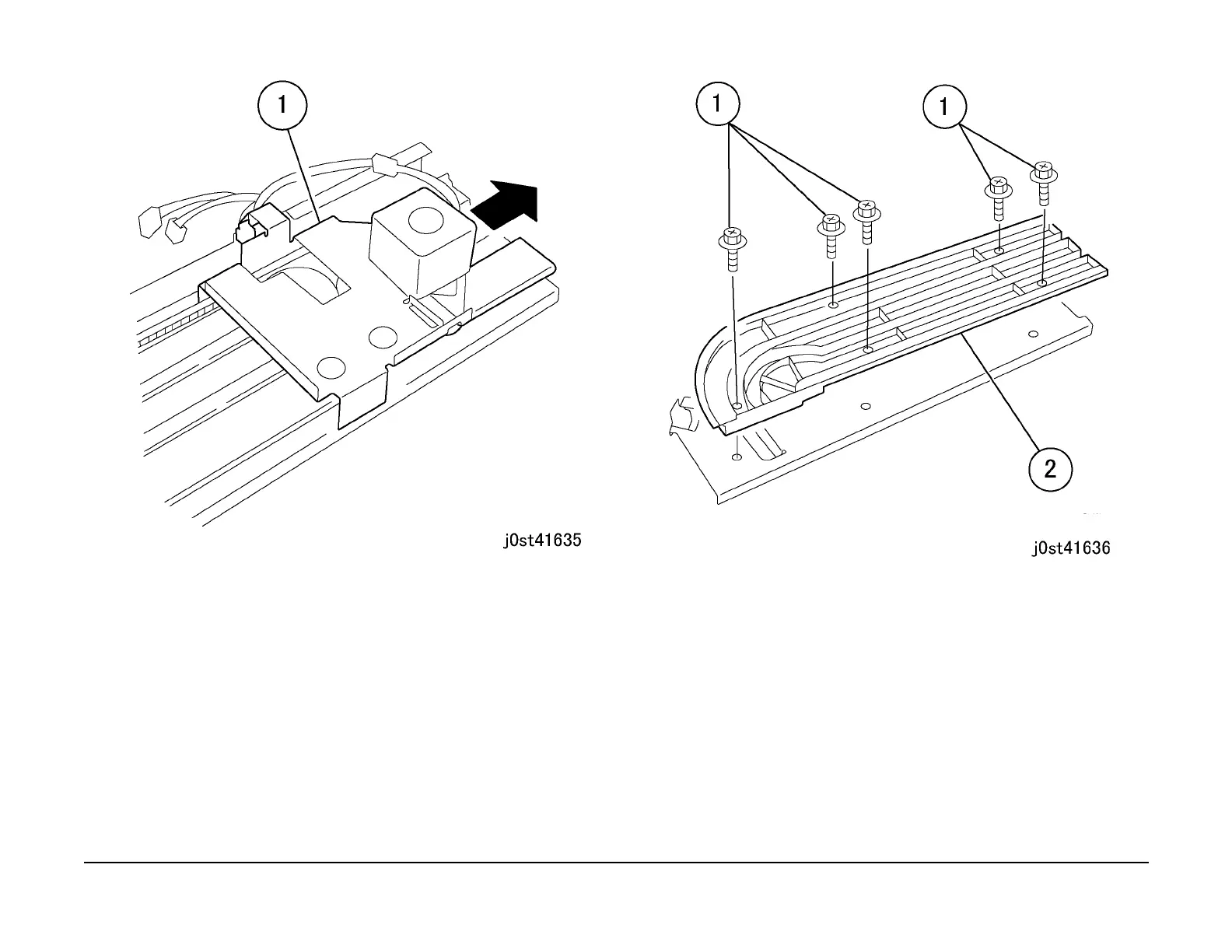

Figure 7 Removing the Carriage Assembly
9. Remove the rail. (Figure 8)
1. Remove the screws (x5).
2. Remove the Staple Unit Rail.
Figure 8 Removing the Staple Unit Rail
