January 2007
4-191
WorkCentre 7132
REP 16.12.2
Repairs/Adjustments
Reversion 4.0

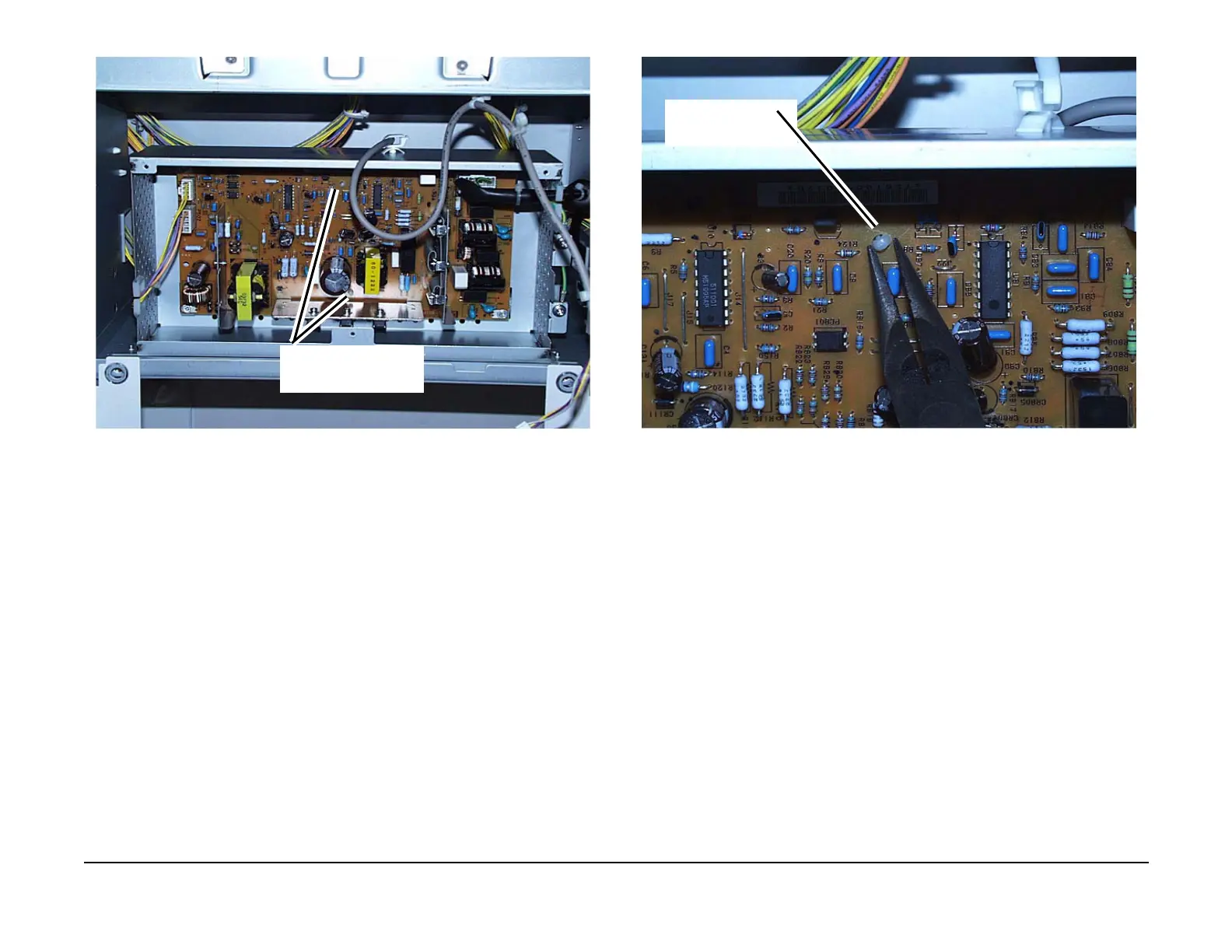

Figure 11 Locating the locking tabs Figure 12 Releasing the locking tabs (2)
9. Remove the Low Voltage Power Supply PWB.
Replacement
1. When installing the Tray Guide, be sure to insert the lower tabs (2) into the Finisher frame.
Locating the locking tabs
(2)
Locking Tab (1 of 2)
