Xerox WorkCentre 7132

January 2007
4-244
WorkCentre 7132
ADJ 9.1.7
Reversion 4.0
Repairs/Adjustments
Adjustment
NOTE: Mis-registration between colors in the Cross feed Direction cannot be adjusted in NVM.
Cross feed Mis-registration is a mechanical problem that can be addressed in the IQ8 Color-to-
Color Mis-registration RAP.
NOTE: For Skew Mis-registration in the Feed Direction go to the IQ8 Color-to-Color Mis-regis-
tration RAP.
NOTE: Color-to-Color Mis-registration of 0.04mm between jobs is allowable.
NOTE: Only the K and Y colors can be adjusted for Color-to-Color mis-registration in the Feed
Direction.

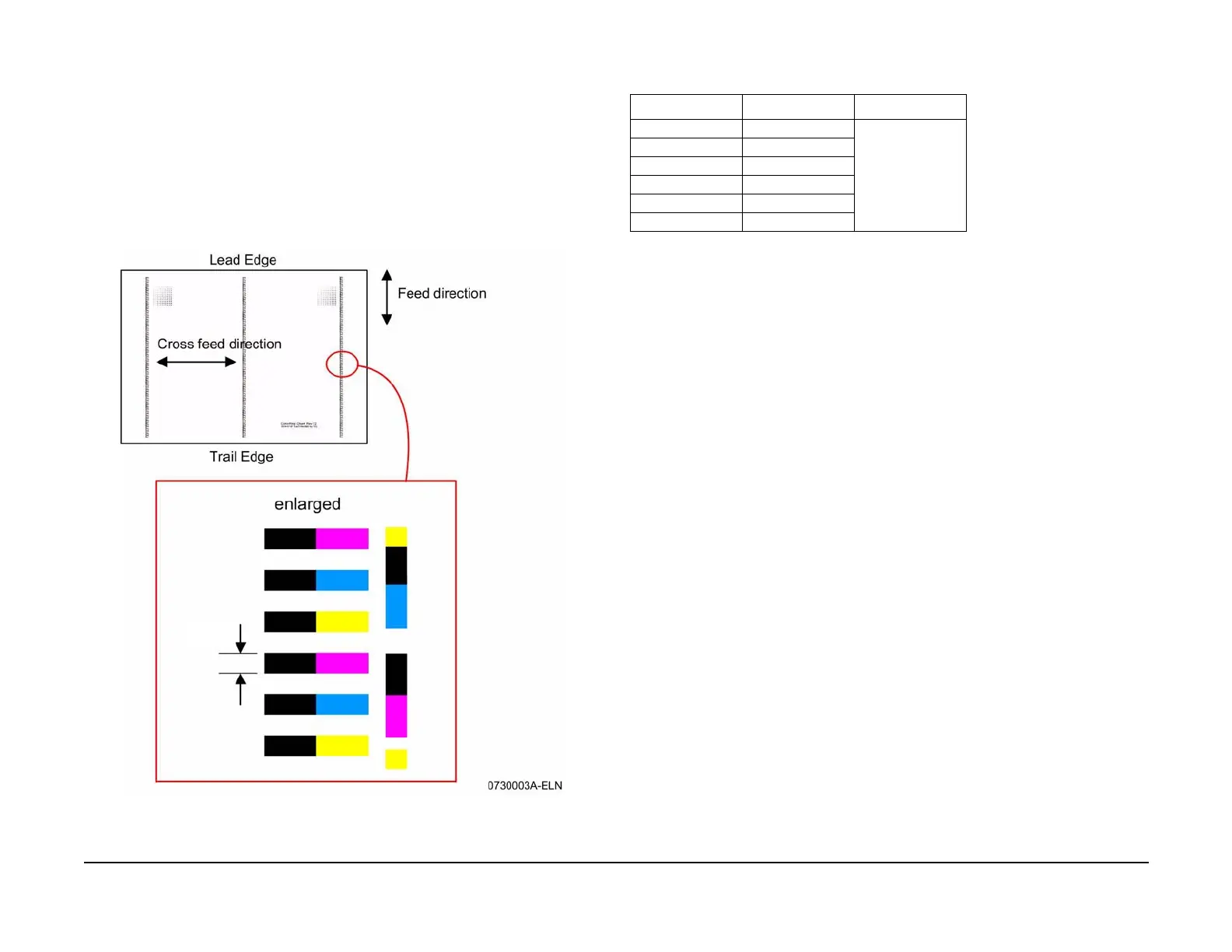

Figure 1 Ideal alignment of colors from test pattern #61
Color-to-Color Offset Displacement on the Lead Edge of the page
NOTE: An NVM increment of 20,000 will move the K or Y color by 0.1mm.
1. If the K color is shifted to the trail edge relative to the colors M and C, increase the value
of the following NVM’s; (Figure 2)
• 760-056
• 760-061
• 760-066
2. If the K color is shifted to the lead edge relative to the colors M and C, decrease the value
of the following NVM’s; (Figure 3)
• 760-056
• 760-061
• 760-066
3. If the Y color is shifted to the trail edge relative to the colors M and C, increase the value
of the following NVM’s; (Figure 2)
• 760-043
• 760-048
• 760-053
4. If the Y color is shifted to the lead edge relative to the colors M and C, decrease the value
of the following NVM’s; (Figure 3)
• 760-043
• 760-048
• 760-053
NOTE: If any NVM values were changed in the above procedures, print 4 consecutive
pages, evaluate the Trail Edge color-to-color registration and proceed to the following
steps.
0.5mm
Table 1 Lead Edge NVM Settings
NVM Default Setting Setting Range
760-043 50,000
0 to 100,000
760-048 50,000
760-053 53,000
760-056 50,000
760-061 50,000
760-066 50,000
