Xerox WorkCentre 7132 Service Documentation

January 2007
4-245
WorkCentre 7132
ADJ 9.1.7
Repairs/Adjustments
Reversion 4.0

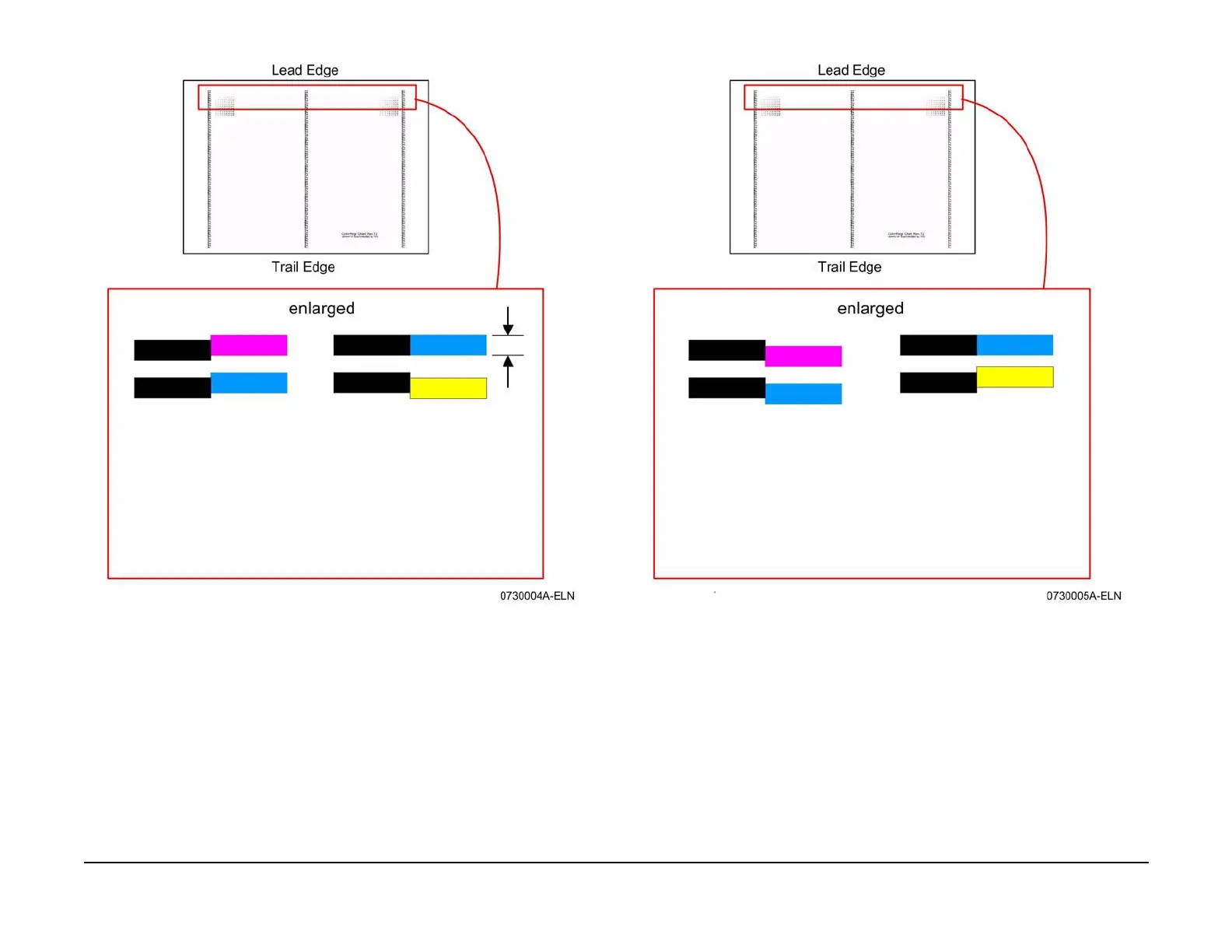

Figure 2 Shift of colors K or Y toward the Trail Edge
Figure 3 Shift of colors K and Y toward the Lead Edge
0.5mm
The color Y shifted toward the Trail
Edge relative to the colors M and C
The color K shifted toward the
Trail Edge relative to the colors M
and C.
The color K is shifted toward the
Lead Edge relative to the colors M
and C.
The color Y is shifted toward the
Lead Edge relative to the colors M
and C.
