January 2007
4-246
WorkCentre 7132
ADJ 9.1.7
Reversion 4.0
Repairs/Adjustments
Color-to-Color Mis-registration on the Trail Edge of the page
1. If the K color is shifted to the Lead Edge relative to the colors M and C, decrease the
value of the following NVM; (Figure 4)
NOTE: An NVM increment of 16 will move the K color by 0.1mm.
• 760-101
2. If the K color is shifted to the Trail Edge relative to the colors M and C, increase the value
of the following NVM; (Figure 5)
NOTE: An NVM increment of 16 will move the K color by 0.1mm.
• 760-101
3. If the Y color is shifted to the Trail Edge relative to the colors M and C, decrease the value
of NVM 760-091 and increase the value of NVM 760-094. (Figure 4)
• For the NVM 760-091, a decrease of 9 will move the Y color by 0.1mm.
• For the NVM 760-094, an increase of 20,000 will move the Y color by 0.1mm.
4. If the Y color is shifted to the Lead Edge relative to the colors M and C, increase the value
of NVM 760-091 and decrease the value of NVM 760-094. (Figure 5)
• For the NVM 760-091, an increase of 9 will move the Y color by 0.1mm.
• For the NVM 760-094, a decrease of 20,000 will more the Y color by 0.1mm.

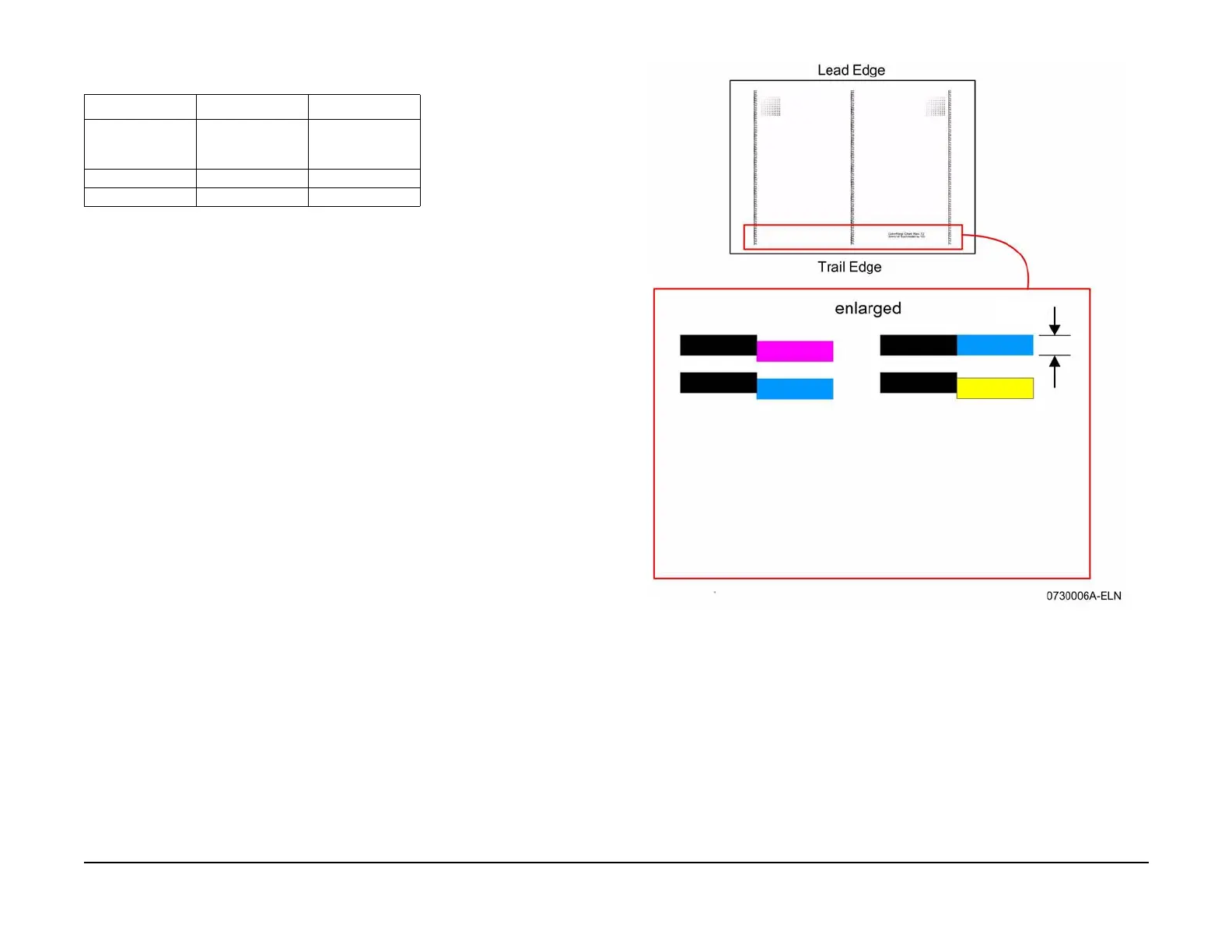

Figure 4 Shift of colors K and Y
Table 2 Trail Edge NVM Settings
NVM Default Settings Setting Range
760-091 87 0 to 200
(100 or above is
not recommended)
760-094 55000 0 to 100,000
760-101 20235 20139 to 20274
The color K is shifted toward the
Lead Edge.
The color Y is shifted toward the
Trail Edge.
0.5mm
To Next Page
