ADJ 15.1.6
Reversion 4.0
Repairs/Adjustments

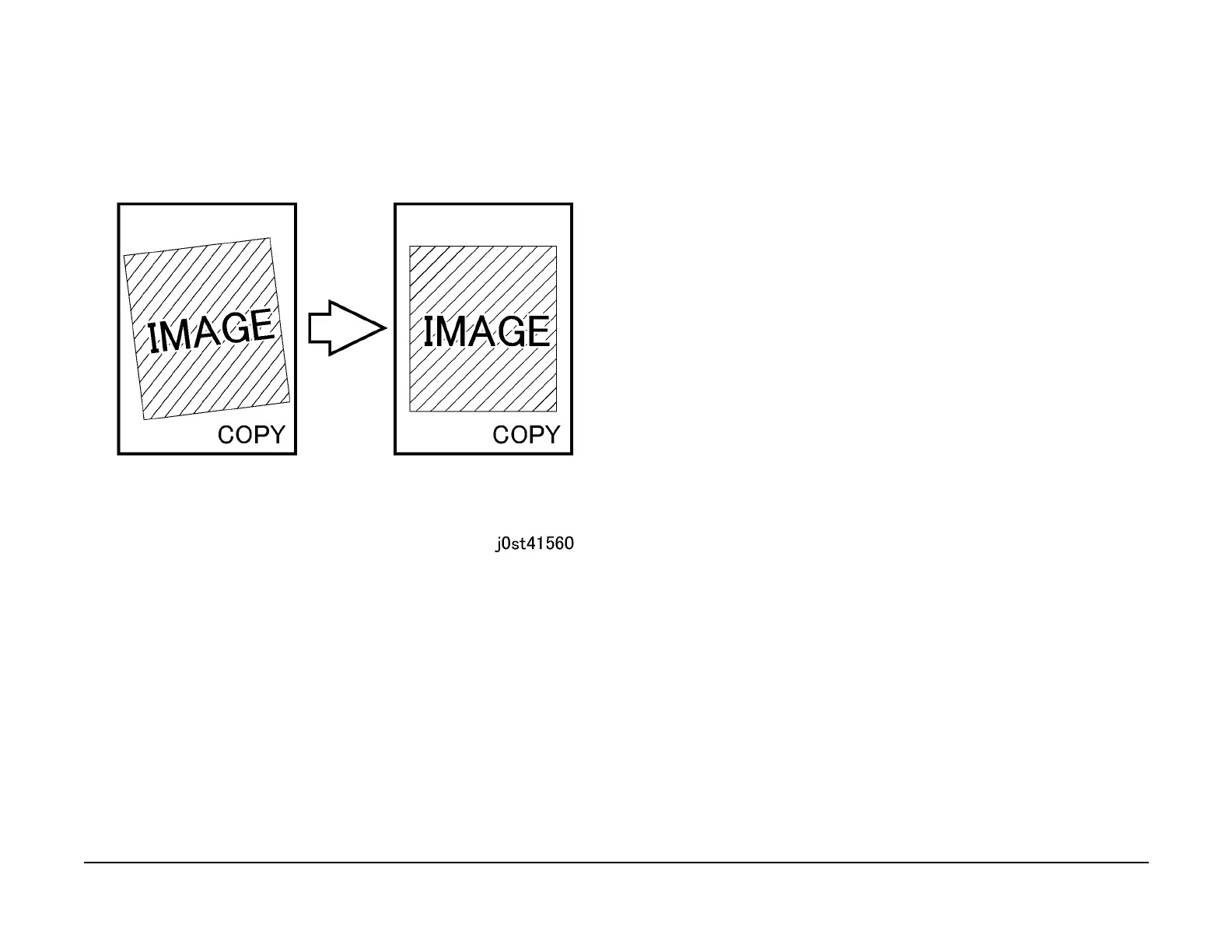

Figure 4 Output copy after adjustment
3. Reinstall the DADF Rear Cover.
4. After adjustment, carry out DADF Side Edge Registration Adjustment (ADJ 15.1.1) and
DADF Lead Edge Registration (ADJ 15.1.4).
