Xerox WorkCentre 7132

January 2007
4-4
WorkCentre 7132
REP 1.1.1
Reversion 4.0
Repairs/Adjustments

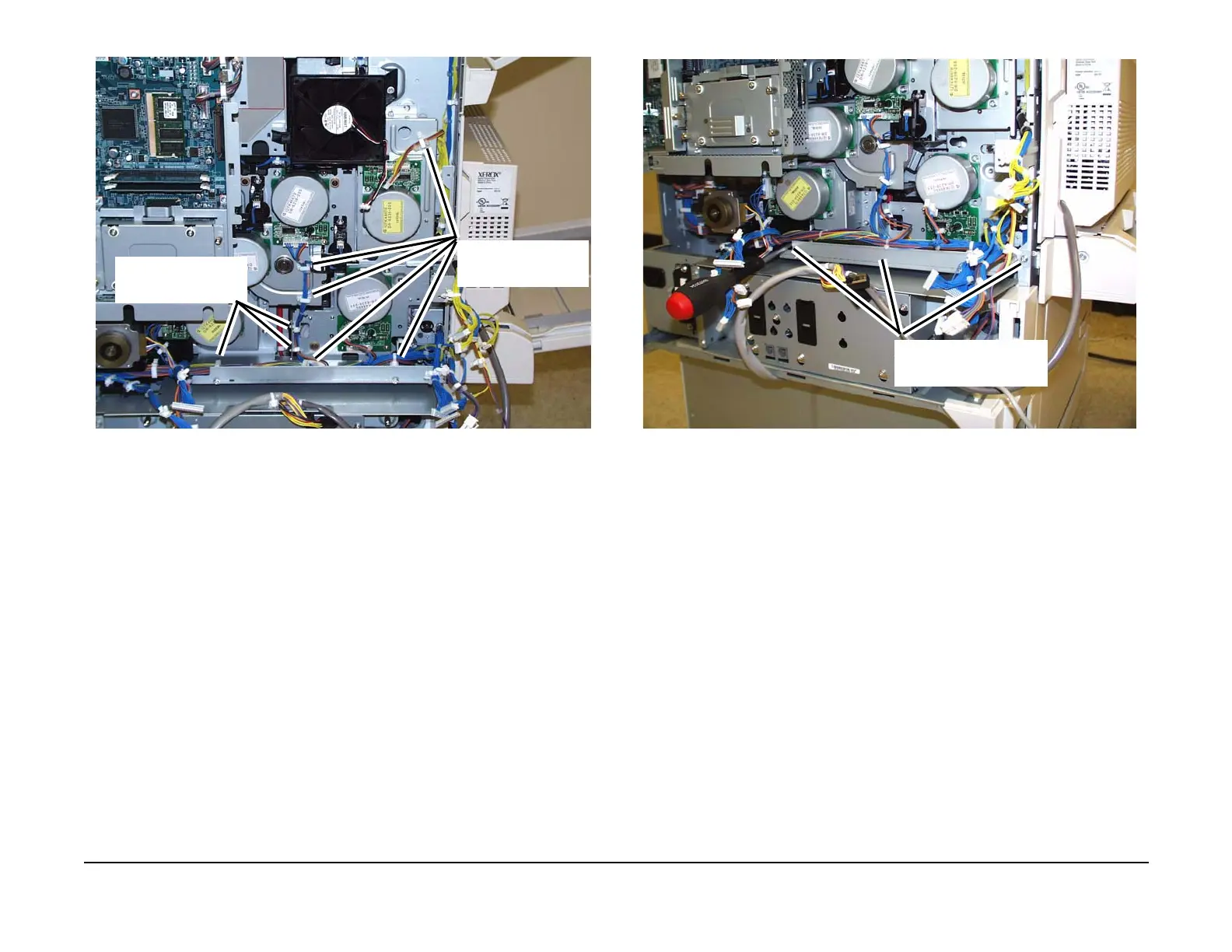

Figure 3 Disconnecting the cable ties and opening cable clamps
7. Remove the lower support bracket. (Figure 4)
Figure 4 Removing the lower bracket
8. Open the Left Side Upper Cover and remove the Fuser Assembly. (Figure 5)
1
Open cable clamps and
remove cable ties
2
Open cable clamps and
remove cable ties
1
Remove the screws (2)
then remove the bracket
