Xerox WorkCentre 7132 Service Documentation

January 2007
4-40
WorkCentre 7132
REP 4.2.5
Reversion 4.0
Repairs/Adjustments

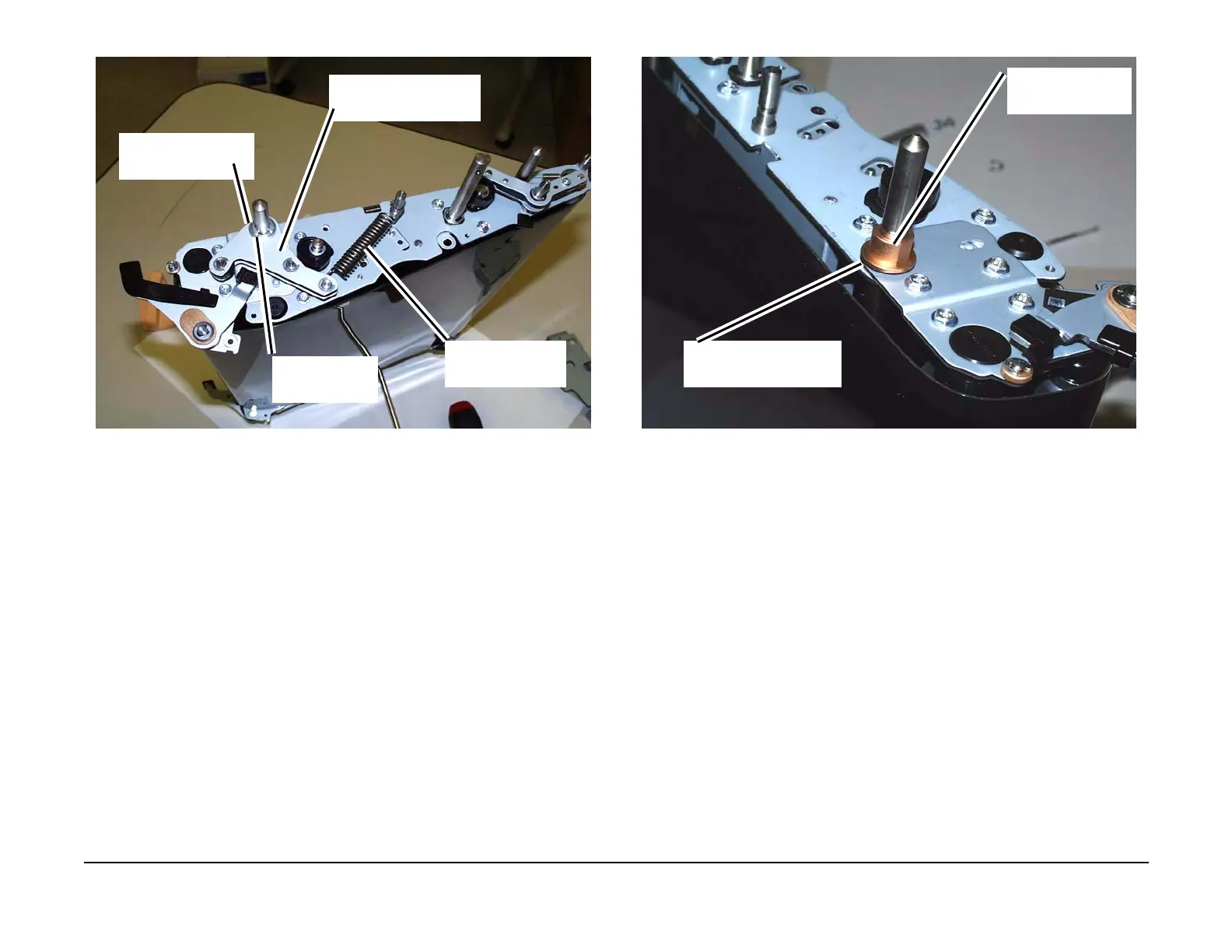

Figure 7 Removing the follower lever
12. Remove the bushing and E-ring. (Figure 8)
Figure 8 Removing the bushing and E-ring
13. Remove the Backup Roll bracket. (Figure 9)
2
Remove the E-ring
1
Disconnect the
spring
3
Remove the washer
4
Remove the follower lever
1
Remove the bushing
2
Remove the E ring located
under the bushing
