Making Connections in the SRUs
4-28 ADSP-21368 SHARC Processor Hardware Reference

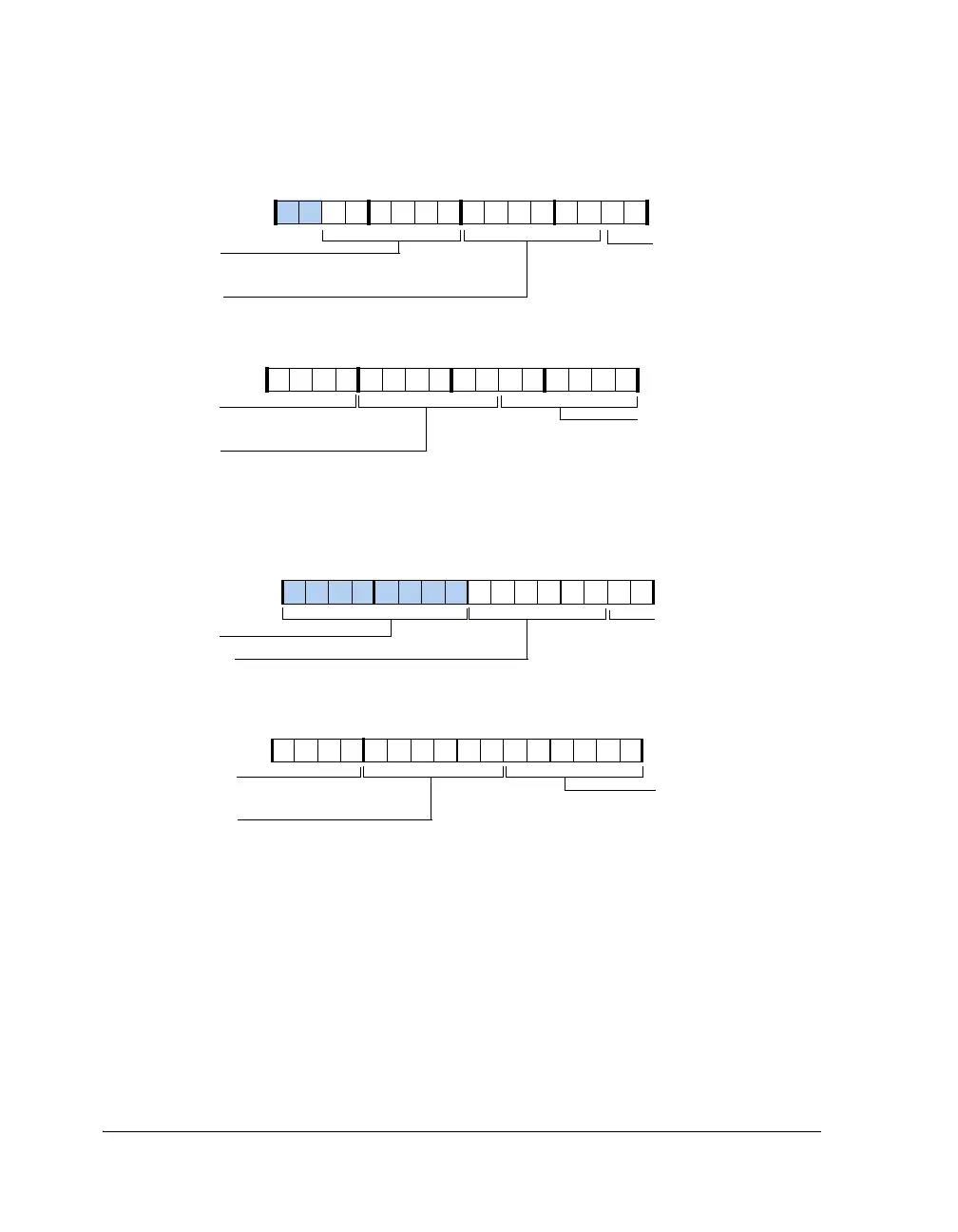

Figure 4-23. SRU_DAT5 Register
Figure 4-24. SRU_DAT6 Register
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16
0000000000000000
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
0000000000000000
Input Data Port 4 Data
Channel A Input
IDP4_DAT_I
IDP6_DAT_I
IDP7_DAT_I
Input Data Port 7 Data Input
IDP5_DAT_I
Input Data Port 5 Data Input
SRU_DAT5 (0x2445)
IDP6_DAT_I
Reset = 0x00000000
Input Data Port 6 Data Input
SPDIF Receive Data Input
DIR_DAT_I
Input Data Port 6
Data Input
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16
0000000000000000
Reserved
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
0000000000000000
Serial Port 7 Data
Channel A Input
SPORT7_DA_I
Serial Port 7 Data Channel BA Input
SPORT7_DB_I
Serial Port 6 Data Channel B Input
SPORT6_DB_I
Serial Port 6 Data
Channel A Input
SPORT6_DA_I
SRU_DAT6 (0x2446)
SPORT7_DA_I
Reset = 0x00000000
Serial Port 7 Data Channel A Input
