R01UH0823EJ0100 Rev.1.00 Page 1686 of 1823

Jul 31, 2019

RX23W Group 50. Flash Memory (FLASH)

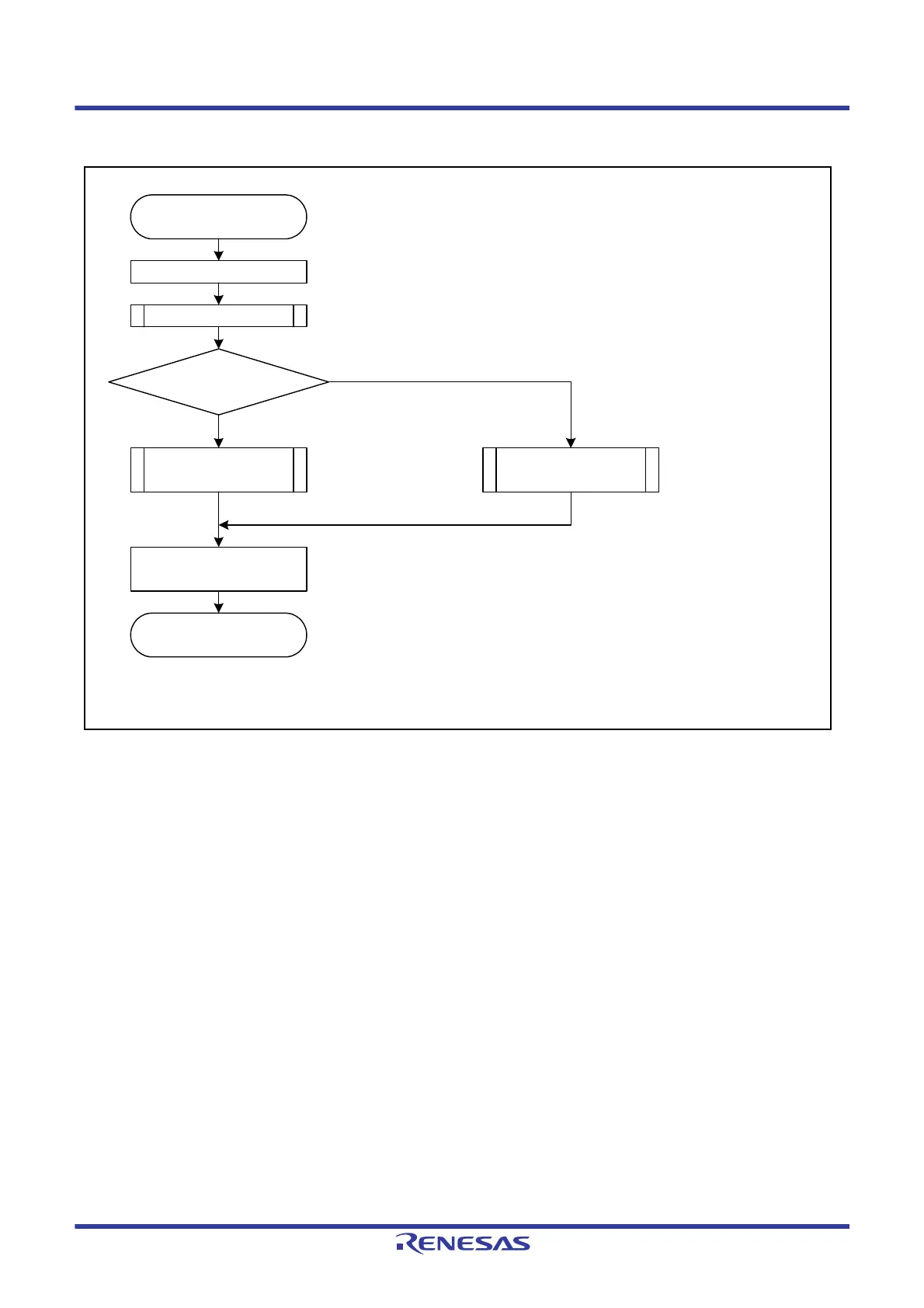

Figure 50.9 Procedure for Transition from ROM/E2 DataFlash Read Mode to E2 DataFlash P/E Mode

Note 1. t

DSTOP

: STOP recovery time (Refer to the Electrical Characteristics chapter.)

Note 2. The ROM cannot be rewritten in low-speed operating mode.

Start in ROM/E2 DataFlash

read mode

FENTRYR register = AA80h

Yes

End in E2 DataFlash

P/E mode

OPCCR.OPCM[2:0] bits

= 000b?

Set E2 DataFlash P/E mode

High-speed operating mode Middle-speed operating mode

Set the FCLK frequency in

the FISR.PCKA[4:0] bits

Wait for t

DSTOP

Set 10h in

the FPMCR register

FPR register = A5h

FPMCR register = 10h

FPMCR register = EFh

FPMCR register = 10h

FPR register = A5h

FPMCR register = 50h

FPMCR register = AFh

FPMCR register = 50h

Set 50h in

the FPMCR register
