RX23W Group 51. Electrical Characteristics

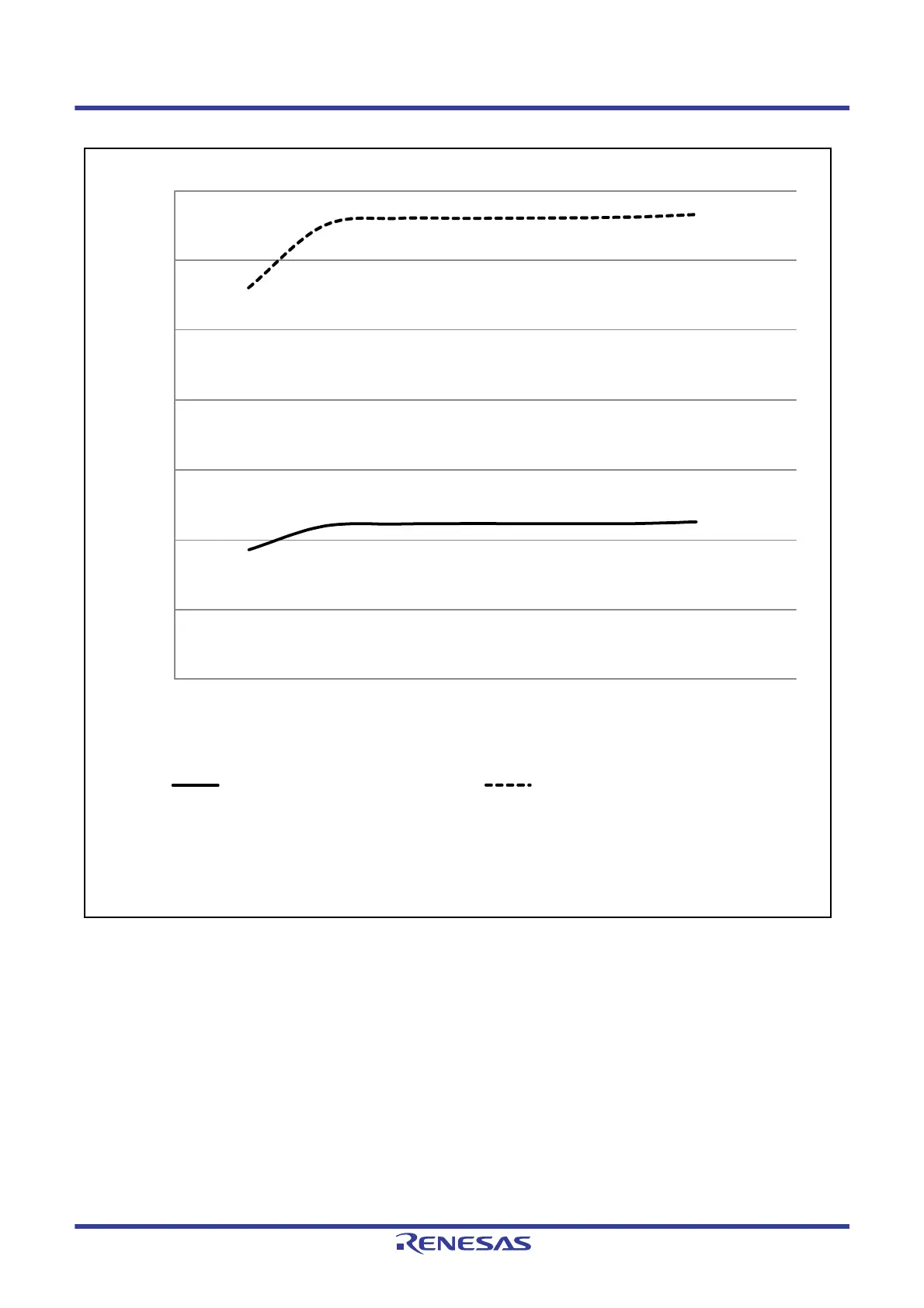

Figure 51.3 Voltage Dependency in Low-Speed Operating Mode (Reference Data)
Note 1. All peripheral operations except any BGO operation are operating normally. Indicates the average of the typical samples
through actual measurement during product evaluation.
Note 2. All peripheral operations except any BGO operation are operating at maximum. Indicates the average of the upper-limit
samples through actual measurement during product evaluation.
0
10
20
30
40
50
60
70
1.5 2.0 2.5 3.0 3.5 4.0
ICC (mA)
VCC (V)
Ta = 25°C, ICLK = 32 kHz
*1
Ta = 85°C, ICLK = 32 kHz
*2
