R01UH0823EJ0100 Rev.1.00 Page 583 of 1823

Jul 31, 2019

RX23W Group 23. Multi-Function Timer Pulse Unit 2 (MTU2a)

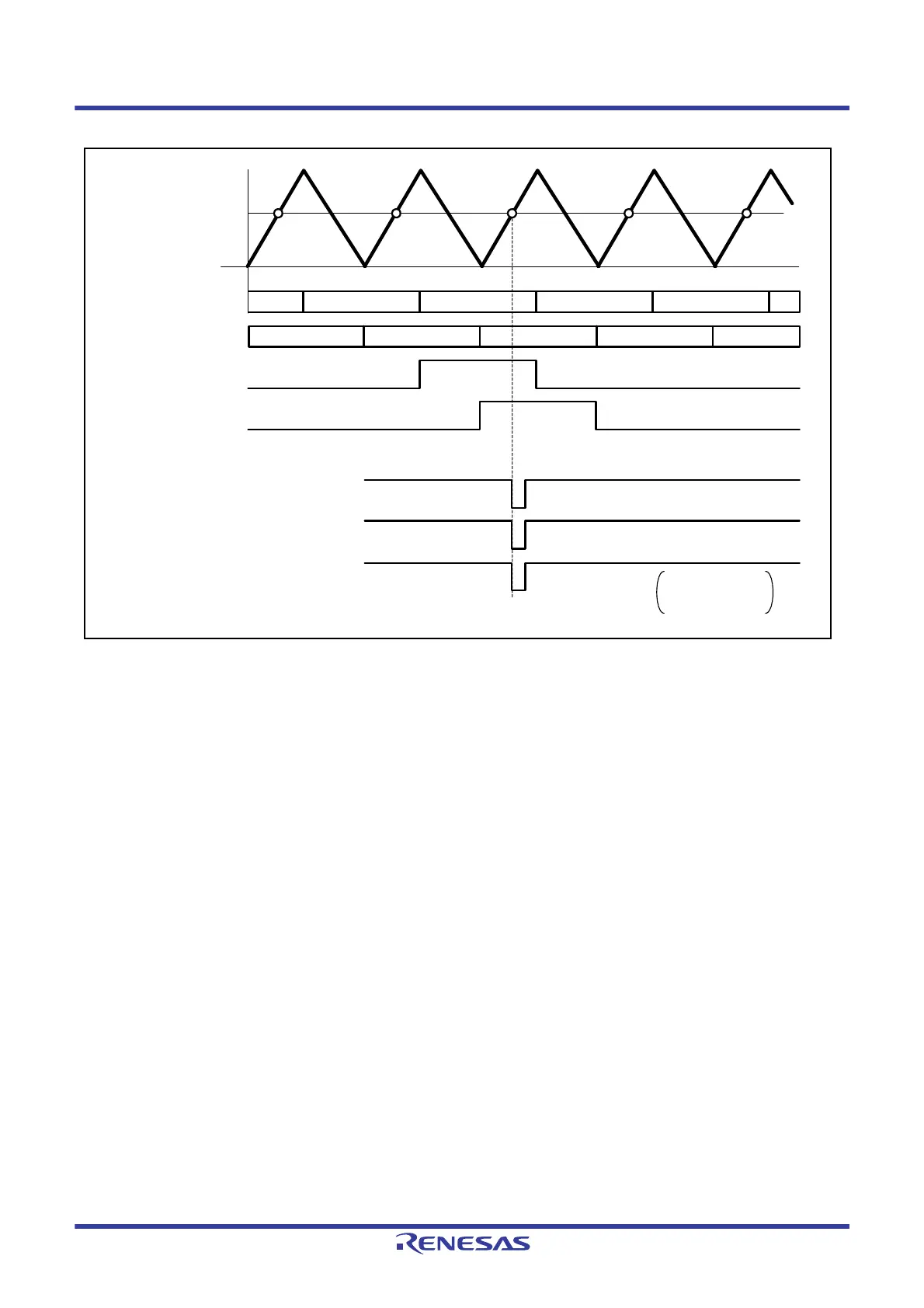

Figure 23.76 Example of A/D Converter Start Request Signal (TRG4AN) Operation Linked with Interrupt

Skipping (when the output of TRG4AN in counting up by TCNT is enabled)

TGIA3 interrupt

skipping counter

TCIV4 interrupt

skipping

counter

TGIA3 A/D request-enabled

period

TCIV4 A/D request-enabled

period

When linked with TGIA3 and TCIV4

interrupt skipping

When linked with TGIA3

interrupt skipping

When linked with TCIV4

interrupt skipping

MTU4.TADCORA

MTU4.TCNT

00h 01h 00h 01h02h

A/D converter start request (TRG4AN)

Note: When the interrupt skipping count is set to two.

TADCR.UT4AE = 1

TADCR.DT4AE = 0
