Xerox WorkCentre 7132 Service Documentation

January 2007
4-162
WorkCentre 7132
REP 16.5.2
Reversion 4.0
Repairs/Adjustments

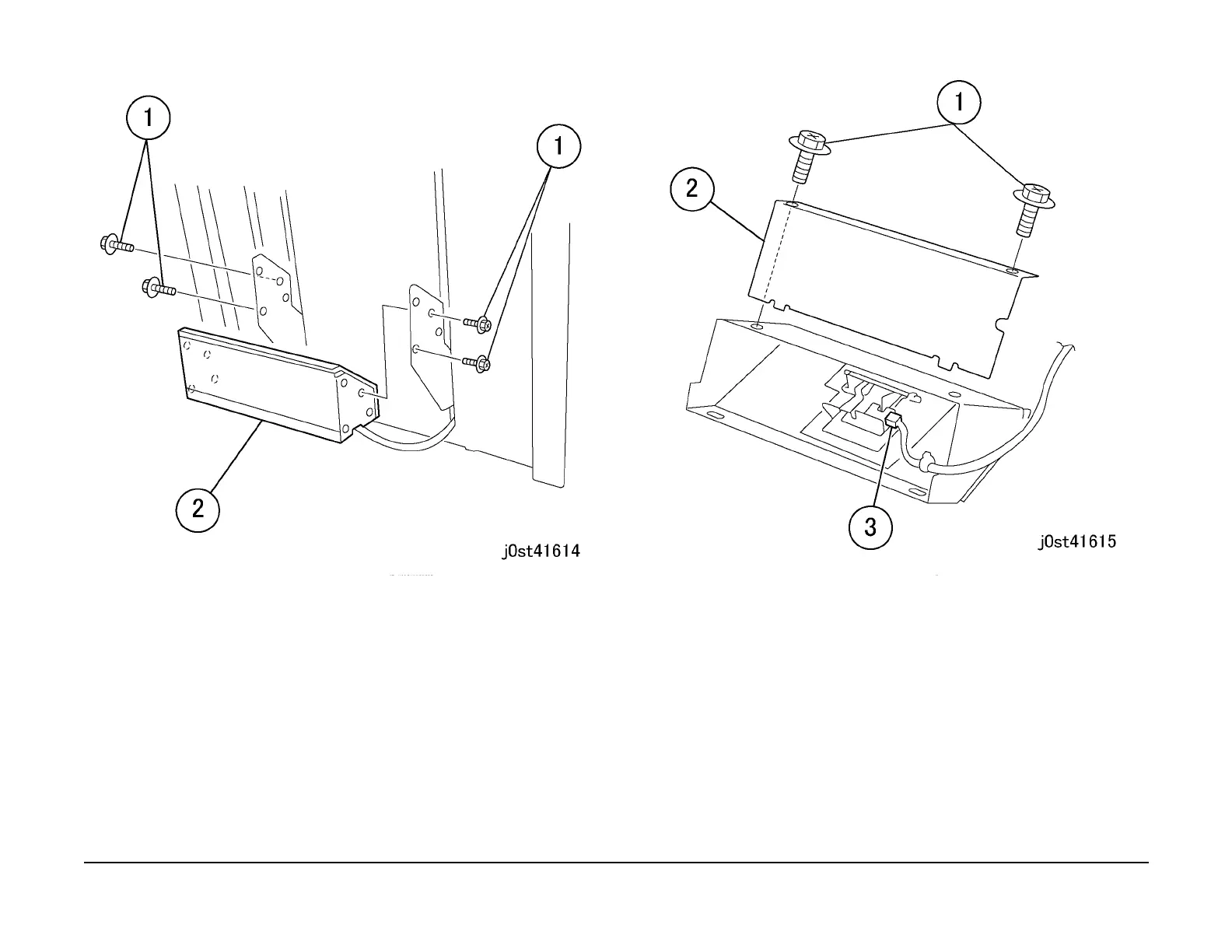

Figure 3 Removing the bracket
5. Disconnect the connector. (Figure 4)
1. Remove the screws (x2).
2. Remove the plate.
3. Disconnect the connector.
Figure 4 Disconnecting the connector
6. Remove the Knob Screws. (Figure 5)
1. Remove the Knob Screws (x2).
