Xerox WorkCentre 7132 Service Documentation

January 2007
4-163
WorkCentre 7132
REP 16.5.2
Repairs/Adjustments
Reversion 4.0

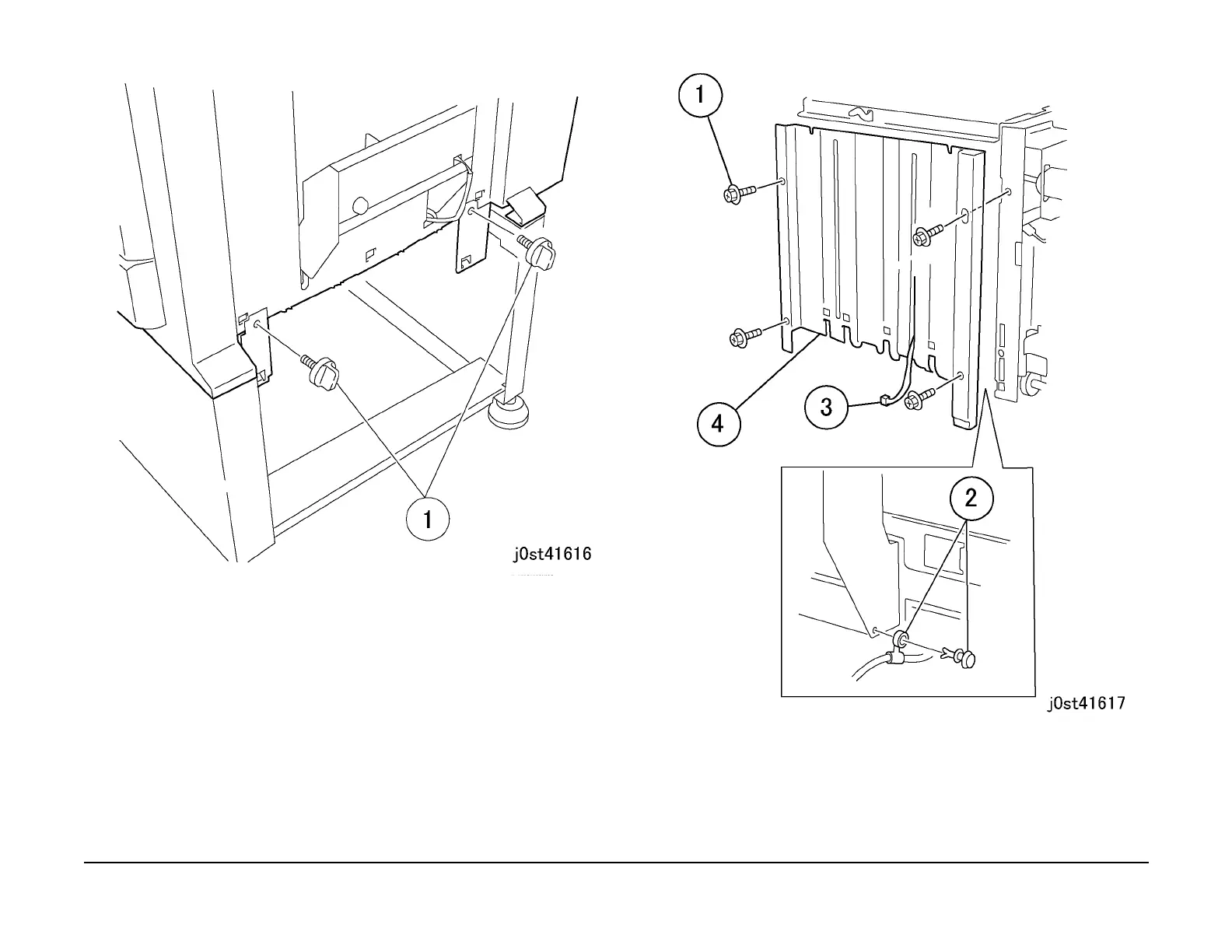

Figure 5 Removing the Knob Screws
7. Remove the Tray Guide. (Figure 6)
1. Remove the screws (x4).
2. Remove the rivet to remove the clamp.
3. Remove the wire from the hole.
4. Remove the Tray Guide.
Figure 6 Removing the Tray Guide
8. Remove the Set clamp clutch. (Figure 7)
1. Remove the clamp.
2. Remove the screw.
3. Remove the spring.
