Xerox WorkCentre 7132 Service Documentation

January 2007
4-188
WorkCentre 7132
REP 16.12.2
Reversion 4.0
Repairs/Adjustments

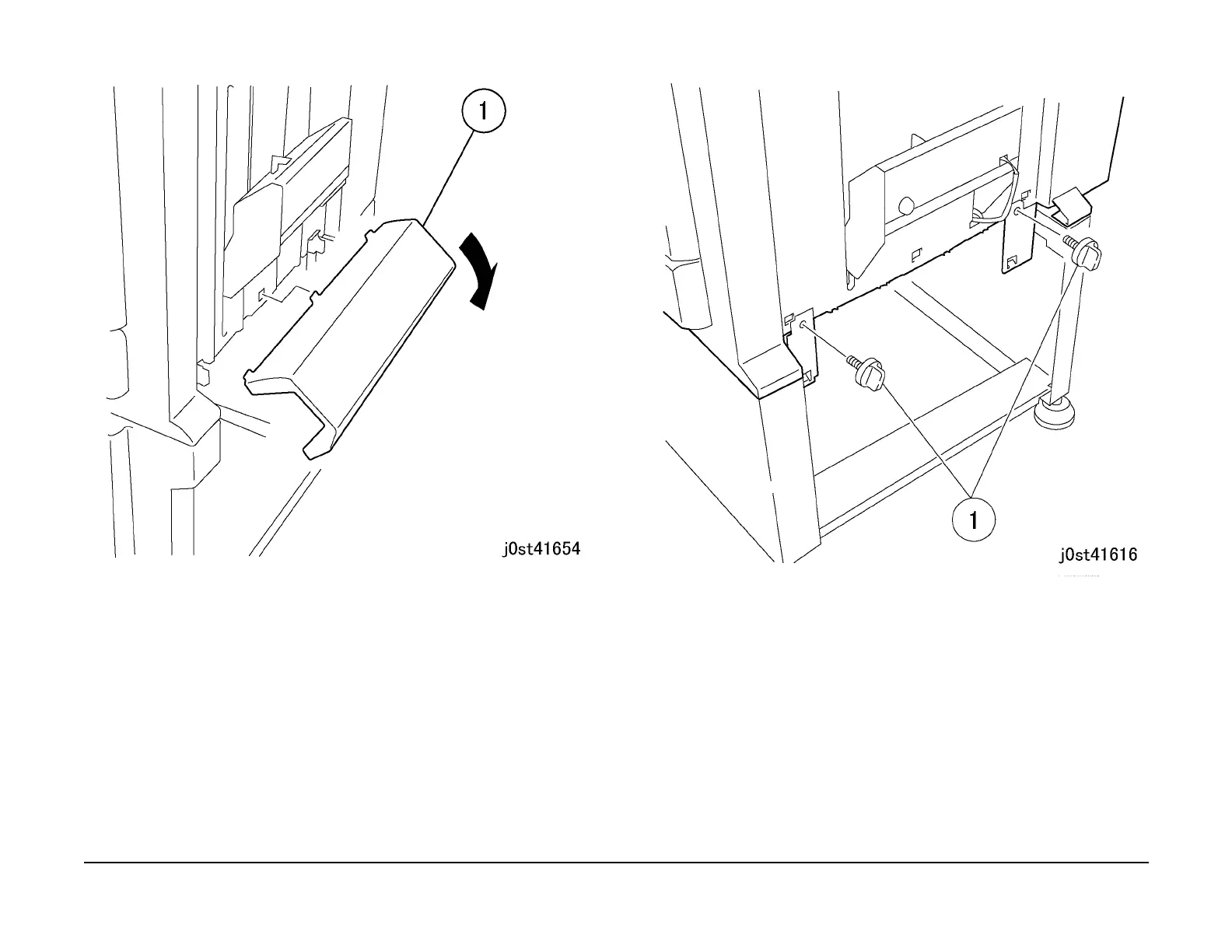

Figure 5 Removing the Right Cover
2. Remove the knob screws. (Figure 6)
1. Remove the knob screws (2)
Figure 6 Removing the knob screws (2)
2. Remove the Tray Guide. (Figure 7)
1. Remove the screws (4).
2. Remove the plastic rivet to remove the wire harness clamp.
3. Remove the wire harness from the Tray Guide opening.
4. Remove the Tray Guide.
