Xerox WorkCentre 7132 Service Documentation

January 2007
4-189
WorkCentre 7132
REP 16.12.2
Repairs/Adjustments
Reversion 4.0
Figure 7 Removing the Tray Guide
5. Remove the screws (3) from Low Voltage Power Supply housing cover. (Figure 8)

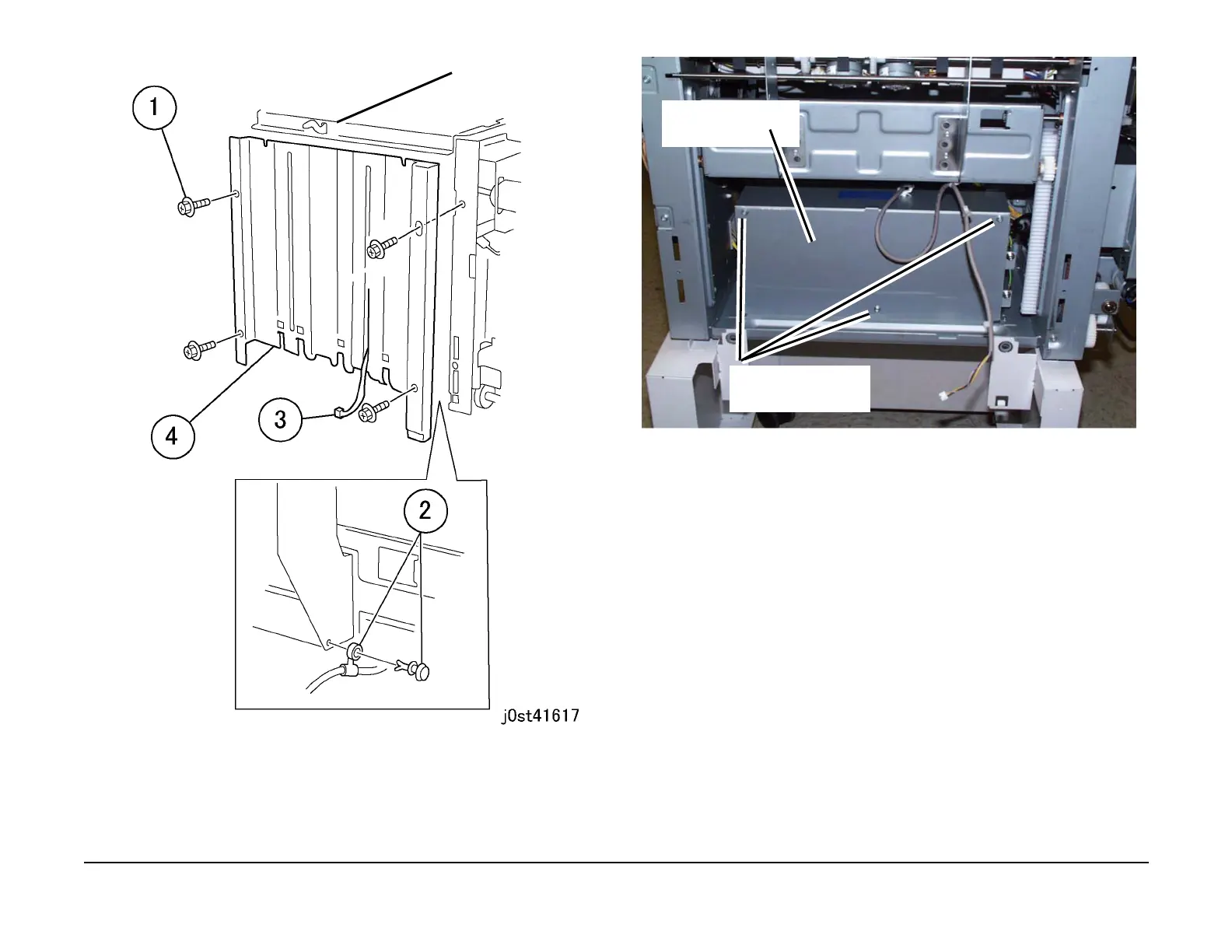

Figure 8 Removing the LVPS housing cover
6. Disconnect the connectors (3) from the Power Supply. (Figure 9)
NOTE: Top
cover must be opened
1
Remove the screws (3)
2
Remove the Cover
