Xerox WorkCentre 7132 Service Documentation

January 2007
4-6
WorkCentre 7132
REP 1.1.1
Reversion 4.0
Repairs/Adjustments

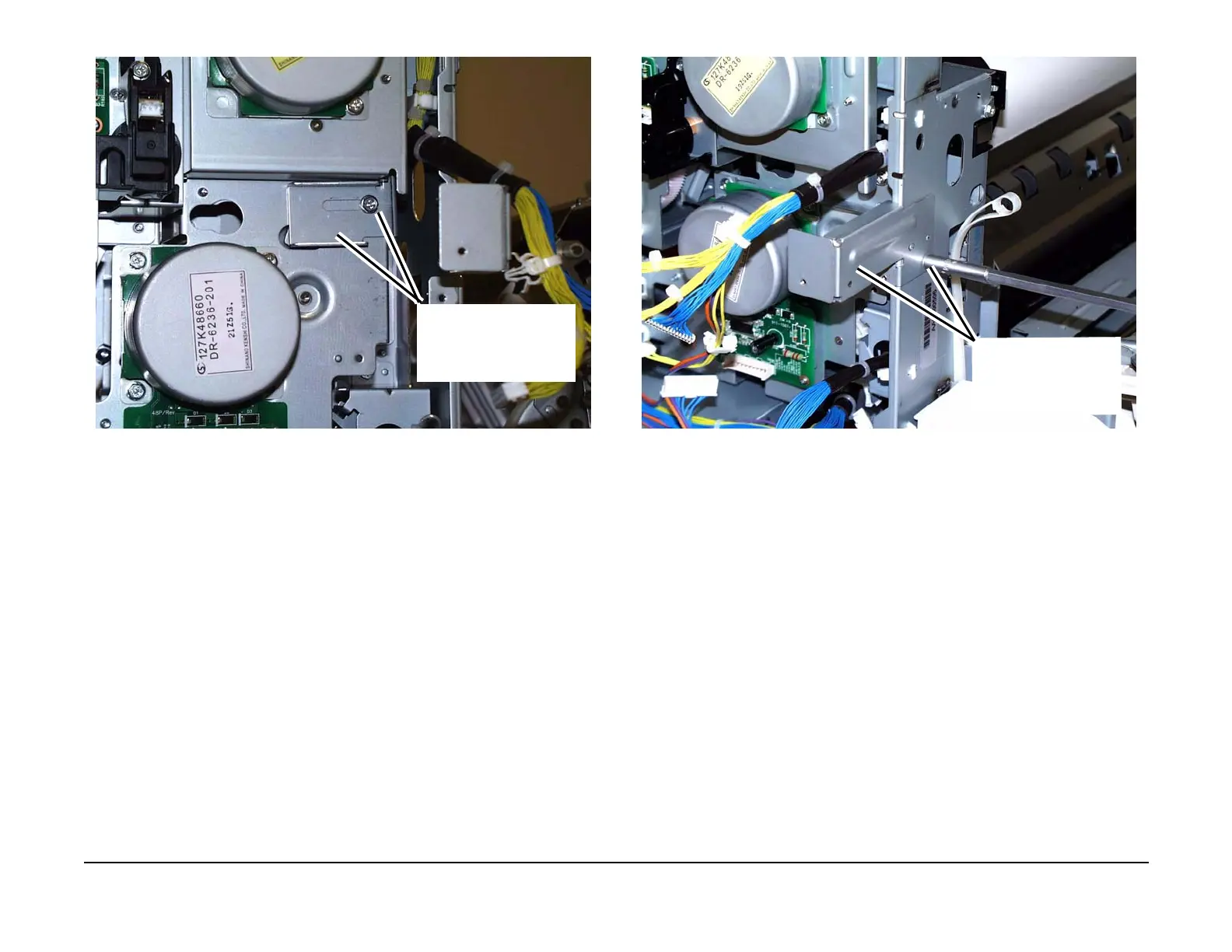

Figure 7 Moving the bracket to the left
11. Remove the side support bracket. (Figure 8)
Figure 8 Removing the side support bracket
12. Remove the Clutch bracket. (Figure 9)
1
Loosen the screw (1) and
move the bracket to the left,
then tighten the screw.
1
Remove the screw (1)
then remove the side sup-
port bracket
