January 2007
4-7
WorkCentre 7132
REP 1.1.1
Repairs/Adjustments
Reversion 4.0
NOTE: When removing the Clutch Bracket, be careful to recover the washer from
between the Clutch Bracket and the Clutch shaft.

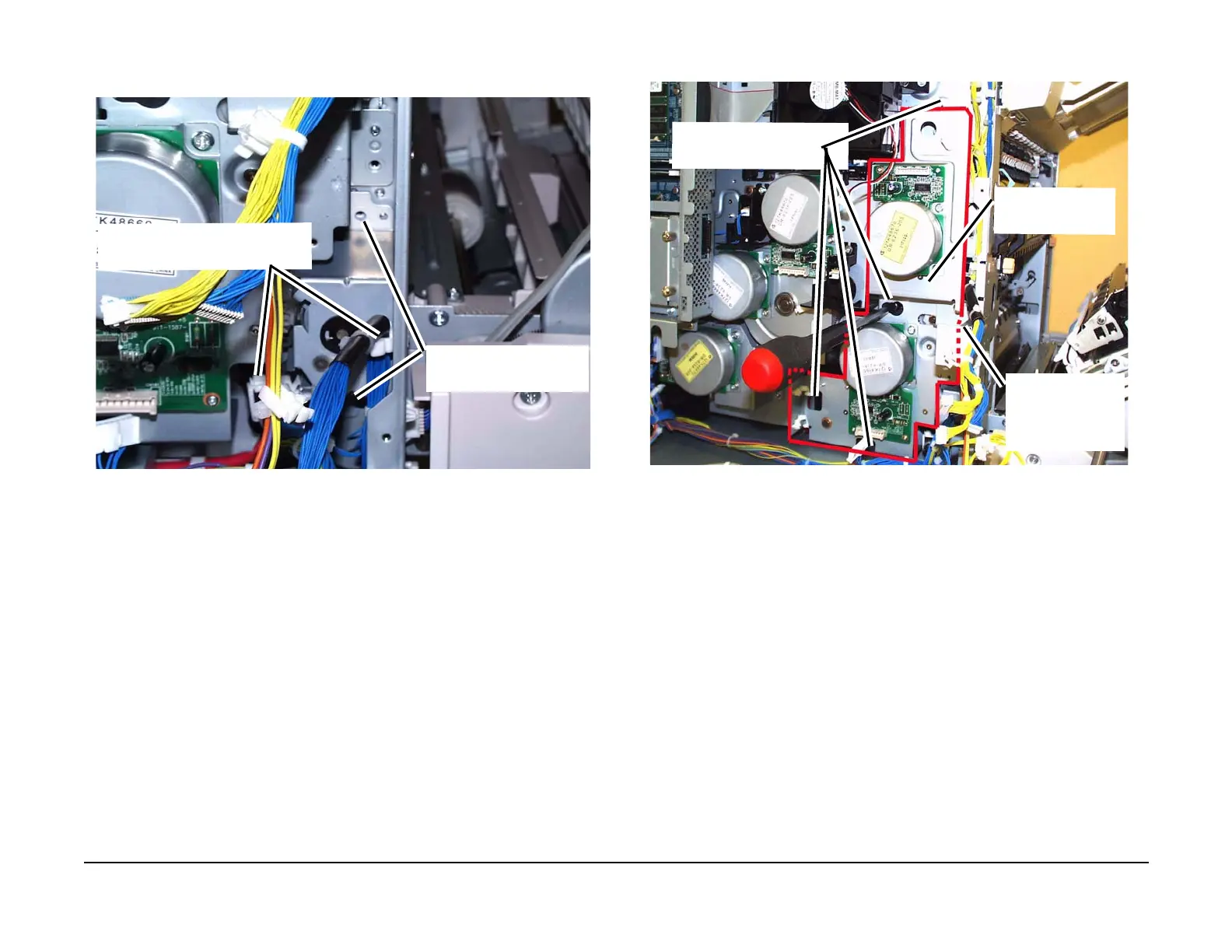

Figure 9 Removing the Clutch bracket
13. Remove the screw (6) from the Main Drive Assembly. (Figure 10, Figure 11)
NOTE: Removing the (6) screws is shown in two steps in the following two figures.
Figure 10 Removing the screws (4) first
2
Remove the screws (2) then
remove the Clutch bracket
1
Disconnect the cable clamps from the
Clutch bracket and metal frame
1
Remove the first screws (4)
2
The remaining
screws (2) are
located here
Main Drive Assembly
To Next Page
