Xerox WorkCentre 7132 Service Documentation

January 2007
4-8
WorkCentre 7132
REP 1.1.1
Reversion 4.0
Repairs/Adjustments

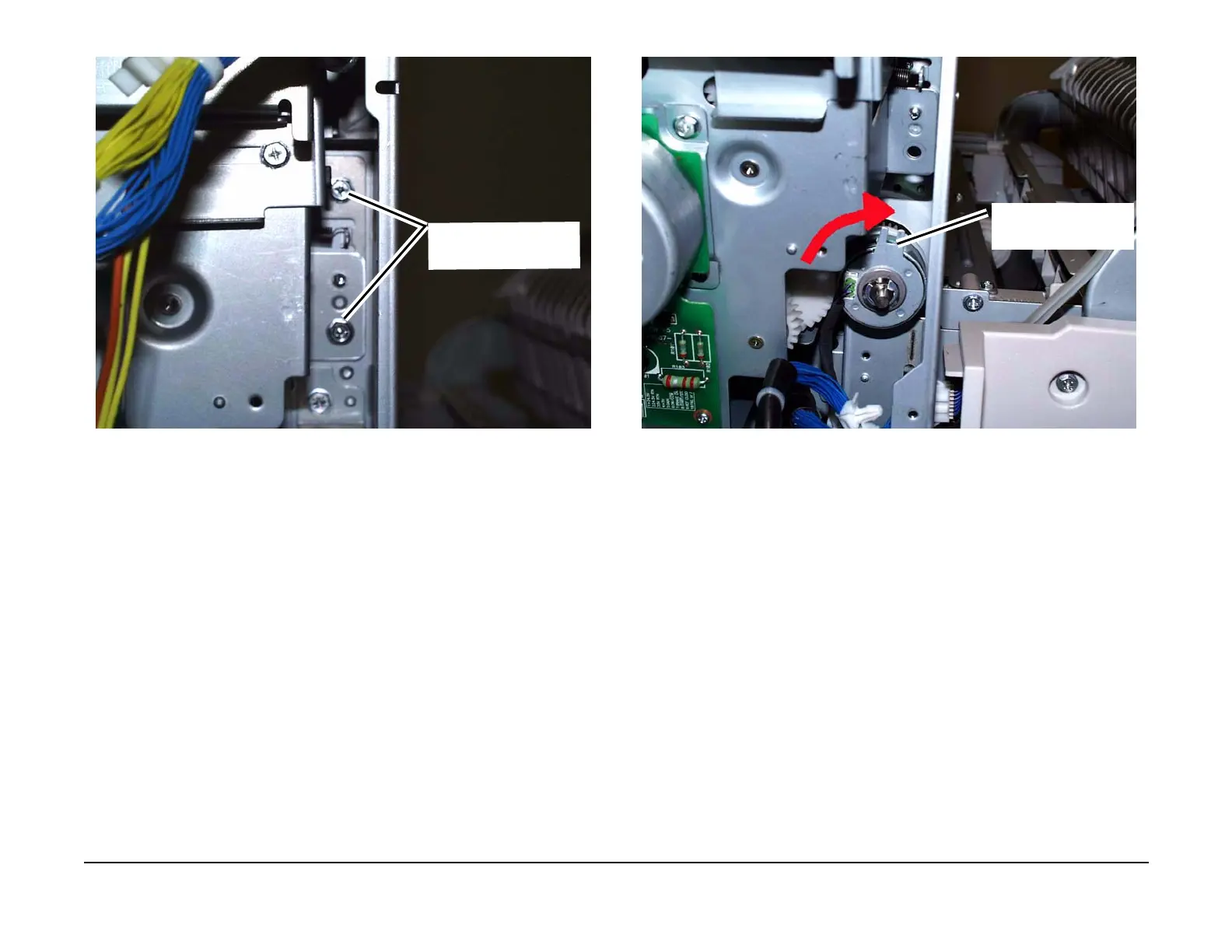

Figure 11 Removing the remaining (2) screws
14. Rotate the Clutch clockwise to position the Clutch away from the Main Drive Assembly.
(Figure 12)
Figure 12 Preparing to remove the Main Drive Assembly
15. Remove the Main Drive Assembly. (Figure 13)
Remove the remaining
screws (2)
Rotate the Clutch away
from the Main Drive
Assembly
