Xerox WorkCentre 7132 Service Documentation

January 2007
4-33
WorkCentre 7132
REP 4.2.2
Repairs/Adjustments
Reversion 4.0

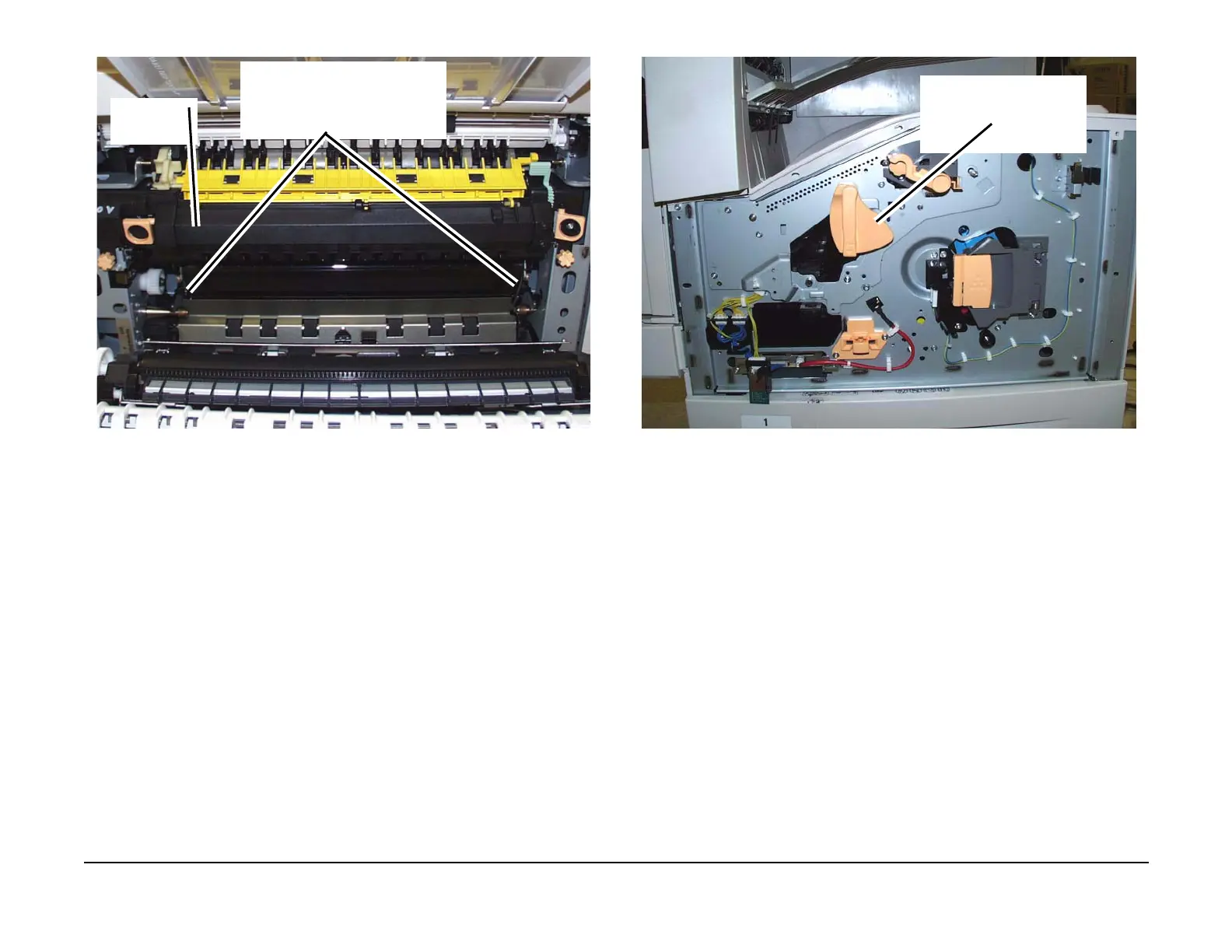

Figure 6 Moving the levers (2) to the retracted position
11. Place the IBT Belt Tension Handle on the shaft and rotate the Handle counter clockwise
to the down position put tension on the IBT Belt. (Figure 7)
Figure 7 Re-tension the IBT Belt
12. Remove the screws (4) and the Tension Handle. (Figure 8)
Move the levers (2) to the up posi-
tion. It will be necessary to force
the levers by flexing them to so that
the black tabs can clear the IBT
Module frame.
Fuser Module
Use the handle to put tension
on the IBT Belt by rotating the
handle down.
