Xerox WorkCentre 7132 Service Documentation

January 2007
4-45
WorkCentre 7132
REP 4.2.7
Repairs/Adjustments
Reversion 4.0

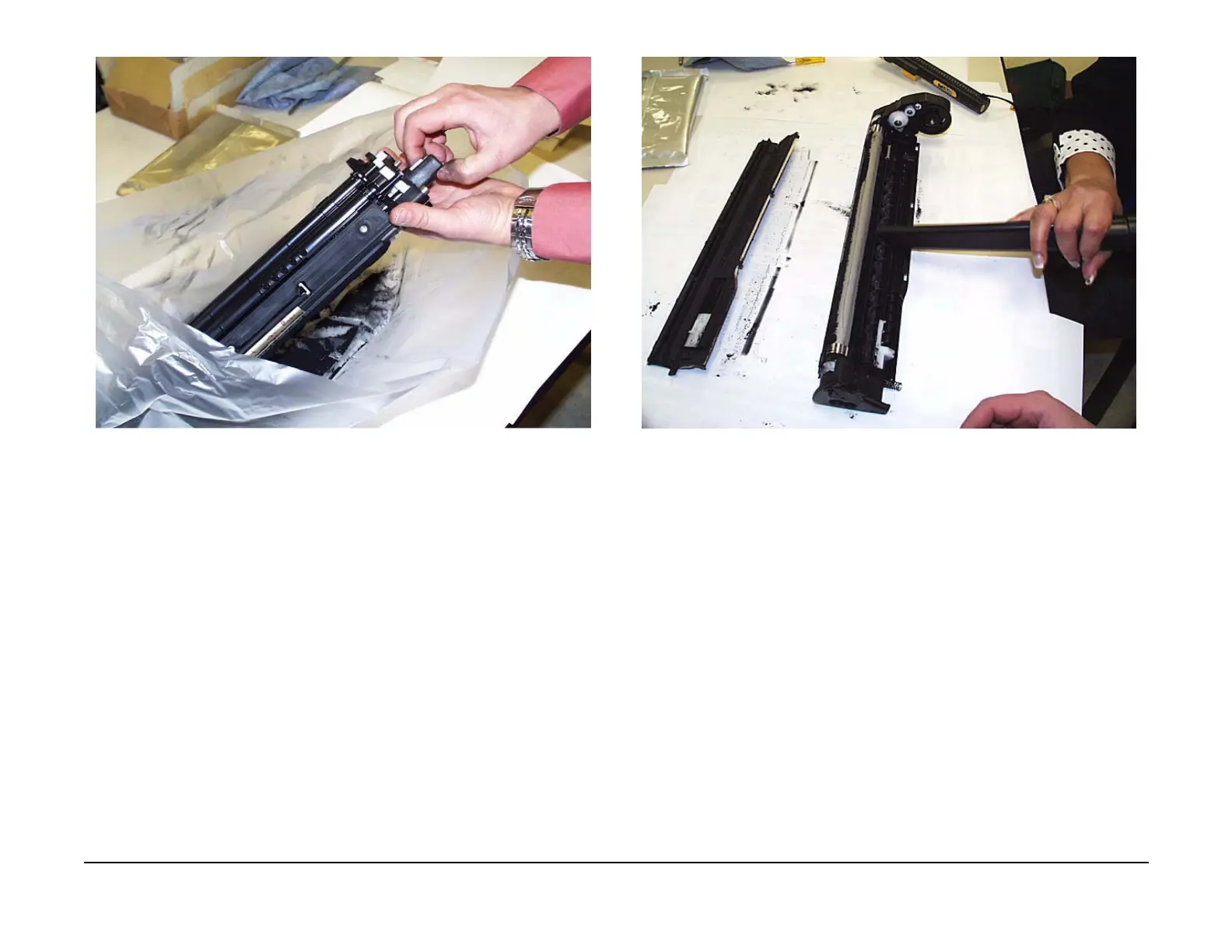

Figure 4 Dumping the Developer Material
8. Vacuum the augers, mag roll and inner surfaces of the Developer Housing. (Figure 5)
Figure 5 Vacuuming the Developer Housing
9. Pour the new Developer Material into the Developer Housing using a back and forward
motion while rotating the Mag Roll. (Figure 6)
