3 Short-Range Comms & IoT Mode
3.8 SEM Measurement
MSR, LTE-Advanced FDD/TDD and 5G NR

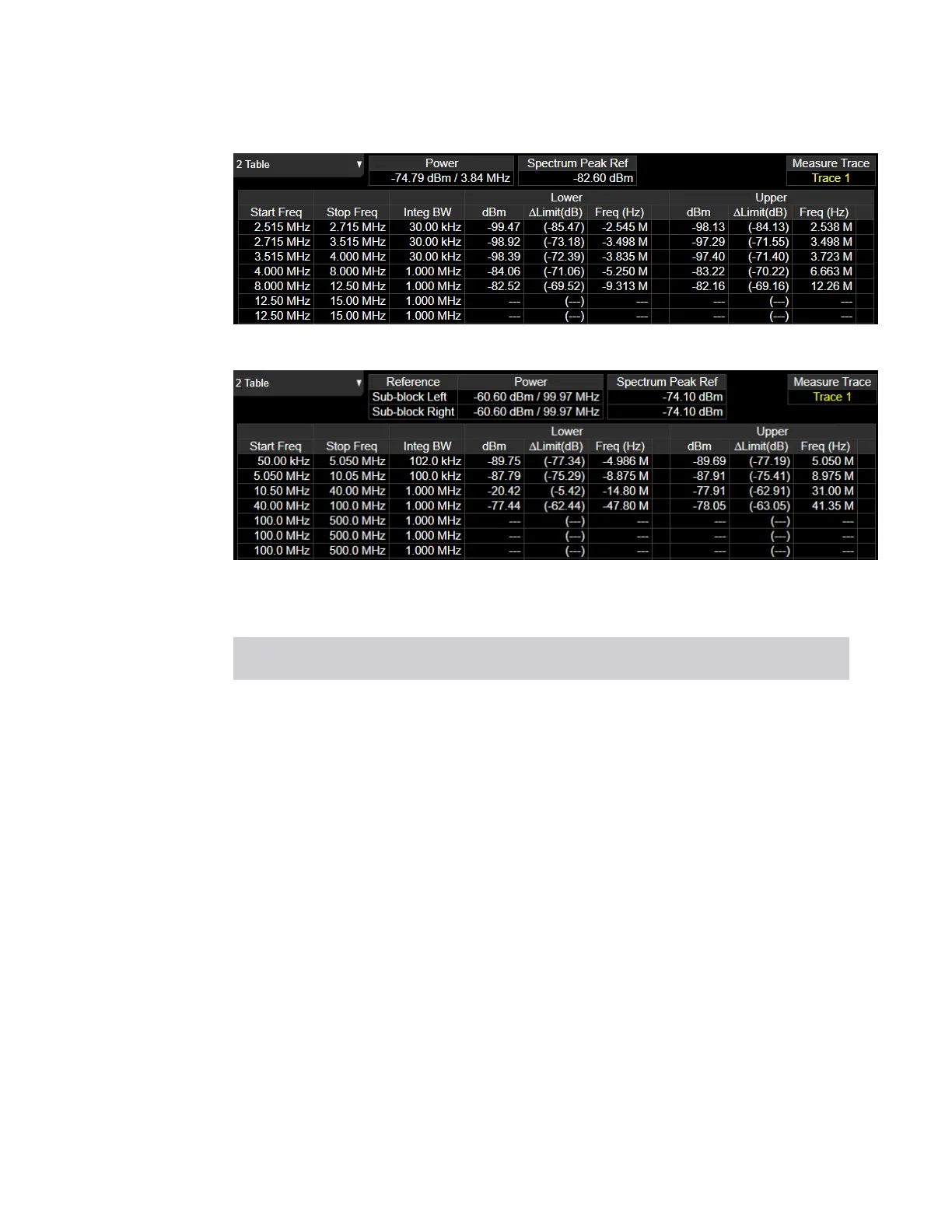

Table Window in Rel Pwr Freq View
Name (Measurement
Type)
Unit, if any Corresponding Results
Power n = 1 2nd element
Absolute power at the reference area
Reference In multi-carrier applications, this column displays
which carrier is reference carrier
PSD Ref n=5 1st element
Power spectral density reference at the reference
area
Spectrum Peak Ref n = 5 1st element
Spectrum peak power reference at the reference
area
Measure Trace See "Measure Trace" on page 1508
Start Freq Hz Start frequency for offset
Stop Freq Hz Stop frequency for offset
Integ BW Hz Measurement bandwidth for offset
Lower Peak (Total Pwr
Ref, Spectrum Pk Ref)
dBc (Total Pwr
Ref)
dB (Spectrum
Pk Ref)
Relative peak power on minimum margin point of the
negative offset
1030 Short Range Comms & IoT Mode User's &Programmer's Reference
