6.5 Corrections
Dependencies If either the first or last point in the array is outside the frequency range of the current input, an error
message is generated:
“-221. Settings conflict; Start or Stop Freq out of range for current input settings”
6.5.5.8 Delete Correction
Deletes the correction values for this set. When this key is pressed, a prompt
appears on the screen saying “Please press Enter or OK key to delete correction.
Press ESC or Cancel to close this dialog.” The deletion is only performed if you press
OK or Enter.
Remote Command
[:SENSe]:CORRection:CSET[1]|2|…|16:DELete
Example
:CORR:CSET:DEL
:CORR:CSET1:DEL
:CORR:CSET4:DEL
Notes Pressing this key when no corrections are present is accepted without error

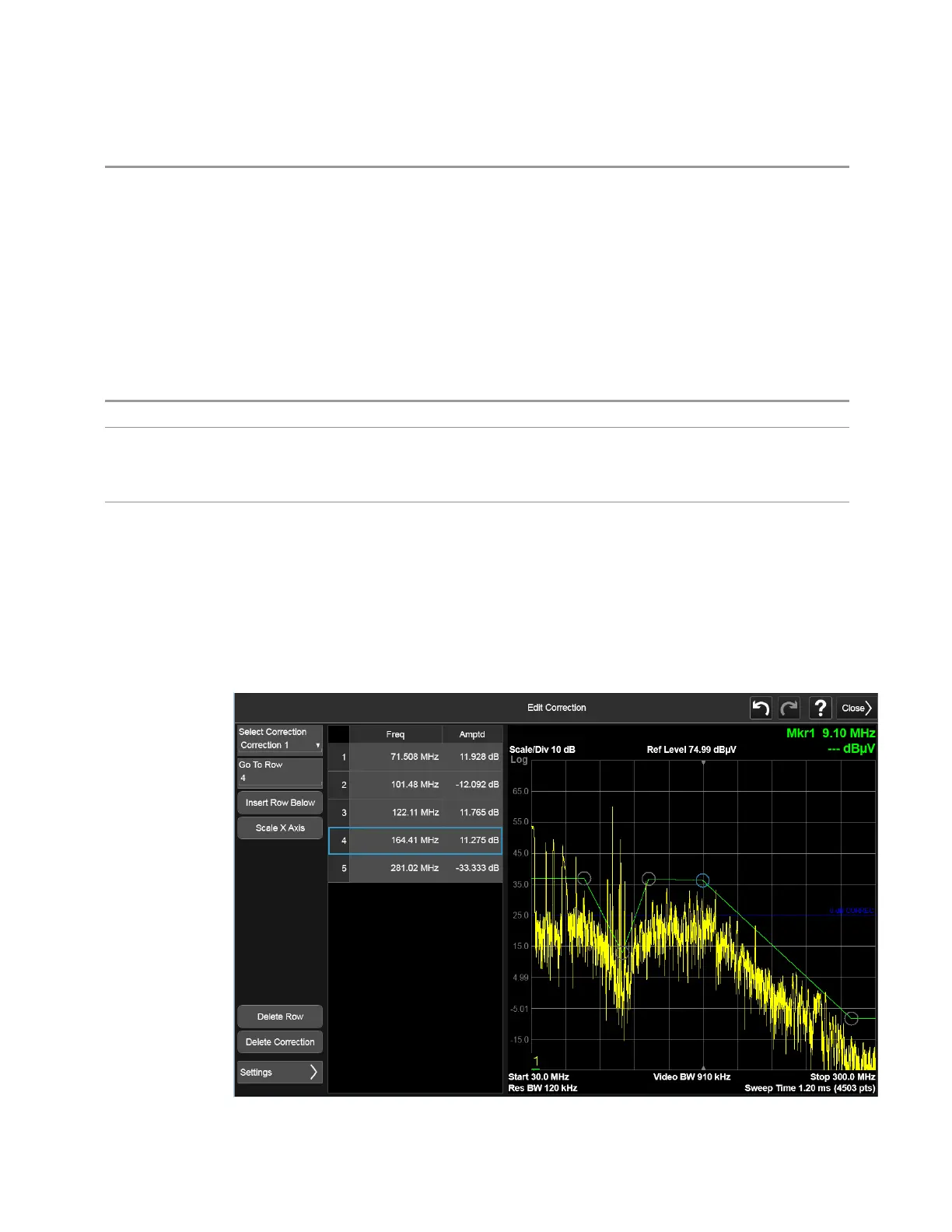

6.5.5.9 Correction Graph
The Correction Graph embedded in the Edit Correction dialog lets you edit the
Amplitude Correction visually. Each node in the Correction is represented by a gray
circle. The current node has a blue outline in the table and a blue circle in the graph.
Touch any circle and drag it where you want it to go.
2121 Short Range Comms & IoT Mode User's &Programmer's Reference
